Weidmüller
Through clamps WDU

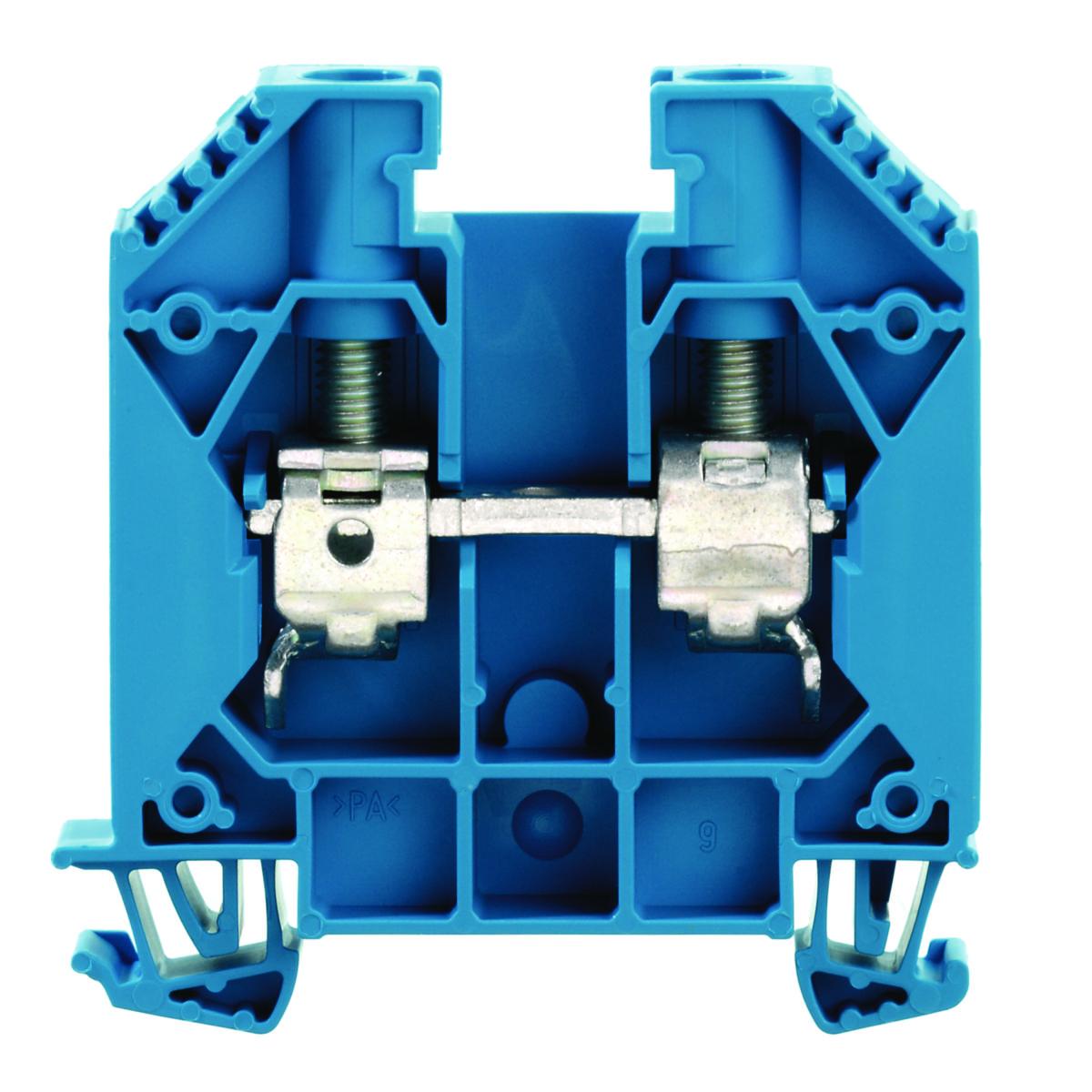

TERMINAL A WDU 16/ZA BL 1028980000
Article number: Suppl. article no:
2919646
1028980000
to see price and stock
Wemid insulation material
• Creeping current resistant CTI 600
• Temperature-resistant up to 120°C
• Inflammability class V0 according to UL 94
• Halogen and phosphorus free flame retardants
WDU 1,5 ZZ has four connections and WDU 2,5/1,5 ZR has three connections 1 pc 2.5 mm² and 2 pcs 1.5 mm².
• Creeping current resistant CTI 600
• Temperature-resistant up to 120°C
• Inflammability class V0 according to UL 94
• Halogen and phosphorus free flame retardants
WDU 1,5 ZZ has four connections and WDU 2,5/1,5 ZR has three connections 1 pc 2.5 mm² and 2 pcs 1.5 mm².
- Article number: 2919646
- Suppl. article no: 1028980000
- Ean no: 4008190086015
- Material class QN0200
Technical data
- Packagin Size: 1 PCS/50 PCS
- Type: WDU 16/ZA
- Colour: Blue
- Connectable conductor cross section multi-wired: 1.5-25 mm²
- Rated current In: 76 A
- Rated voltage: 1000 V
- Width/grid dimension: 11.9 mm
- Connectable conductor cross section solid-core: 1.5-16 mm²
- Connectable conductor cross section fine-strand with cable end sleeve: 1.5-16 mm²
- Type of electrical connection 1: Screw connection
- Number of levels: 1
- Number of clamp positions per level: 2
- Mounting method: DIN rail (top hat rail) 35 mm
- Material insulation body: Thermoplastic
- Closing plate required: Yes
- Internally connected stages: No
- Connectable conductor cross section fine-strand without cable end sleeve: 1.5-25 mm²
- Operating temperature: -60-130 °C
- Inflammability class of insulation material according to UL94: V0
- Explosion-tested version 'Ex e': Yes
- Width: 11.9 mm
- Depth: 62.5 mm
- Height: 60 mm
- Length: 60 mm
- Connection position: Sideways
- REACH Date: 2022-10-28
- REACH Information obligation: No
