Schneider Electric

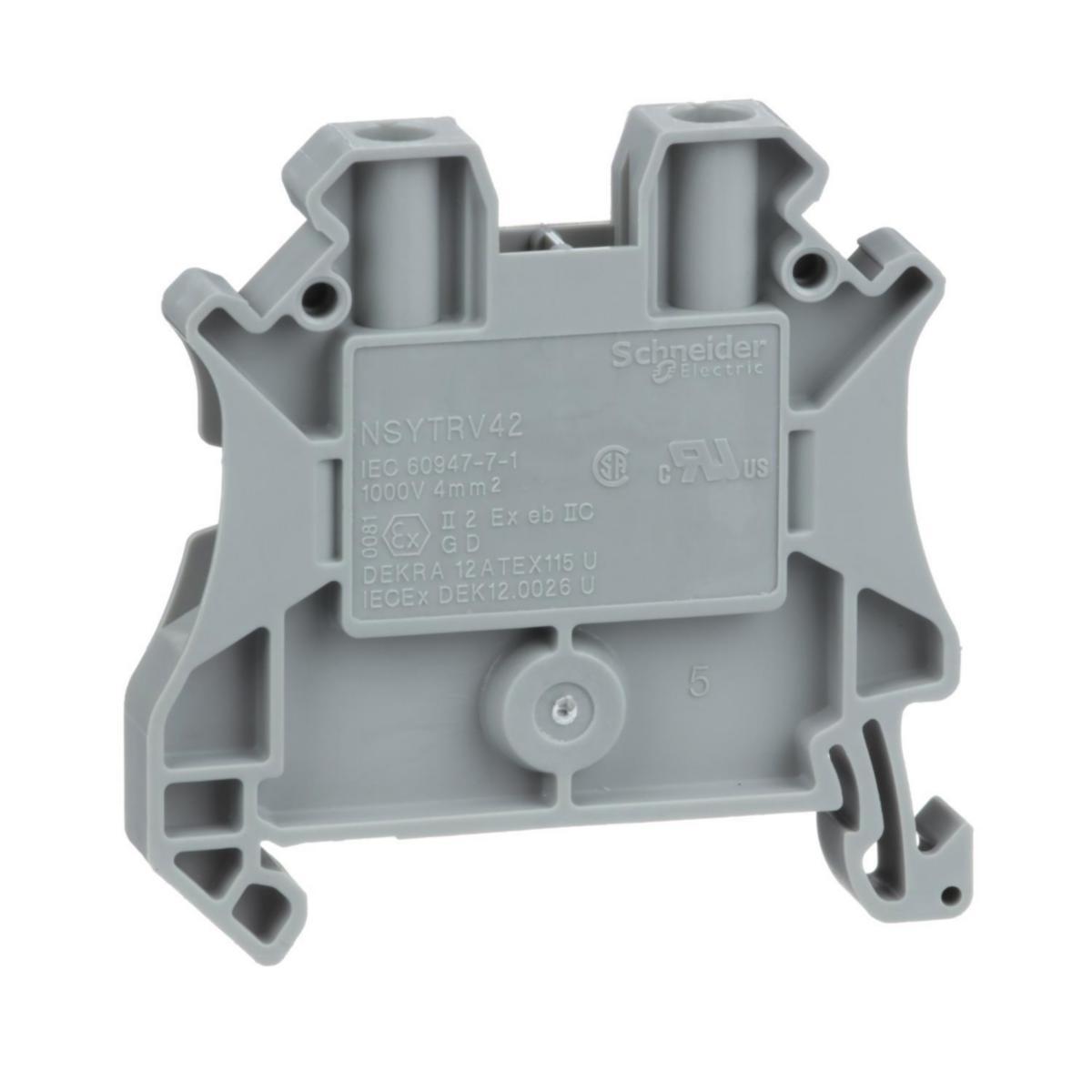

Terminal block NSYTRV
SCREW TERM FEEDTHR 2PTS 4MM² NSYTRV42
Article number: Suppl. article no:
2916254
NSYTRV42
to see price and stock
Gray and blue
- Article number: 2916254
- Suppl. article no: NSYTRV42
- Ean no: 3606480531897
- Material class QN0830
Technical data
- Packagin Size: 1 ST/50 ST/12100 ST
- Colour: Grey
- Connectable conductor cross section multi-wired: 0.14-6 mm²
- Rated current In: 32 A
- Rated voltage: 1000 V
- Width/grid dimension: 6.2 mm
- Connectable conductor cross section solid-core: 0.14-6 mm²
- Connectable conductor cross section fine-strand with cable end sleeve: 0.2-4 mm²
- Type of electrical connection 1: Screw connection
- Type of electrical connection 2: Screw connection
- Number of levels: 1
- Number of clamp positions per level: 2
- Mounting method: DIN rail (top hat rail) 35 mm
- Material insulation body: Thermoplastic
- Closing plate required: Yes
- Internally connected stages: No
- Connectable conductor cross section fine-strand without cable end sleeve: 0.14-6 mm²
- Operating temperature: -40-130 °C
- Inflammability class of insulation material according to UL94: V0
- Explosion-tested version 'Ex e': Yes
- Width: 6.2 mm
- Depth: 47.7 mm
- Height: 47.5 mm
- Suitable for conductor material: Aluminium/copper
- Length: 47.7 mm
- Connection position: Sideways
- REACH Date: 2025-07-18
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 0,0539 kgCO2e/ST
- REACH Information obligation: Yes
