Phoenix Contact

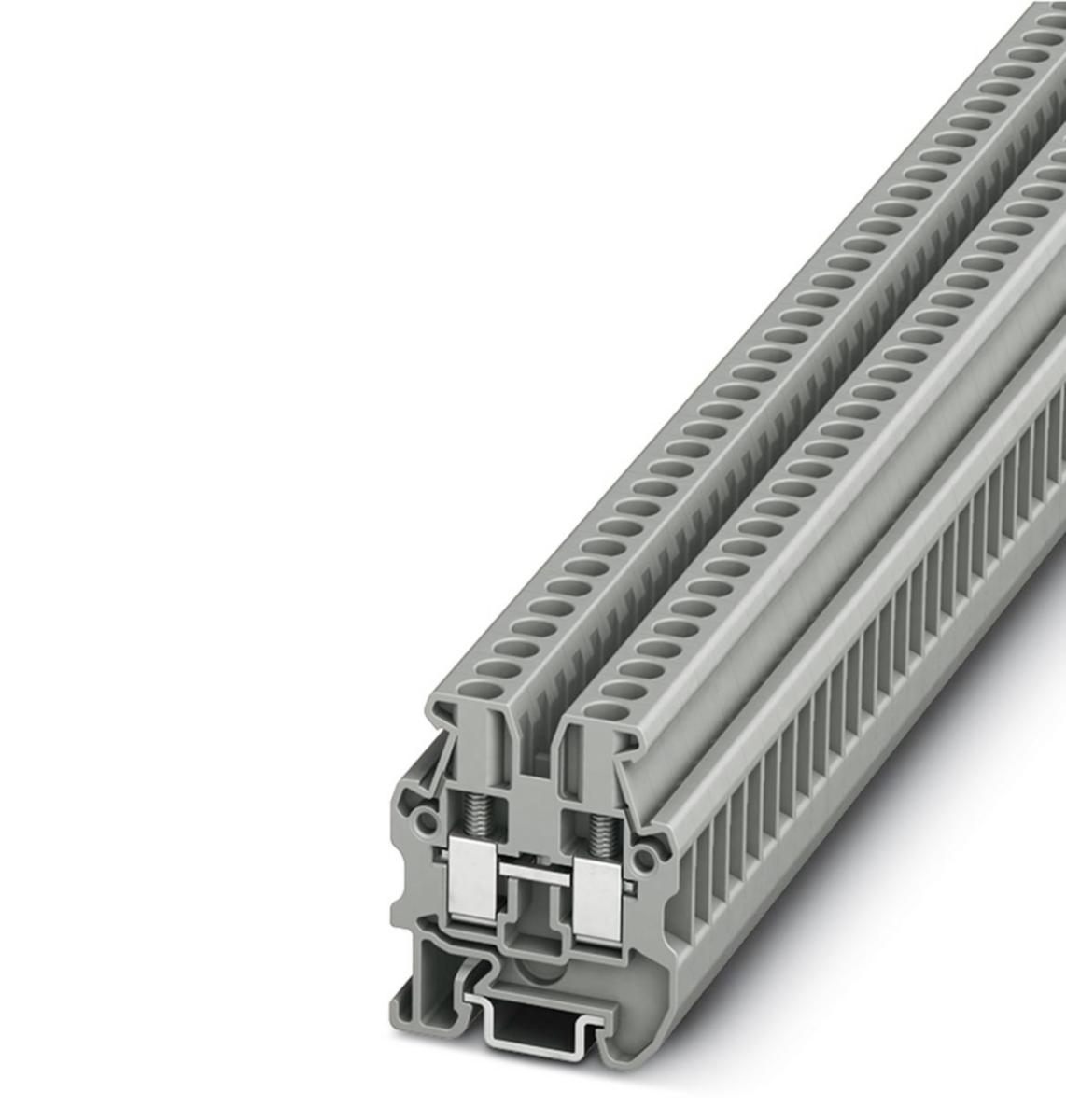

Mini terminal block MUT
MINI TERMINAL BLOCK 2,5MM2 MUT 2.5
Article number: Suppl. article no:
2910714
3248030
to see price and stock
Plinth for mounting on 15 mm rail. Colour: Grey, Blue (BU). Protective line terminals (-PE) Colour: green/yellow
- Article number: 2910714
- Suppl. article no: 3248030
- Ean no: 4046356800761
- Material class QN0600
Technical data
- Packagin Size: 1 PCS/50 PCS
- Type: MUT 2.5
- Colour: Grey
- Connectable conductor cross section multi-wired: 0.2-4 mm²
- Rated current In: 24 A
- Rated voltage: 500 V
- Width/grid dimension: 5.2 mm
- Connectable conductor cross section solid-core: 0.2-4 mm²
- Connectable conductor cross section fine-strand with cable end sleeve: 0.25-2.5 mm²
- Type of electrical connection 1: Screw connection
- Type of electrical connection 2: Screw connection
- Number of levels: 1
- Number of clamp positions per level: 2
- Mounting method: DIN rail (top hat rail) 15 mm
- Material insulation body: Thermoplastic
- Closing plate required: Yes
- Internally connected stages: No
- Connectable conductor cross section fine-strand without cable end sleeve: 0.2-4 mm²
- Inflammability class of insulation material according to UL94: V0
- Explosion-tested version 'Ex e': Yes
- Length: 29.9 mm
- REACH Date: 2022-02-25
- REACH Information obligation: No
