Harting
Inserts Han E

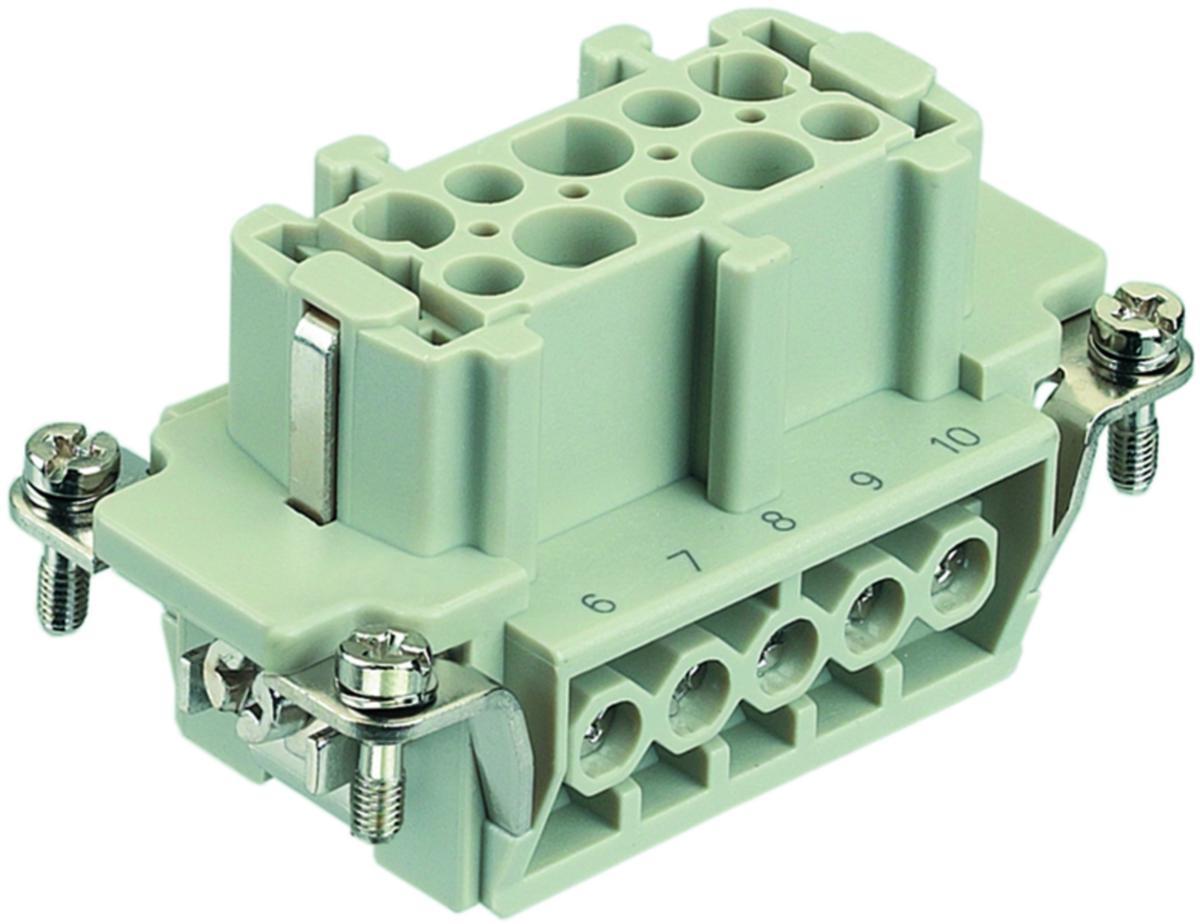

FEMALE INSERT HAN10E SCREW 9330102701
Article number: Suppl. article no:
2938271
09330102701
to see price and stock
The inserts are with screw connections and wire protectors, the contact material is of hard silverplated copper alloy. The inserts have serial numbers on both sides. The inserts mounting screws cannot fall out.
Approval: UL, CSA, SEV, DNV, BVS, CERCHAR, SABS
Wire area: 2.5 mm²
Approval: UL, CSA, SEV, DNV, BVS, CERCHAR, SABS
Wire area: 2.5 mm²
- Article number: 2938271
- Suppl. article no: 09330102701
- Material class QN410B
Technical data
- Type: 0933 010 2701
- Product series: Han E
- Number of poles: 10
- Contact type: Bus
- Material connector insert: Thermoplastic
- Rated current In: 16 A
- Rated voltage: 500 V
- Type of electric connection: Screw connection
- Connectable conductor cross section fine-strand without cable end sleeve: 0.75-2.5 mm²
- Connectable conductor cross section multi-wired: 0.75-2.5 mm²
- With protective conductor: TRUE
- With wire protection: TRUE
- Rated surge voltage: 6 kV
- Pollution degree: 3
- Ambient temperature: -40-125 °C
- REACH contains candidate substances: Bly
- Rated voltage: 600 V
- REACH Date: 2022-07-01
- REACH Information obligation: Yes
