Harting

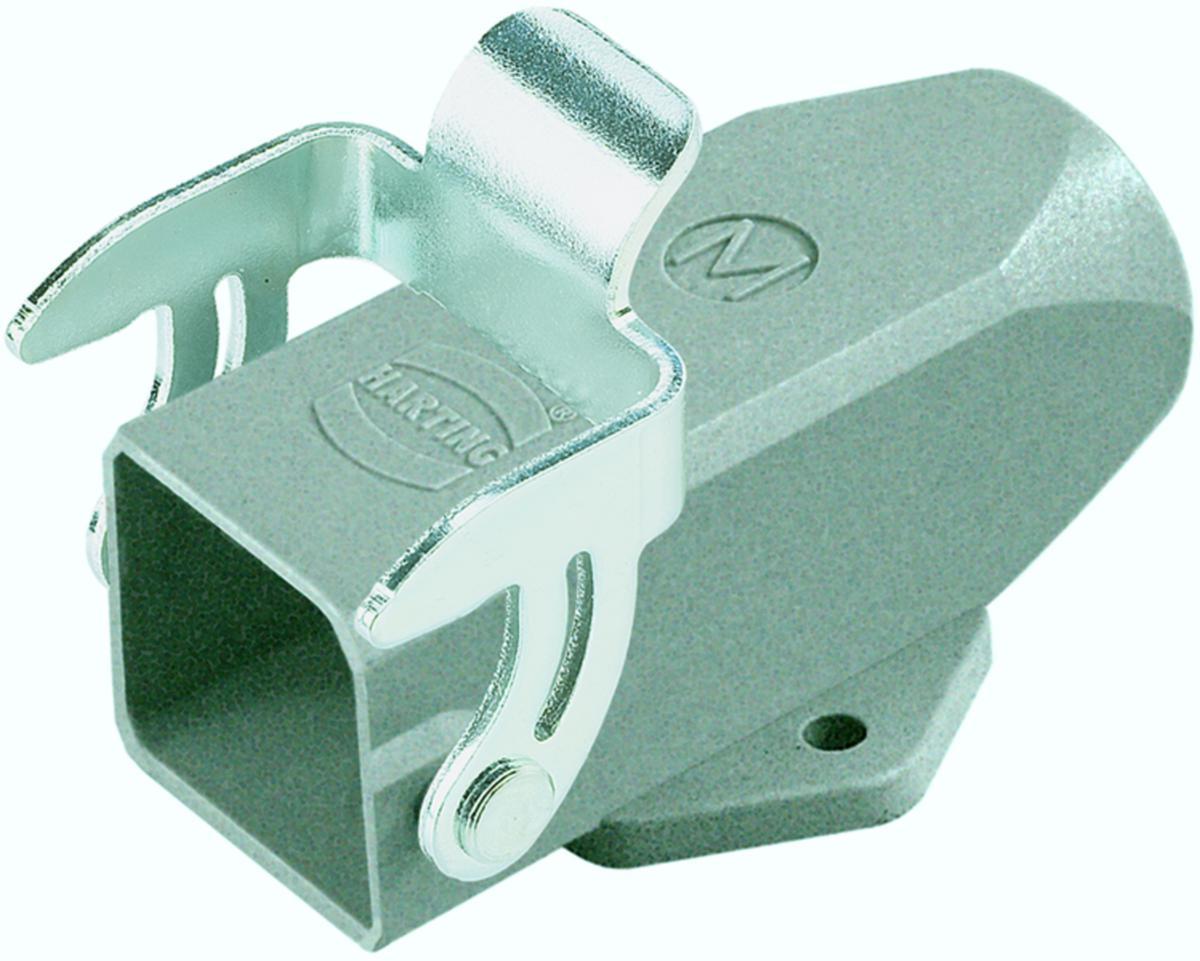

Multi-pole connector, chassis housing
HOUSING HAN3A M20 19200031250
Article number: Suppl. article no:
2938254
19200031250
to see price and stock
The casings are made of die-cast aluminium alloy, powder-lacquered in grey.
Cap lower parts for 10, 16 and 24 poles are equipped with two lock braces and 6 or respectively 48 poles - with longitudinal lock braces.
Approval: UL, CSA, SEV, DNV, BVS, CERCHAR, SABS
Wire area: 2.5 mm²
Cap lower parts for 10, 16 and 24 poles are equipped with two lock braces and 6 or respectively 48 poles - with longitudinal lock braces.
Approval: UL, CSA, SEV, DNV, BVS, CERCHAR, SABS
Wire area: 2.5 mm²
- Article number: 2938254
- Suppl. article no: 19200031250
- Material class QN410B
Technical data
- Type: 1920 003 1250
- Type of locking: Single locking lever
- Type of housing: Socket case
- Position of the shackle: Base unit
- Position cable feed: Atop
- Housing material: Zinc
- Operating temperature: -40-125 °C
- Width: 41 mm
- Height: 27 mm
- Coating housing: Powder coating
- Corrosion resistant: TRUE
- Degree of protection (IP), mounted: IP67
- UV resistant: TRUE
