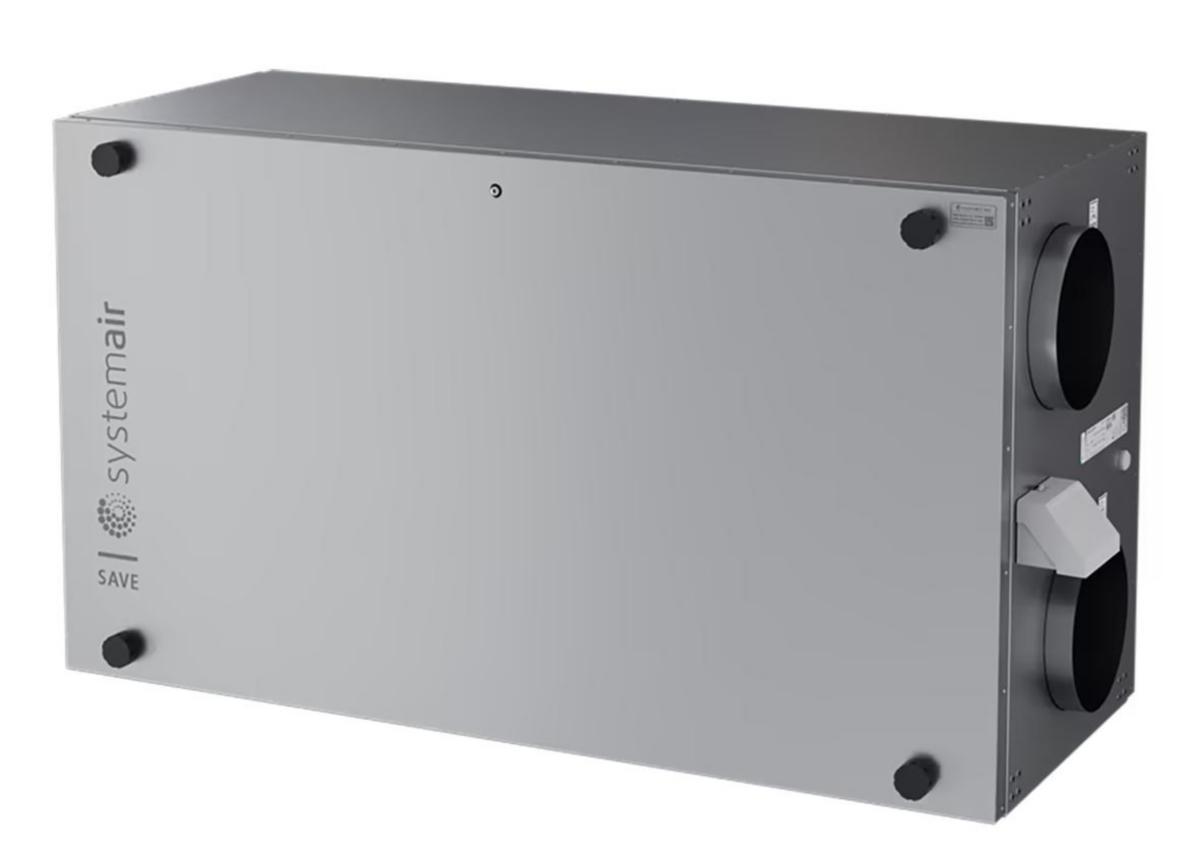

AHU SAVE VSR 400 RIGHT/LEFT, SYSTEMAIR
Article number: Suppl. article no:
19063166
488881
to see price and stock
SAVE VSR 300 air treatment unit for side connection of ducts Energy recovery is done by means of a rotary heat exchanger and with a basic flow adapted for housing up to about 240 m².
An infinite EC motor drives the rotary heat exchanger for optimization of efficiency and temperature requirements and makes it possible to select the function, limited moisture return from exhaust air to supply air. The unit has a built-in electric heater as standard. The unit comes with special bag filters with low pressure drop. Supply air files class F7 / ePM10 80% and extract air filters class G3 / Coarse 60% as standard, as well as external SAVE control panel with a capacitive display for control, monitoring and commissioning (6m modular cable). Maximum airflow is set at 100 Pa.
An infinite EC motor drives the rotary heat exchanger for optimization of efficiency and temperature requirements and makes it possible to select the function, limited moisture return from exhaust air to supply air. The unit has a built-in electric heater as standard. The unit comes with special bag filters with low pressure drop. Supply air files class F7 / ePM10 80% and extract air filters class G3 / Coarse 60% as standard, as well as external SAVE control panel with a capacitive display for control, monitoring and commissioning (6m modular cable). Maximum airflow is set at 100 Pa.
- Article number: 19063166
- Suppl. article no: 488881
- Material class PNK201
Technical data
- Air volume at 100 Pa: 170 l/s
- Width: 490 mm
- Length: 1263 mm
- Height: 680 mm
- Nominal current: 13 A
- Voltage: 230 V
- Weight: 80 kg
- Filter class ePM10: 50%
- Insulation thickness: 50 mm
- Additional electrical heating: 1.67 kW
- Air connection diameter: 200 mm
- Energy efficiency class: A
