Exterior Wall Fan RVF, System Air
EXTERIOR WALL FAN RVF 100 M SYSTEMAIR
Article number: Suppl. article no:
6511001
1254
to see price and stock

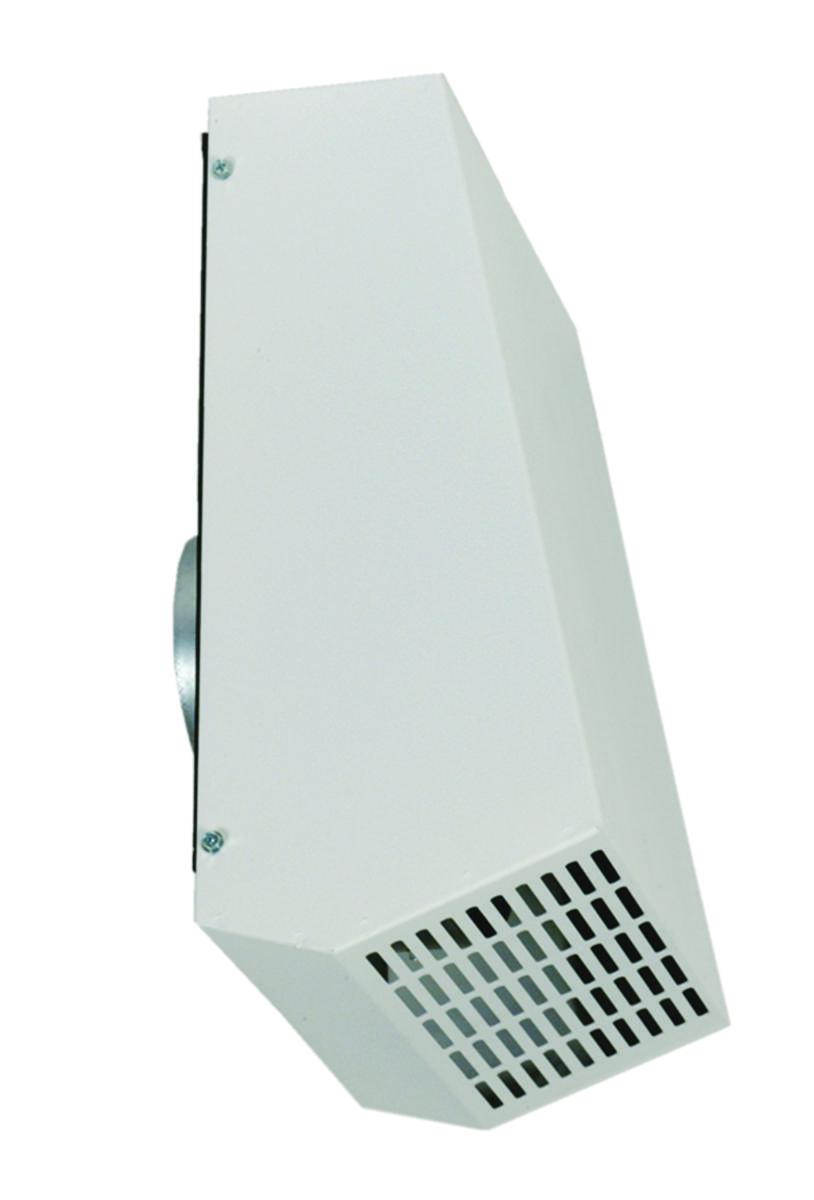

RVF is an exhaust air fan for placing on exterior wall. The unit consists of fan wheel and backwards bent blades and a protective cover in white, powder-coated galvanised plate. Voltage adjustable. For placement on the outside wall. Appropriate in the event of lack of space. Voltage: 230V 50Hz.
- Article number: 6511001
- Suppl. article no: 1254
- Material class PNL10B
Technical data
- Packagin Size: 1 ST/30 ST
- Duct diameter: 100 mm
- Max air flow: 55.5 l/s
- Power consumption: 0.028 kW
- Current: 0.16 A
- Degree of protection (IP): IP44
- Connection voltage: 230 V
- Width: 255 mm
- Height: 333 mm
- Deep: 152 mm
- Colour: White
- Voltage feed: 230 V
