Pax

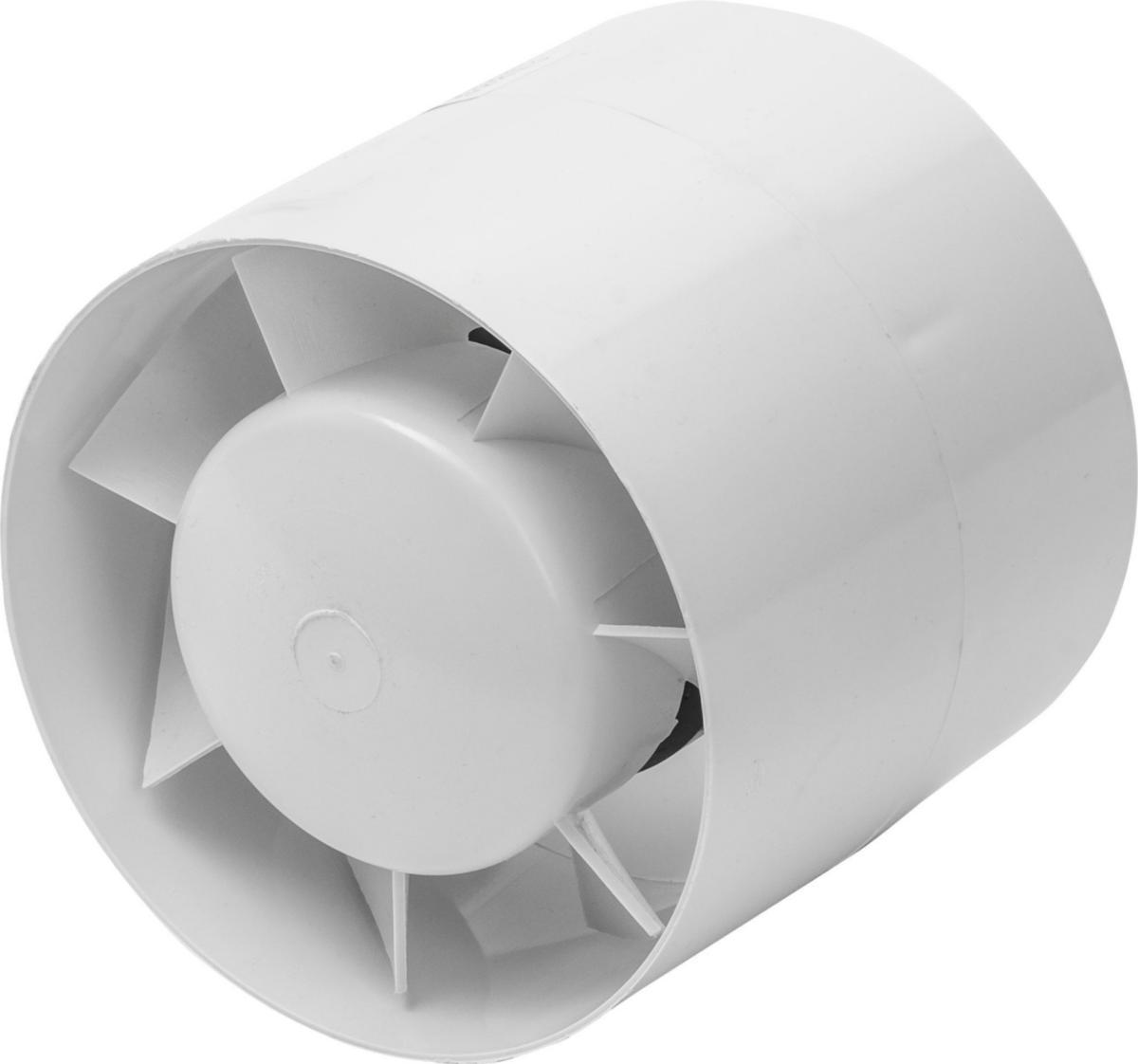

Viaduct 100s Duct fan
DUCT FAN VIADUCT 100S BALL BEARING MOTOR
Article number: Suppl. article no:
9302330
1903-1
to see price and stock
Flexible duct fan for mounting in ventilation ducts with inside diameter of at least Ø100mm. Equipped with ball bearing motor, which allows both horizontal and vertical positioning. Perfect for the ducts at wall/wall and roof/wall intersections. Can be combined with external controls.
- Article number: 9302330
- Suppl. article no: 1903-1
- Ean no: 7391477190312
- Replaces art.nbr: 9302380
- Material class QX7600
Technical data
- Packagin Size: 1 ST/10 ST/10 ST/140 ST
- Type: Viaduct 100s Duct fan
- Nominal power: 0.015 kW
- Volume flow: 97 m³/h
- Degree of protection (IP): IP44
- Duct width: 100 mm
- Weight: 500 g
- Medium temperature: 0-40 °C
- Rated voltage: 230 V
- Housing material: Plastic
- Duct height: 100 mm
- Mains frequency: 50 Hz
- Direction: Axial
- REACH Date: 2021-09-10
- Information: Free-blowing 137 M3/h, 3 m, double-insulated, CE
- REACH Information obligation: No
