Dräco

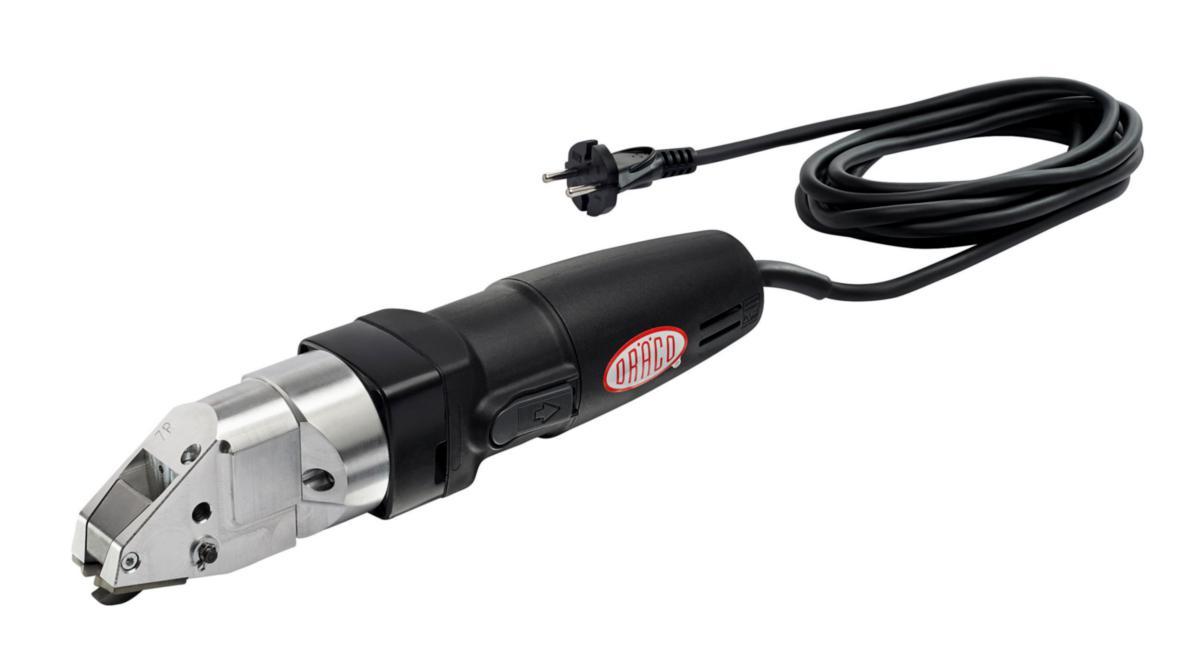

Metal Shears Dräco 3514-7R
SHEARS DRÄCO 3514-7R 500W M.R 45MM SPIRO 90MM 61080
Article number: Suppl. article no:
5167440
270807
to see price and stock
Strain-free and chamfer free cut thanks to the fact that the machine rolls up with 7mm breadth. Biggest cutting capacity in mm; 2 mm. Least cutting radium 45mm.
- Article number: 5167440
- Suppl. article no: 270807
- Ean no: 4250959653017
- Material class TC230B
Technical data
- Packagin Size: 1 ST/10 ST
- Current supply: Mains
- Nominal power consumption: 500 W
- Voltage: 230 V
- Lowest radius: 45 mm
- Cutting speed: 7 m/min
- Max. material thickness in steel 400 N/mm²: 2.0 mm
- Max. material thickness in steel 600 N/mm²: 1.5 mm
- Max. material thickness in steel 800 N/mm²: 1.3 mm
- Max. material thickness in aluminium 250 N/mm²: 3.0 mm
- Machine weight: 2 kg
