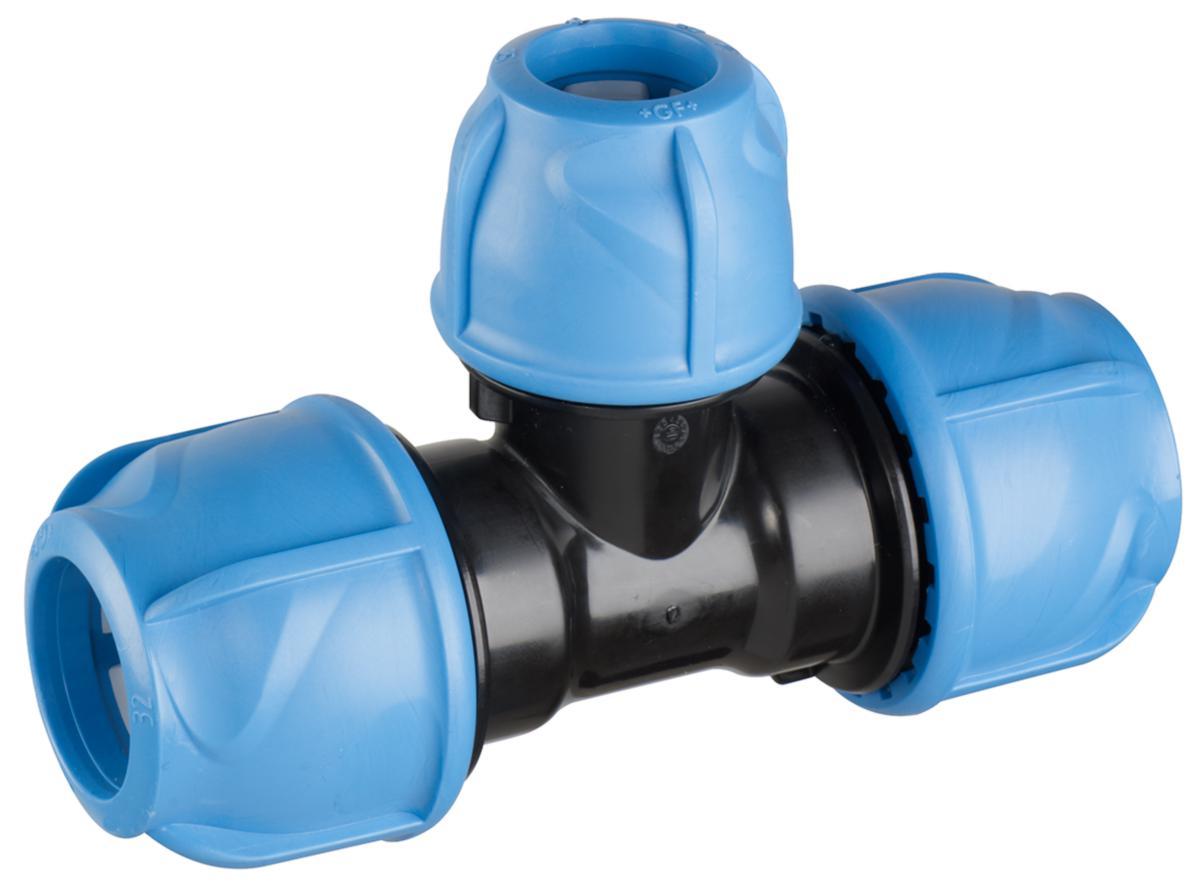

AHL T-coupling 90° reduced
25X20X25 AHL T-COUPLING
Article number: Suppl. article no:
2440731
158400232
to see price and stock
Compression coupling for PE pipes made of PP, compression ring of POM, sealing ring of EPDM and external brass thread. Max pressure PN16 at 20˚C.
- Article number: 2440731
- Suppl. article no: 158400232
- Ean no: 8025351007876
- Material class PMN010
Technical data
- Packagin Size: 1 ST/10 ST
- Outer pipe diameter connection 1: 25 mm
- Outer pipe diameter connection 2: 20 mm
- Outer pipe diameter connection 3: 25 mm
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- Max. operating pressure at 20 °C: 16
- Angle: 90 °
- Reducing: Yes
- With buffer stud: Yes
- With sealing rings/gaskets: Yes
- Connection 1: Compression ring
- Connection 2: Compression ring
- Connection 3: Compression ring
- Model: T-piece
- Norm: SITACnr 0262-11
- Dimension other: 25x20x25 mm
