Manhole cover, rectangular with grid, a-collection
315 STORMW. MANHOLE COVER GRID SQUARE, A-COLLECTION
Article number:
6585281
to see price and stock
Grid cover for 315 mm telescopic tube. With grooves for installation of telescopic tubes with knobs.
- Article number: 6585281
- Ean no: 7333123914439
- Replaces art.nbr: 19036204
- Material class PMJ380

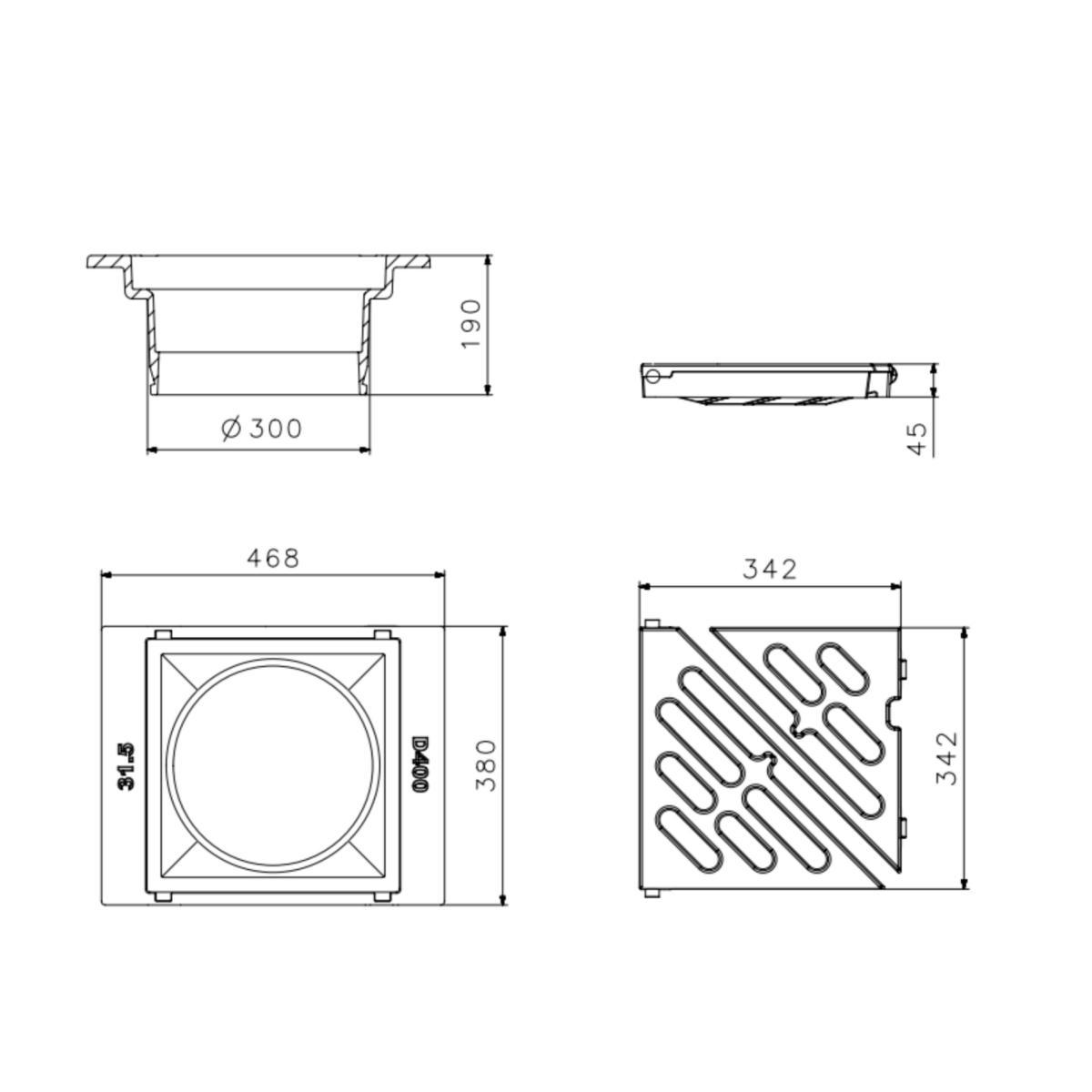

Technical data
- Packagin Size: 1 ST/24 ST
- Material: Cast iron
- Material quality: Ductile cast iron
- Load class according to EN 1433: D-400
- Connection diameter: 315 mm
- Interlockable: Yes
- With cover: No
- Width: 380 mm
- Height: 190 mm
- Length: 468 mm
- With grid: Yes
- Connection shape: Round
- Material grid: Cast iron
- Shape of grid: Square
