Valve pipe Durgo-2 - VALVE MANIFOLD DURGO DN25/28MM NON-RETURN VACUUM VALVE VR2
/external-assets/JPEGlarge800_800/23/39/ProductImage71332339.jpg
/external-assets/JPEGlarge800_800/23/40/ProductImage71332340.jpg

Valve pipe Durgo-2

VALVE MANIFOLD DURGO DN25/28MM NON-RETURN VACUUM VALVE VR2
Article number:
4311338
Suppl. article no:
VR-HFB-CU28/CU28
‌
‌
‌
‌
‌
 to see price and stock
Building Product DeclarationConstruction DeclarationSunda hus: C-REACH Information obligation

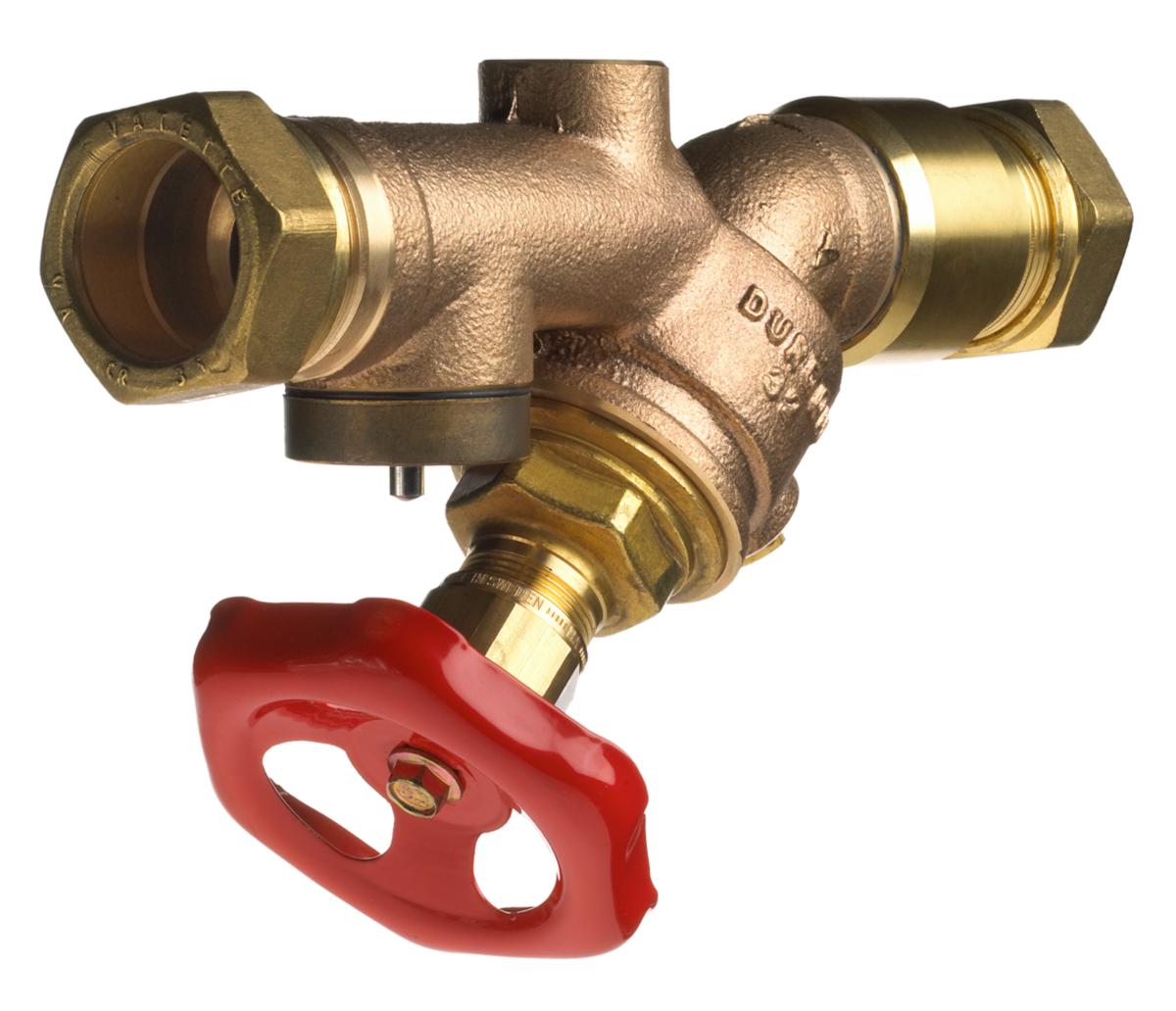

Durgo valve manifold type 2 is a combined shut-off, non-return and vacuum valve with connections for safety and discharge valve.
All valve manifolds have connections to compression ring coupling. The valve manifold is located on the cold water pipe before the water heater.
  • Article number:
    4311338
  • Suppl. article no:
    VR-HFB-CU28/CU28
  • Ean no:
    7392948433839
  • Material class
    PIC120
  • This is an alternative to item
    4311085
Technical data
  • Packagin Size: 1 ST/2 ST
  • Outer pipe diameter all connections: 28 mm
  • Connection: Compression ring
  • Article pressure rating: PN 10
  • With compression set: Yes
  • With siphon: No
  • Stop valve: Yes
  • Design form: Without mixing tap
  • Surface protection: Untreated
  • Housing material: Brass
  • Nominal diameter: 1 inch (25)
  • Working length connection 1: 200 mm
  • Working length connection 2: 200 mm
  • REACH Date: 2022-06-10
  • REACH contains candidate substances: Bly
  • REACH Information obligation: Yes
