Valve pipe VMA213, ESBE - VMA213 VALVE PIPE ESBE PN16 G1/2 KLK15 KVS2,5
Esbe

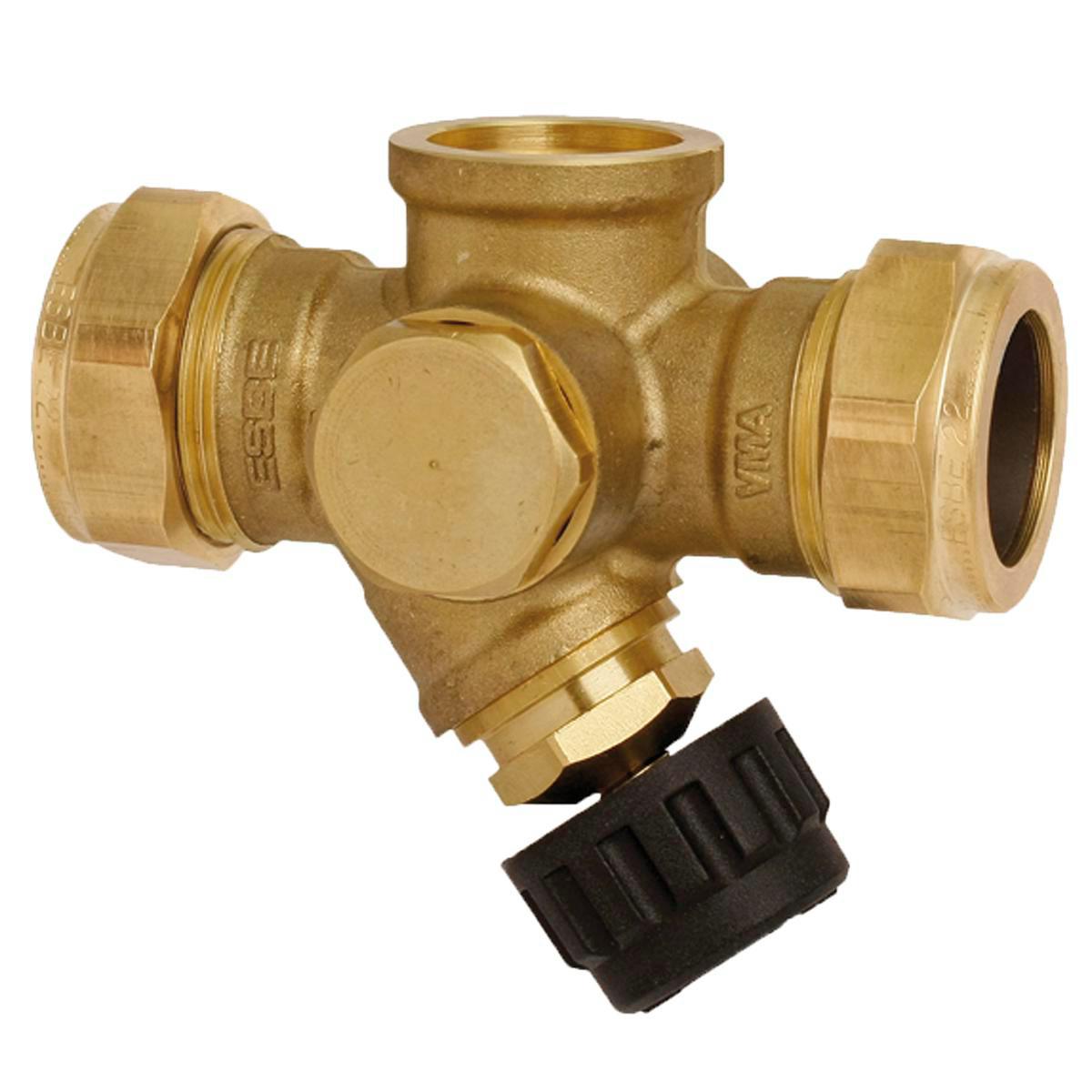

Valve pipe VMA213, ESBE

VMA213 VALVE PIPE ESBE PN16 G1/2 KLK15 KVS2,5
Article number:
4311067
Suppl. article no:
36401000
‌
‌
‌
‌
‌
 to see price and stock
Construction DeclarationREACH Information obligation
Valve manifold with connections for safety valve, drain valve, filling valve and vacuum valve in domestic water installations. The valve pipe has a built-in shutoff function and spring-loaded check valve function with refill protection type EB under EN1717.
  • Article number:
    4311067
  • Suppl. article no:
    36401000
  • Ean no:
    7330193041584
  • Material class
    PIC110
  • This is an alternative to item
    4311092
Technical data
  • Outer pipe diameter all connections: 15 mm
  • Connection: Compression ring
  • Article pressure rating: PN 16
  • With compression set: No
  • With couplers: No
  • With siphon: Yes
  • Stop valve: No
  • Exchangeable non-return valve: No
  • Design form: Without mixing tap
  • Surface protection: Untreated
  • Nominal diameter: DN 15
  • Length of connection 1: 43 mm
  • Length of connection 2: 43 mm
  • Pressure class: PN16
  • REACH Date: 2021-01-19
  • Dimension other: 15 mm
  • REACH contains candidate substances: Bly
  • REACH Information obligation: Yes
