Mechanical T-Grooved Outlet, Red, a-collection

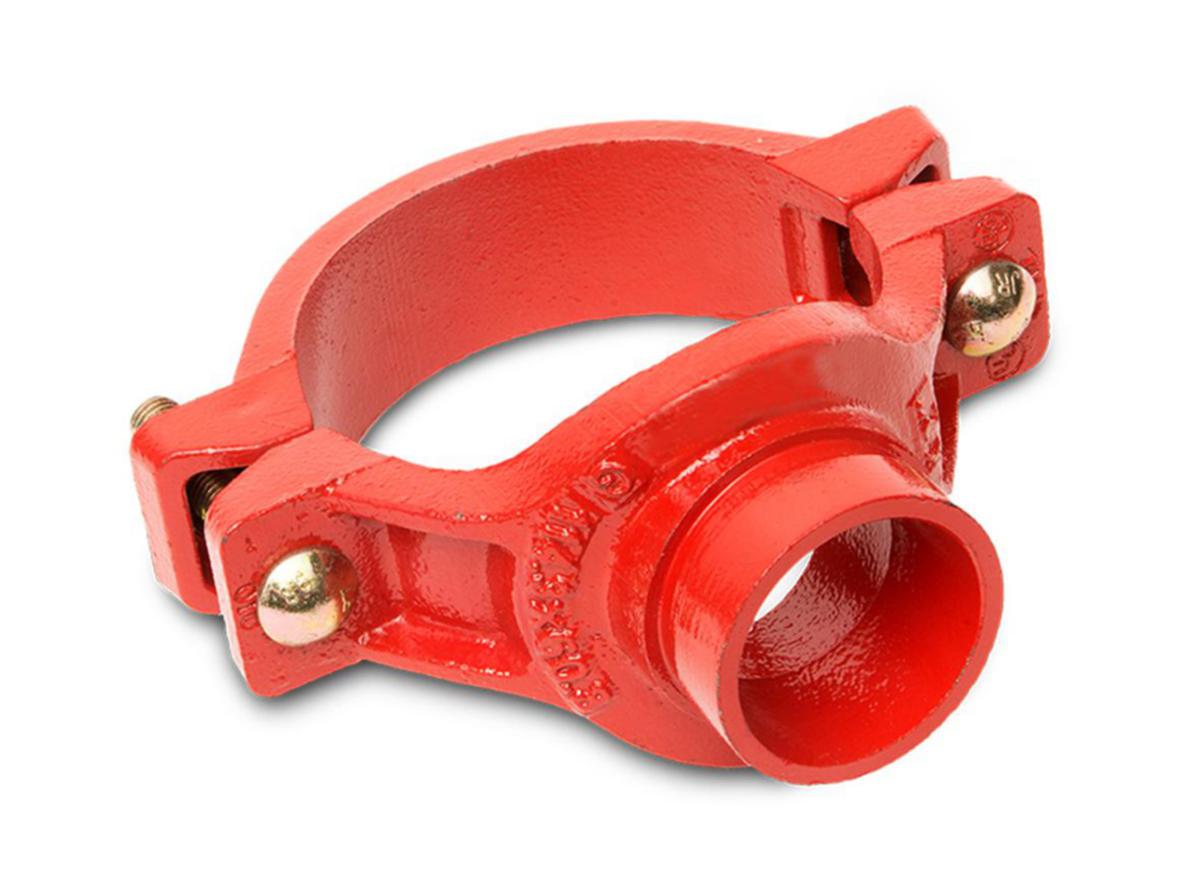

Red Mech. tee grooved outlet DN50XDN40
Article number: Suppl. article no:
1650432V
GMGR2-11/2
to see price and stock
Mechanical T with Groove, (GMG)
Mechanical t-pipe/tapping clamp is used to create an outlet with grooved connection on steel pipe where holes can be drilled. Handles up to 20.7 bar maximum working pressure.
Mechanical t-pipe/tapping clamp is used to create an outlet with grooved connection on steel pipe where holes can be drilled. Handles up to 20.7 bar maximum working pressure.
- Article number: 1650432V
- Suppl. article no: GMGR2-11/2
- Ean no: 7333123075604
- Replaces art.nbr: 1337991
- Material class PJB590
Technical data
- Packagin Size: 1 ST/16 ST/720 ST
- Suitable for pipe diameter: DN 50
- Suitable for outer pipe diameter: 60.3 mm
- Nominal diameter: 1 1/2 inch (40)
- Connection: Groove
- Max. operating pressure at 20 °C: 20.7 bar
- Weight / item: 0.94 kg
- Material: Steel
- Surface protection: Lacquered
- Colour: Red
- Bolt diameter: M10
- Sleeve diameter: 15 mm
- Hole saw diameter: 46 mm
- Torque: 54 Nm
- REACH Date: 2025-06-27
- REACH contains candidate substances: Bis(α,α-dimethylbenzyl) peroxide
- REACH Information obligation: Yes
