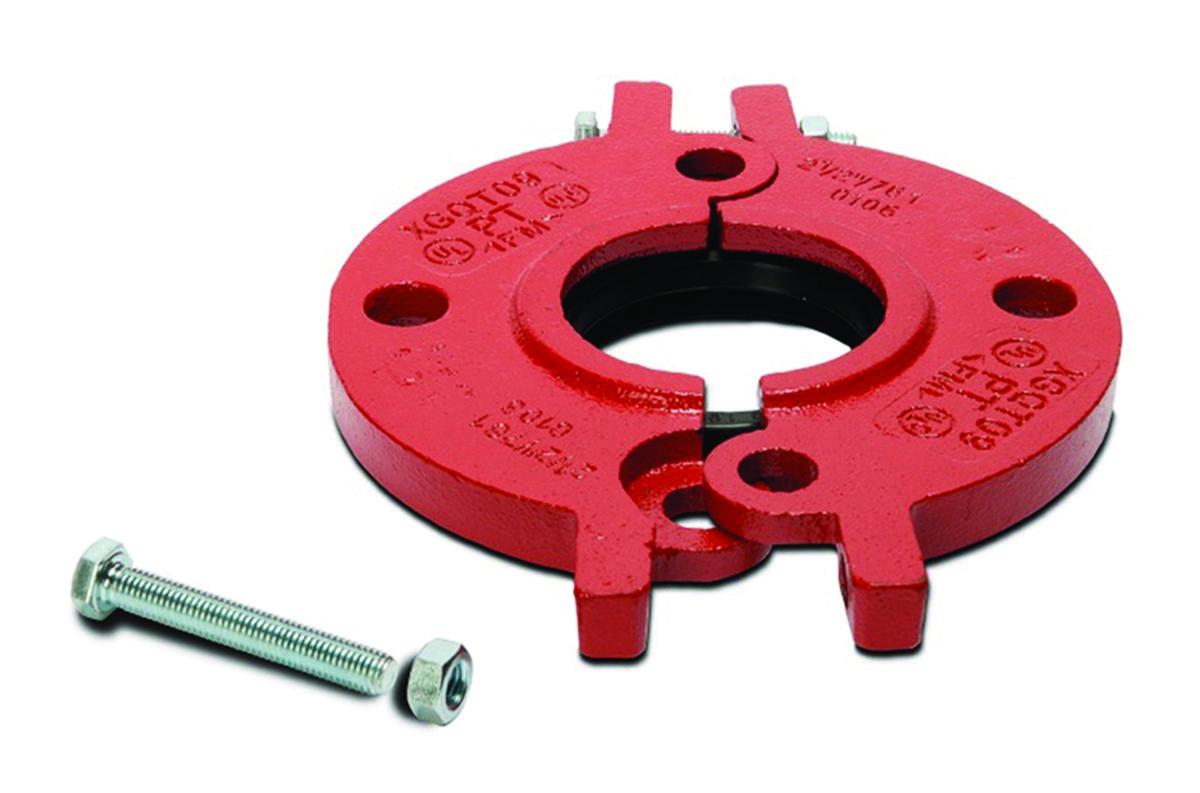

Grooved split flange, Red
Grooved red split adapt flange DN80-PN16
Article number: Suppl. article no:
1654061
GSF16R3
to see price and stock
Split flange (GSF)
To create a transition from flanged pipe systems/components to worn -out systems.
PN 16 (EN 1092-2).
The split flange can handle up to 20.7 bar maximum working pressure.
To create a transition from flanged pipe systems/components to worn -out systems.
PN 16 (EN 1092-2).
The split flange can handle up to 20.7 bar maximum working pressure.
- Article number: 1654061
- Suppl. article no: GSF16R3
- Ean no: 7333123076816
- Replaces art.nbr: 1481079 19039817
- Material class PJB470
Technical data
- Packagin Size: 1 PCS/10 PCS/240 PCS
- Nominal diameter: DN 80
- Pitch circle: 160 mm
- Pipe diameter: 88.9 mm
- Max. operating pressure at 20 °C: 20.7 bar
- Weight: 2.27 kg
- Diameter bolt hole: 17 mm
- Number of bolt holes: 8
- Material: Steel
- Flange compression class: PN 16
- Outer diameter of flange: 200 mm
- Surface protection: Other
- REACH contains candidate substances: Bis(α,α-dimethylbenzyl) peroxide
- REACH Date: 2025-06-27
- REACH Information obligation: Yes
