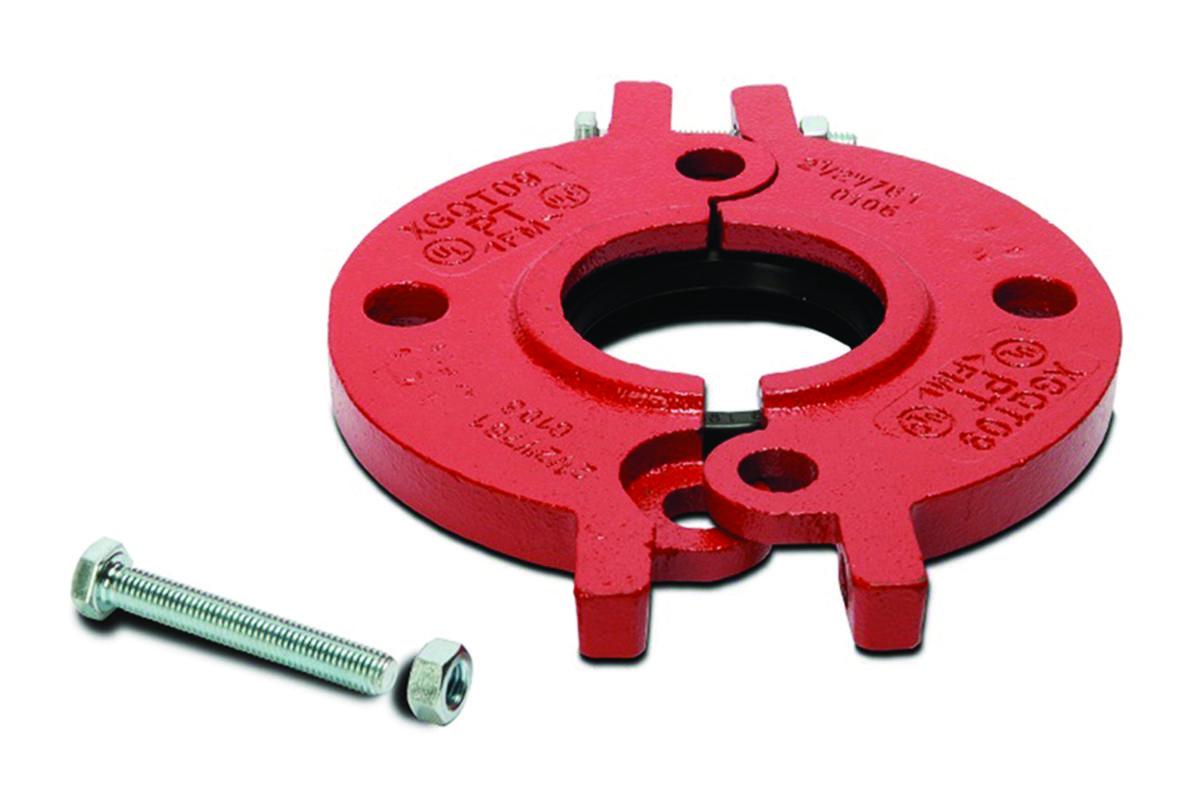

Grooved split flange, Red
Grooved red split adapt flange DN200-PN16
Article number: Suppl. article no:
1654056V
GSF16R8
to see price and stock
Split flange (GSF)
To create a transition from flanged pipe systems/components to worn -out systems.
PN 16 (EN 1092-2).
The split flange can handle up to 20.7 bar maximum working pressure.
To create a transition from flanged pipe systems/components to worn -out systems.
PN 16 (EN 1092-2).
The split flange can handle up to 20.7 bar maximum working pressure.
- Article number: 1654056V
- Suppl. article no: GSF16R8
- Ean no: 7333123076830
- Replaces art.nbr: 1347421 19039820
- Material class PJB470
Technical data
- Packagin Size: 1 PCS/5 PCS/150 PCS
- Nominal diameter: DN 200
- Pitch circle: 295 mm
- Pipe diameter: 219.1 mm
- Max. operating pressure at 20 °C: 20.7 bar
- Weight: 6.00 kg
- Diameter bolt hole: 21 mm
- Number of bolt holes: 12
- Material: Steel
- Flange compression class: PN 16
- Outer diameter of flange: 340 mm
- Surface protection: Other
- REACH contains candidate substances: Bis(α,α-dimethylbenzyl) peroxide
- REACH Date: 2025-06-27
- REACH Information obligation: Yes
