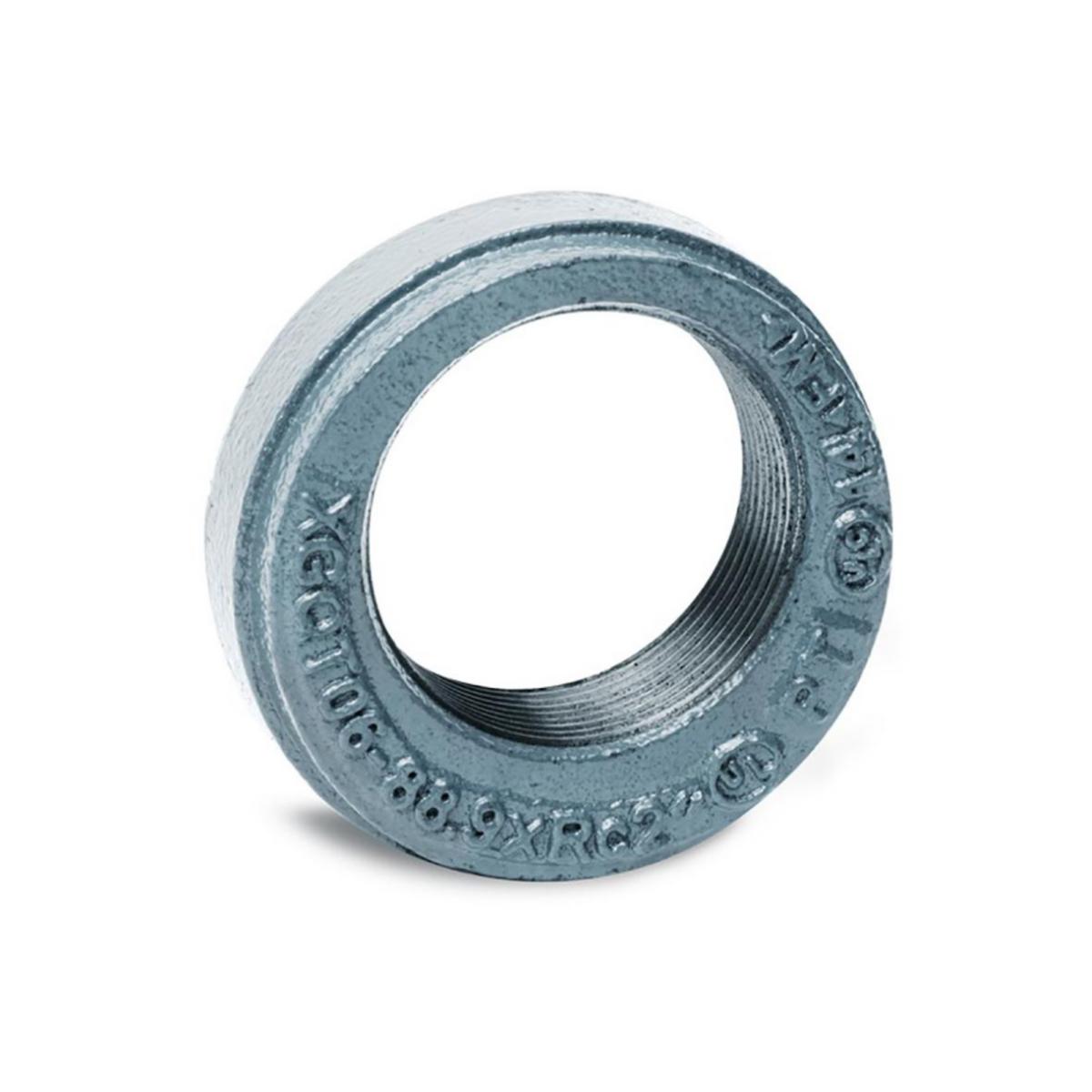

Grooved cap with internal thread, Galvanized
Grooved galv end cap EXC hole DN300XR50
Article number: Suppl. article no:
1356086
GEG12-2
to see price and stock
Cap with internal thread. Pipe fittings (GB, GT, GRC, GE, GRTR)
Used to make direction changes in grooved pipe systems.
The pipe parts can handle up to 20.7 bar maximum working pressure.
Used to make direction changes in grooved pipe systems.
The pipe parts can handle up to 20.7 bar maximum working pressure.
- Article number: 1356086
- Suppl. article no: GEG12-2
- Replaces art.nbr: 19055467
- Material class PJB540
Technical data
- Packagin Size: 1 PCS/5 PCS
- Nominal diameter connection 1: DN 300
- Nominal diameter connection 2: DN 50
- Outer pipe diameter connection 1: 323.9 mm
- Outer pipe diameter connection 2: 60.3 mm
- Max. operating pressure at 20 °C: 20.7 bar
- Weight / item: 4.95 kg
- Connection 1: Groove
- Connection 2: Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
- Material connection 1: Steel
- Material connection 2: Steel
- Surface protection connection 1: Hot-dip galvanised
- Surface protection connection 2: Hot-dip galvanised
- Shape: Straight
- Reducing: Yes
- Length: 30.2 mm
