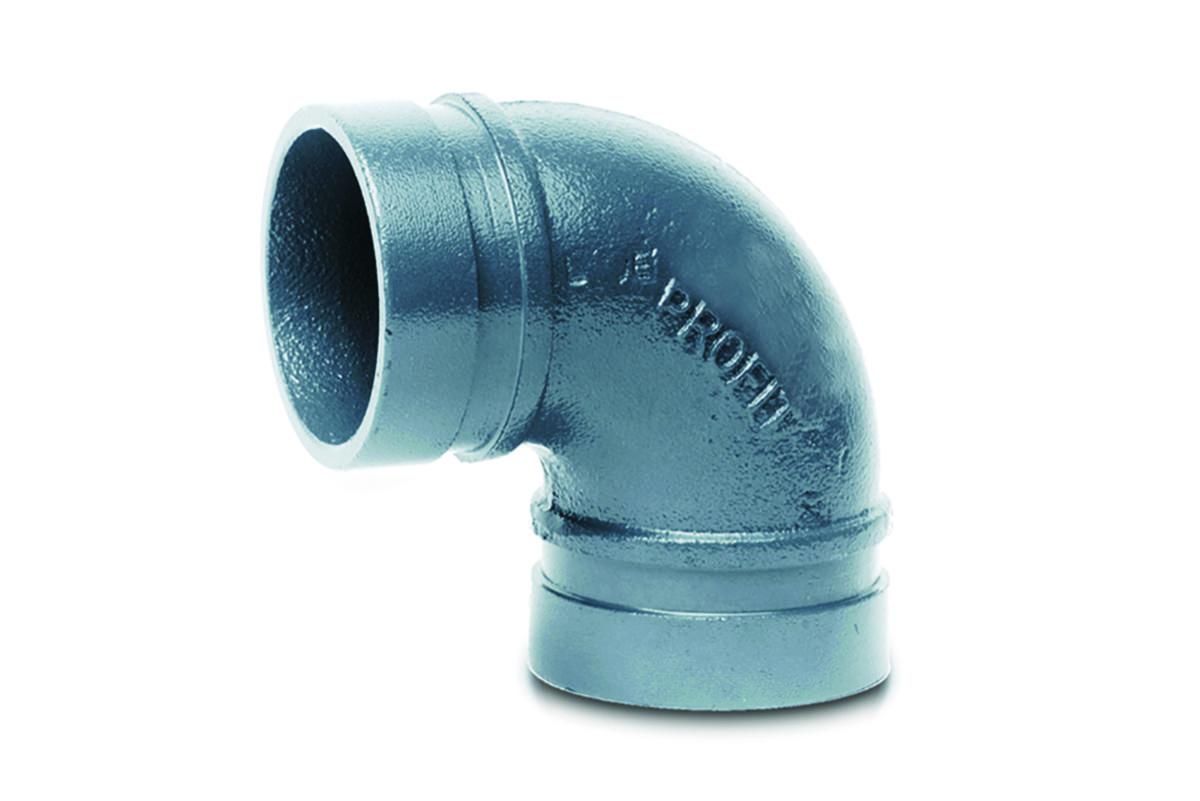

Grooved bend 90º, Galvanized
Grooved galvad 90° elbow DN40
Article number: Suppl. article no:
1648632V
GB90G11/2
to see price and stock
Pipe fittings (GB, GT, GRC, GE, GRTR)
Used to make direction changes in grooved pipe systems.
The pipe parts can handle up to 20.7 bar maximum working pressure.
Used to make direction changes in grooved pipe systems.
The pipe parts can handle up to 20.7 bar maximum working pressure.
- Article number: 1648632V
- Suppl. article no: GB90G11/2
- Ean no: 7333123073983
- Replaces art.nbr: 1347497
- Material class PJB420
Technical data
- Packagin Size: 1 PCS/16 PCS/1620 PCS
- Nominal diameter connection 1: DN 40
- Nominal diameter connection 2: DN 40
- Outer pipe diameter connection 1: 48.3 mm
- Outer pipe diameter connection 2: 48.3 mm
- Max. operating pressure at 20 °C: 20.7 bar
- Weight / item: 0.48 kg
- Connection 1: Groove
- Connection 2: Groove
- Material connection 1: Steel
- Material connection 2: Steel
- Surface protection connection 1: Hot-dip galvanised
- Surface protection connection 2: Hot-dip galvanised
- Bend angle: 90 °
- Shape: Bend
- Reducing: No
