Pump Automat Initial Jet System 3-4-22, Wilo
INITIAL JET SYSTEM 3-4-19 JET PUMP, WILO
Article number: Suppl. article no:
5824069
4185608
to see price and stock
To shop with us, you need a registered company and a customer number.

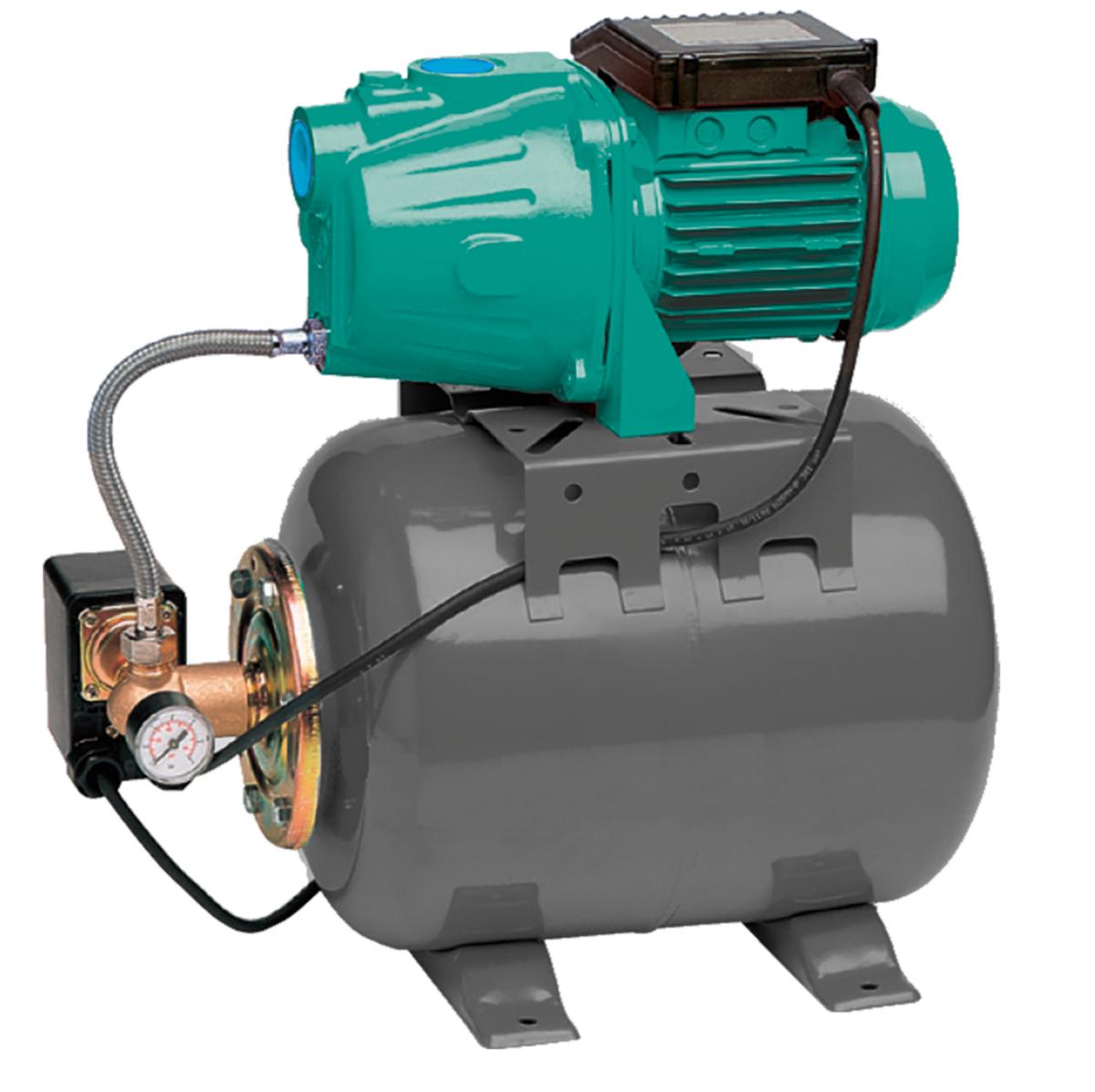

Automatic pump designed for drinking water, complete with 22 litre pressure tank and pressure switch.
- Article number: 5824069
- Suppl. article no: 4185608
- Ean no: 4048482378244
- Replaces art.nbr: 5955063
- Material class PHB120
Technical data
- Outer pipe diameter connection outlet side: 25 mm
- Nominal current: 3.8 A
- Rated voltage: 230 V
- Max. static height: 38.99 m
- Max. discharge flow: 3 m³/h
- Outer pipe diameter connection inlet side: 25 mm
- Ambient temperature: 0-40 °C
- Max. operating pressure: 6 bar
- Medium temperature (continuous): 5-35 °C
- Motor power output (P2) per motor: 0.6 kW
- Discharge head at flow rate (BEP): 101.21 kPa
- Rotational speed: 2850 1/min
- Number of phases: 1
- Volume flow rate (BEP): 3 m³/h
- Motor efficiency class: IE1
- Flange compression stage connection inlet side: PN 6
- Nominal diameter connection inlet side: 1 inch (25)
- Flange shape: Other
- Connection inlet side: Internal thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection outlet side: 1 inch (25)
- Material pump casing: Cast iron
- Material quality connection: Cast iron EN-GJL-200 (GG 20)
- Insulation class according to IEC: F
- Material quality pump casing: Cast iron EN-GJL-200 (GG 20)
- Material of connection: Cast iron
- Material impeller/pump wheel: Polypropylene (PP)
- Frequency: 50 Hz
- Degree of protection (IP): IPX4
- Connection outlet side: Internal thread cylindrical BSPP-G (ISO 228-1)
- Material quality impeller/pump wheel: PP-GF
- Connection standard inlet side: ISO 228-1
- Standard motor: No
- Connection standard outlet side: ISO 228-1
- Flange compression stage connection outlet side: PN 6
