Beulco

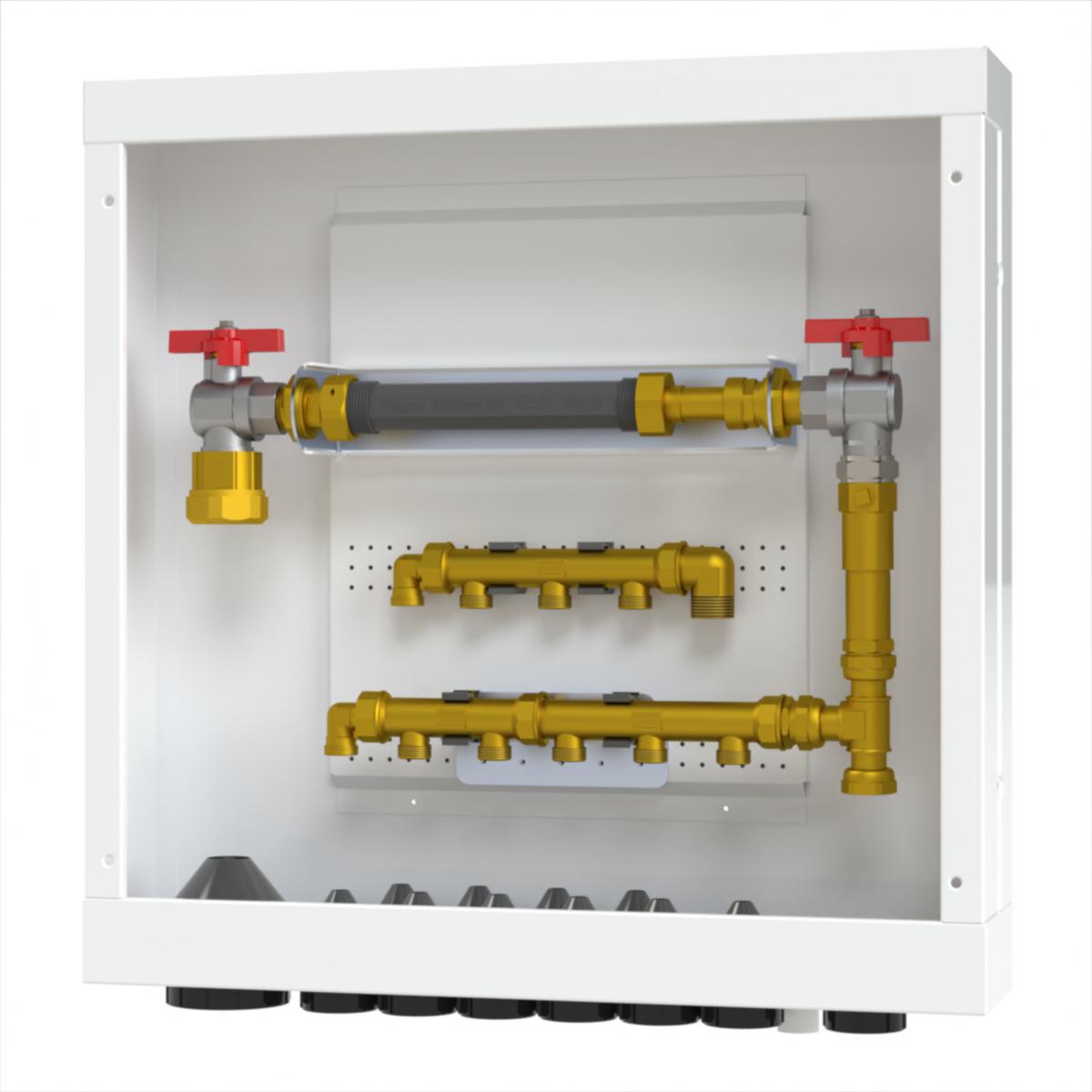

Water meter cabinet 550VP 220, Beulco
WATER METER CABINET LEFT 6C4H BEULCO
Article number:
2986337
to see price and stock
Water meter cabinet for installation in the wall, complete with bracket, shut-off valves, controllable non-return valve, coupling for incoming PEM pipe, distribution pipe with cold water and hot water outlets. This model is intended for water meters 190 or 220 mm and metering of tap water in a house.
Incoming left or right connection PEM coupling 32, outgoing outlet G20, outlet on distributor outlet G15, excl. frame and door.
Incoming left or right connection PEM coupling 32, outgoing outlet G20, outlet on distributor outlet G15, excl. frame and door.
- Article number: 2986337
- Ean no: 7331807078989
- Material class PIU130
Technical data
- Width: 550 mm
- Height: 550 mm
- Depth: 117 mm
- Housing colour: White
- Housing material: Steel
- With door: No
- With waterproof bottom: Yes
- With splash guard: Yes
- With pipe feed-through sealing: Yes
- With brackets for distributor: Yes
- Suitable for built-in mounting: Yes
- RAL-number housing: 9016
- Colour door: Other
- With built-in distributor: Yes
- Number of holes in bottom: 13
- Suitable for surface mounting: No
- RAL-number frame: 9016
- With outlet for leakage indication: Yes
- With open holes on top: No
- With holes in bottom: No
- Surface protection housing: Lacquered
- Material door: Other
- Number of holes on top: 5
- With open holes on sides: No
- Number of holes/slots per side: 0
- Design: Left
- Surface protection door: Other
- Colour frame: Other
- Frame material: Other
- Suitable for application of waterproof membrane: Yes
- With door frame: No
- Type of locking: Other
- RAL-number door: 9016
- Surface protection frame: Other
- REACH Date: 2025-04-28
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
