LK
Water meter cabinet UNI, LK
WATER METER CABINET UNI. RIGHT INCOMING RIGHT, LK SYSTEMS
Article number: Suppl. article no:
1882303
1882303
to see price and stock

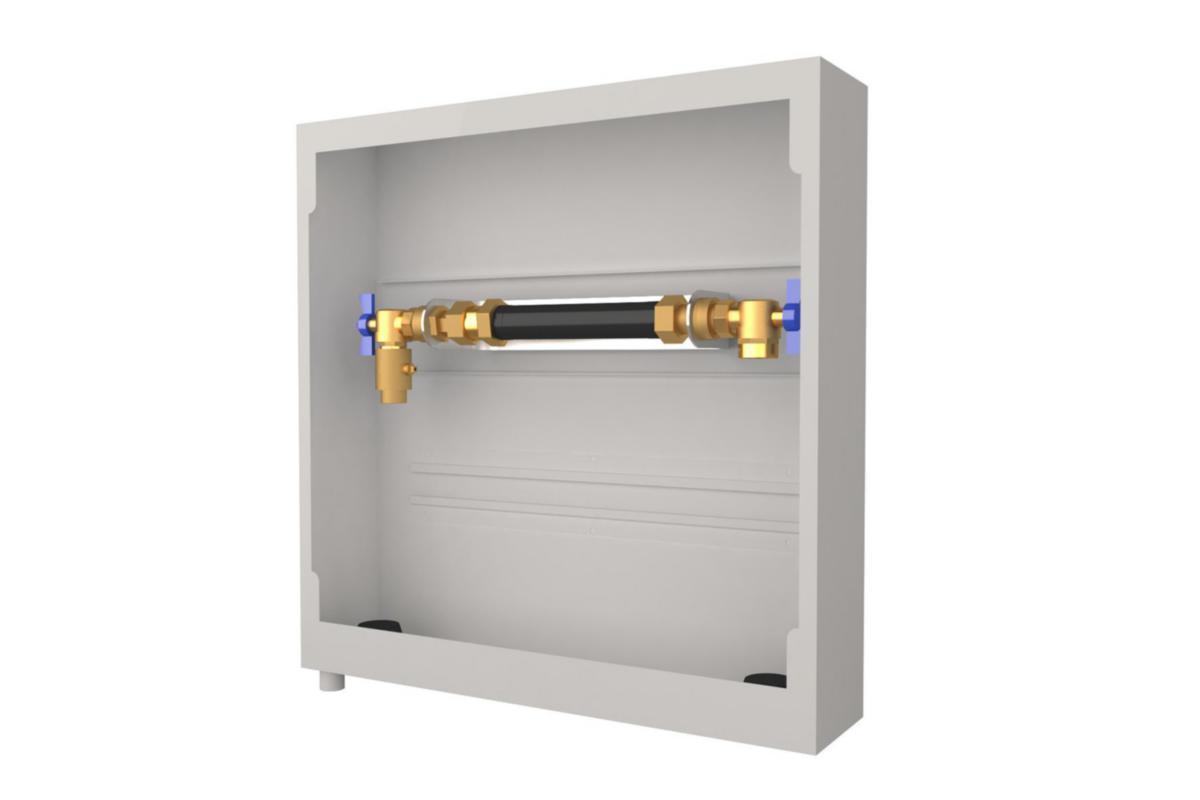

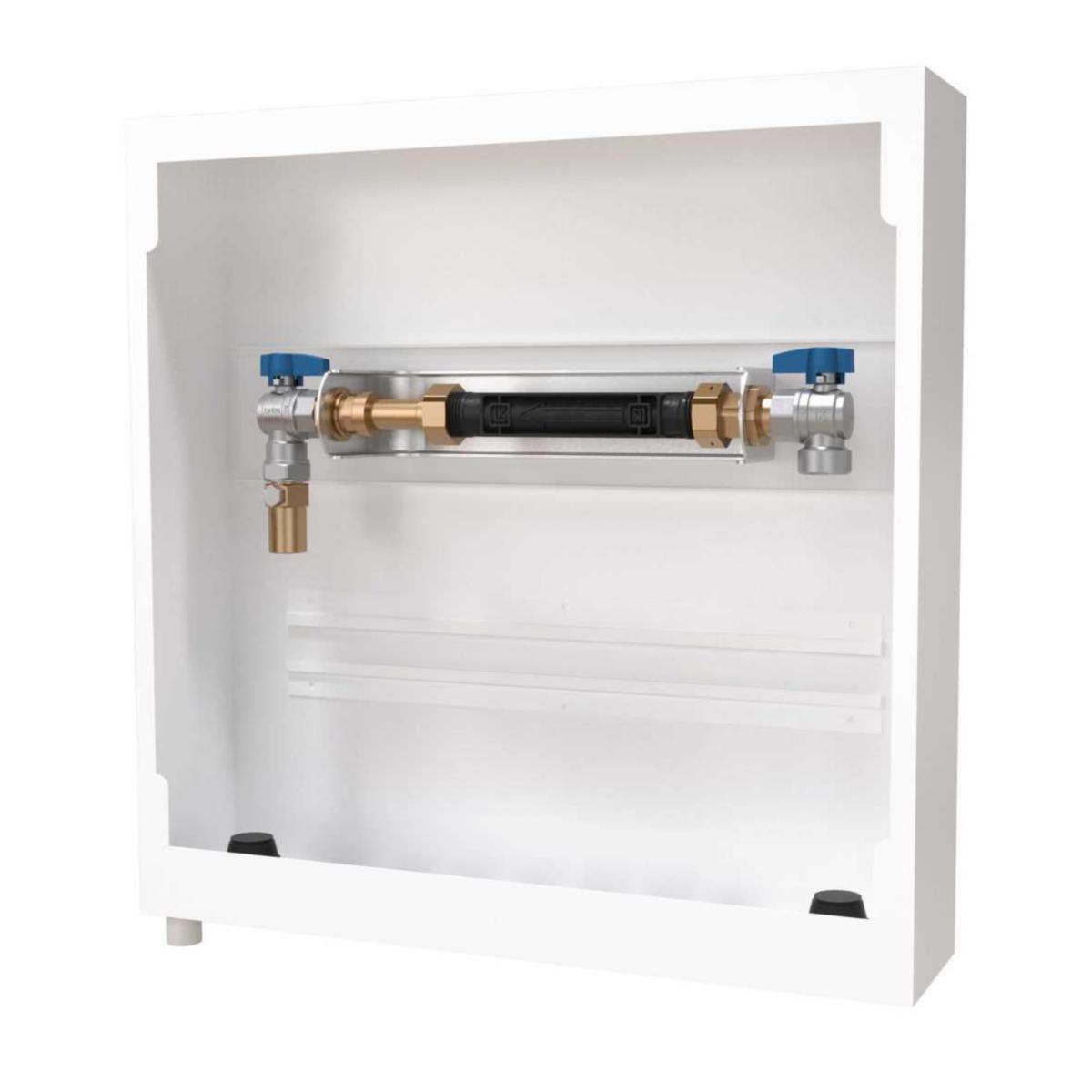

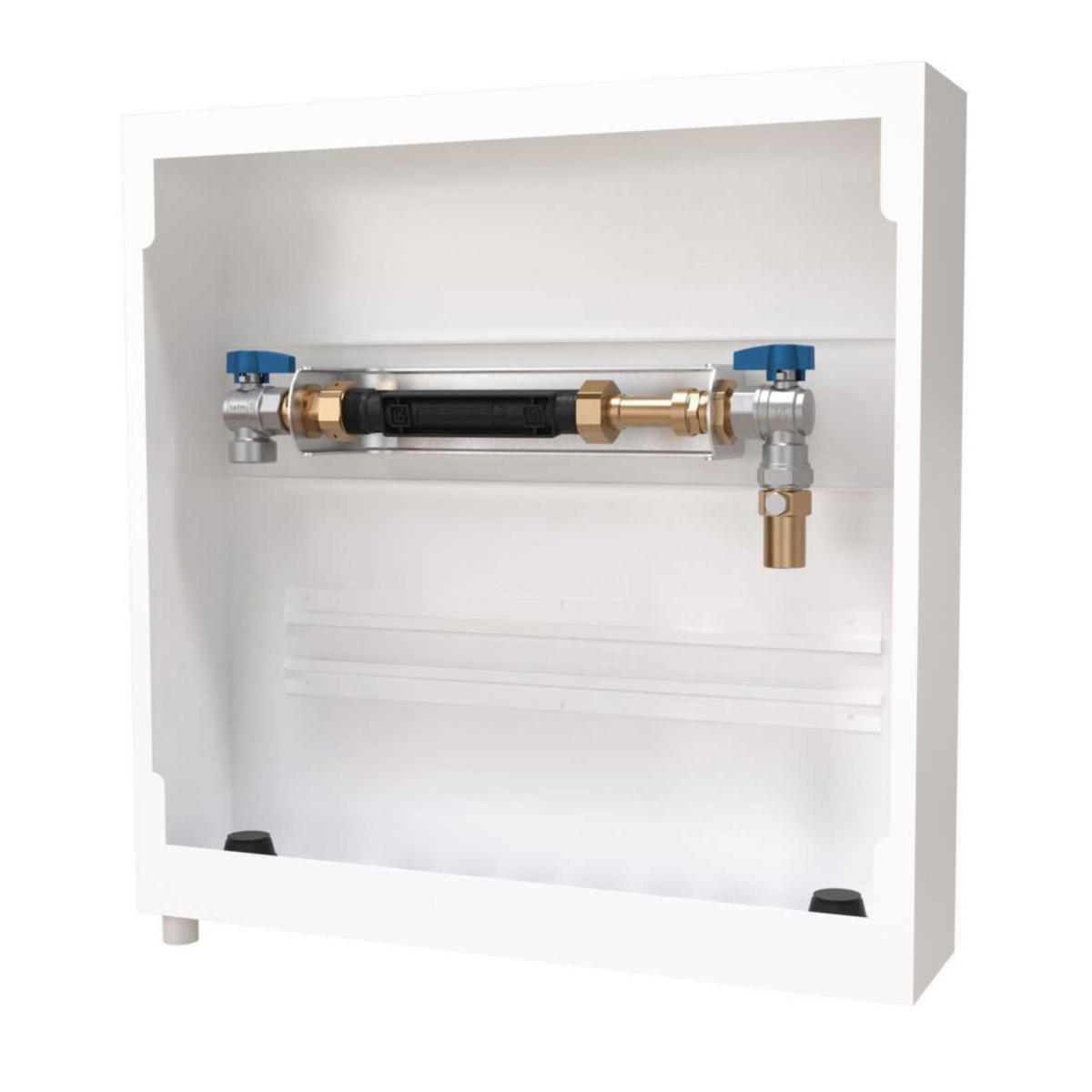

LK Water meter cabinet UNI is a leak-proof prefabricated distribution cabinet with pre-assembled water meter bracket G25 (DN20) 190-220mm. Feeding with incoming cold water service takes place from below, connection ext. G25 in bracket.
Supplied including ball valves, fitting for the municipality's tap water meter and controllable non-return valve.
Supplied complete with 2 pcs ø32-50mm cabinet bushings. All couplings and ball valves are made of dezincification-resistant brass.
The cabinet has a waterproof bottom with a 50mm high front edge and is approved according to NT VVS 129.
Protective bag to put over the cabinet during construction is included.
The cabinet is mounted at a height of 350mm from the underside of the cabinet base to the finished floor.
ATTENTION! LK Frame with door ordered separately, RSK 188 13 05 fits LK Water meter cabinet UNI.
The cabinet can be completed with LK bracket UNI 188 22 04, 188 22 05 and LK Distributor UNI.
Supplied including ball valves, fitting for the municipality's tap water meter and controllable non-return valve.
Supplied complete with 2 pcs ø32-50mm cabinet bushings. All couplings and ball valves are made of dezincification-resistant brass.
The cabinet has a waterproof bottom with a 50mm high front edge and is approved according to NT VVS 129.
Protective bag to put over the cabinet during construction is included.
The cabinet is mounted at a height of 350mm from the underside of the cabinet base to the finished floor.
ATTENTION! LK Frame with door ordered separately, RSK 188 13 05 fits LK Water meter cabinet UNI.
The cabinet can be completed with LK bracket UNI 188 22 04, 188 22 05 and LK Distributor UNI.
- Article number: 1882303
- Suppl. article no: 1882303
- Ean no: 7331590046158
- Material class PAM120
Technical data
- Packagin Size: 1 ST/12 ST
- Width: 550 mm
- Height: 550 mm
- Depth: 120 mm
- Housing colour: White
- Housing material: Steel
- With door: No
- With waterproof bottom: Yes
- With splash guard: Yes
- With pipe feed-through sealing: Yes
- With brackets for distributor: No
- Suitable for built-in mounting: Yes
- RAL-number housing: 9016
- Colour door: White
- With built-in distributor: Yes
- Number of holes in bottom: 17
- Suitable for surface mounting: No
- With outlet for leakage indication: Yes
- With open holes on top: No
- With holes in bottom: Yes
- Surface protection housing: Lacquered
- Material door: Steel
- Number of holes on top: 5
- With open holes on sides: No
- Number of holes/slots per side: 0
- Design: Right
- Surface protection door: Lacquered
- REACH Date: 2021-06-15
- REACH Information obligation: No
