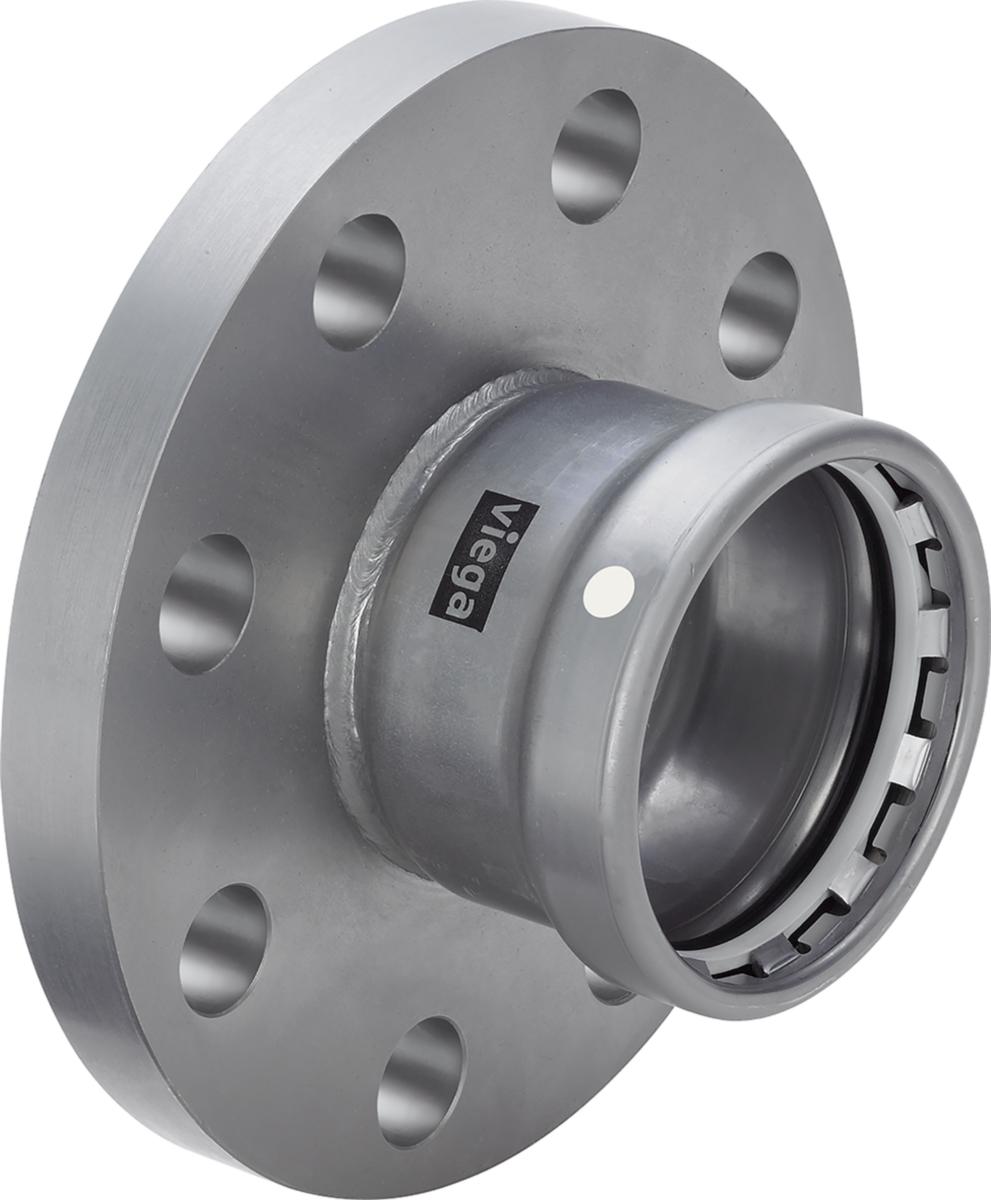

Flange Adapter Megapress, Viega
Megapress S XL
Article number: Suppl. article no:
1546853V
770921
to see price and stock
The Megapress system is intended for installations of heating, sprinkler, cooling, and industrial applications together with steel pipes according to DIN EN 10255 and DIN EN 10220. The Megapress fittings are made of non-alloy steel, material 1.0308, with a zinc-nickel coating of 3-5 microns. Megapress is not intended for drinking water installations and gases according to DVGW G 250. Leakage indicator SC-Contur.
- Article number: 1546853V
- Suppl. article no: 770921
- Ean no: 4015211770921
- Material class PAI200
Technical data
- Packagin Size: 1 PCS/1 PCS
- Outer pipe diameter connection 2: 76.1 mm
- Connection 1: Flange
- Connection 2: Press sleeve
- Nominal diameter connection 1: DN 65
- Nominal diameter connection 2: 2 1/2 inch (65)
- Material connection 1: Steel
- Material connection 2: Steel
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- Max. operating pressure at 20 °C: 16 bar
- Flange compression class: PN 16
- Surface protection connection 1: Zinc/nickel
- Surface protection connection 2: Zinc/nickel
- Length: 72.9 mm
- Working length connection 1: 28 mm
- Shape: Straight
- Reducing: Yes
- Material quality connection 2: St 35 (1.0308)
- Material quality connection 1: St 35 (1.0308)
- With sealing rings/gaskets: Yes
- With buffer stud: Yes
- Model: 1-part
- System specific: Yes
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Eccentric: No
- REACH Date: 2019-03-04
- GWP-tot (A1-A3): 82,8723 kgCO2e/ST
- REACH Information obligation: No
