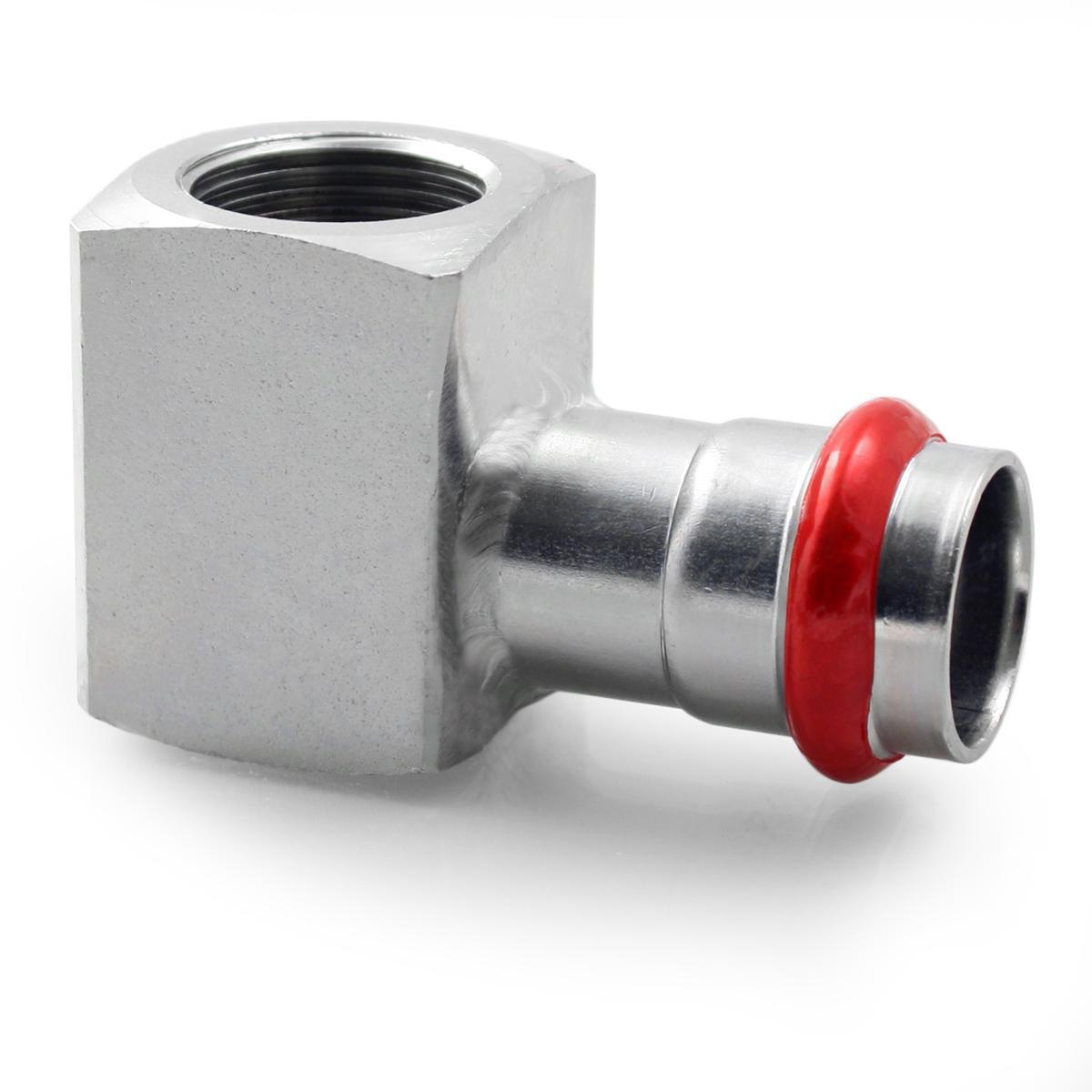

Angle 90° internal thread type V, galvanized, A-press, a-collection
22G20 ELBOW 90° V CARBON STEEL A-PRESS-FEMALE THREAD
Article number: Suppl. article no:
1556428
C30QEVI-LBP
to see price and stock
Angle 90° with 1 sleeve and female thread in electrogalvanized steel, with leakage indicator (LBP) in unpressed condition, O-ring in EPDM not resistant to oils and mineral greases, pressed with V-jaws.
The press parts are intended for use with electrogalvanized steel pipes according to EN10305-3 (DIN2394).
The product has RISE type approval C900366.
The press parts are intended for use with electrogalvanized steel pipes according to EN10305-3 (DIN2394).
The product has RISE type approval C900366.
- Article number: 1556428
- Suppl. article no: C30QEVI-LBP
- Ean no: 07350027277071
- Material class PAI04B
Technical data
- Packagin Size: 1 ST/10 ST
- Outer pipe diameter connection 1: 22 mm
- Connection 1: Press sleeve
- Connection 2: Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
- Nominal diameter connection 2: 3/4 inch (20)
- Material connection 1: Steel
- Material connection 2: Steel
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- Max. operating pressure at 20 °C: 16 bar
- Bend angle: 90 °
- Surface protection connection 1: Galvanic/electrolytic zinc plated
- Surface protection connection 2: Galvanic/electrolytic zinc plated
- Medium temperature (continuous): -20-95 °C
- Contour code connection 1: V
