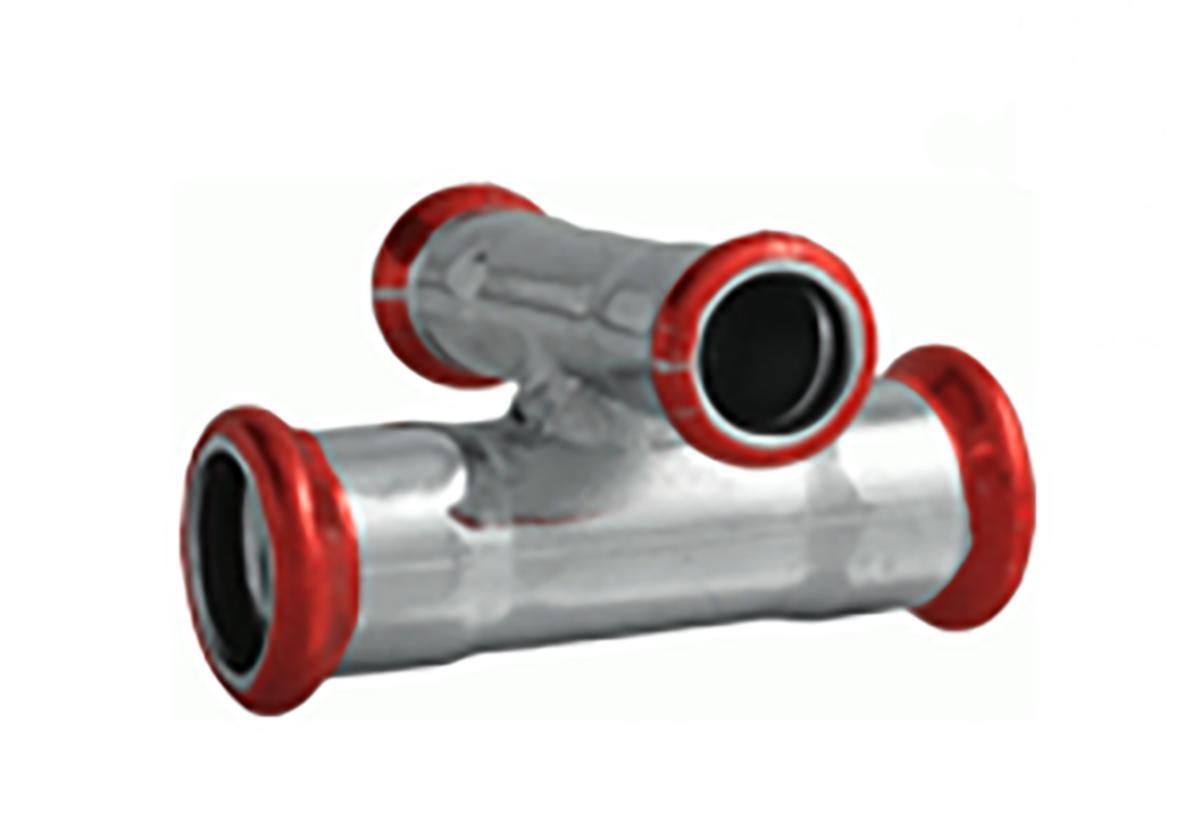

Cross pipe type M galvanized A-press, a-collection
PIPE CROSS 90 M15-M15
Article number:
1572407
to see price and stock
Cross pipe 90° in electrogalvanized steel, with leakage indicator (LBP) in unpressed condition, O-ring in EPDM not resistant to oils and mineral greases, pressed with M-jaws.
The press parts are intended for use with electrogalvanized steel pipes according to EN10305-3 (DIN2394).
The product has RISE type approval C900365, SINTEF 3738
The press parts are intended for use with electrogalvanized steel pipes according to EN10305-3 (DIN2394).
The product has RISE type approval C900365, SINTEF 3738
- Article number: 1572407
- Ean no: 7333123064158
- Material class PAI02B
Technical data
- Packagin Size: 1 ST/10 ST
- Connection 1: Press sleeve
- Connection 2: Press sleeve
- Connection 3: Press sleeve
- Connection 4: Press sleeve
- Outer pipe diameter connection 1: 15 mm
- Outer pipe diameter connection 2: 15 mm
- Outer pipe diameter connection 3: 15 mm
- Outer pipe diameter connection 4: 15 mm
- Contour code: M
- Material: Steel
- Max. operating pressure at 20 °C: 16 bar
- Surface protection: Galvanic/electrolytic zinc plated
- Medium temperature (continuous): -20-85 °C
- GWP-tot (A1-A3): 1,3830 kgCO2e/ST
