Main distributor type M Single electro-galvanized, A-press, a-collection
12-12 SINGLE CROSSING M CARBON STEEL A-PRESS
Article number:
1556487
to see price and stock

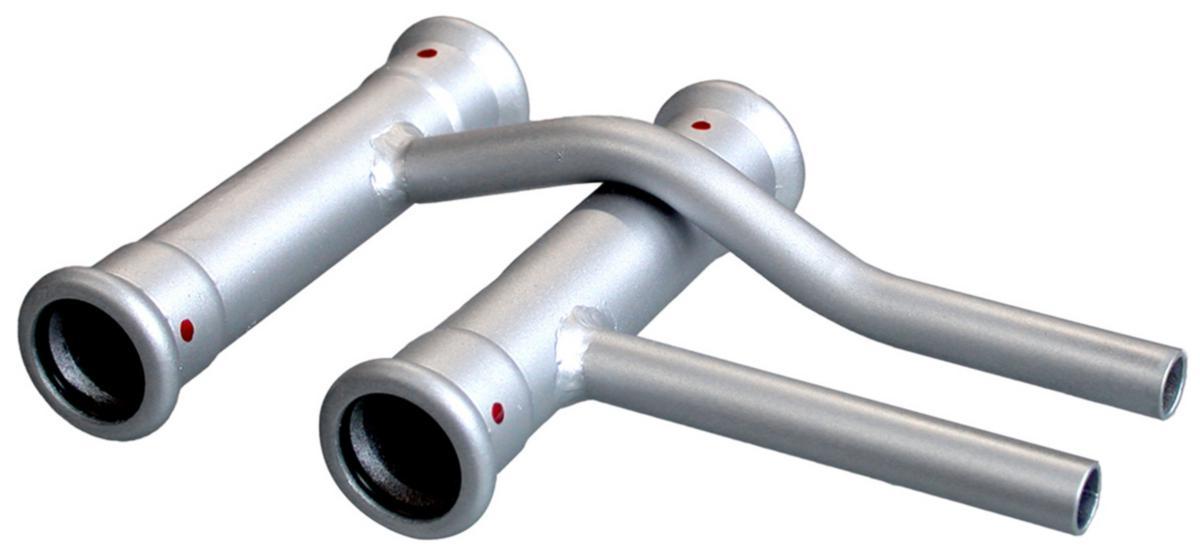

Main distrubutor double with 4 sleeves and 2 plain ends single type M in electrogalvanized steel, with leakage indicator (LBP) in unpressed condition, O-ring in EPDM not resistant to oils and mineral greases, pressed with M-jaws.
The press parts are intended for use with electrogalvanized steel pipes according to EN10305-3 (DIN2394).
The product has RISE type approval C900365, SINTEF 3738
The press parts are intended for use with electrogalvanized steel pipes according to EN10305-3 (DIN2394).
The product has RISE type approval C900365, SINTEF 3738
- Article number: 1556487
- Ean no: 07350027278184
- Material class PAI02B
Technical data
- Packagin Size: 1 ST/5 ST
- Outer pipe diameter connection 1: 12 mm
- Outer pipe diameter connection 2: 12 mm
- Outer pipe diameter connection 3: 12 mm
- Connection 1: Slide sleeve
- Connection 2: Slide sleeve
- Connection 3: Spigot/tube end
- Distance centre-to-centre: 60 mm
- Surface protection: Galvanic/electrolytic zinc plated
- Suitable for two pipe system: Yes
- Material: Steel
- GWP-tot (A1-A3): 2,7800 kgCO2e/ST
