Head Type M, Electro-Galvanized, A-press, a-collection
12 CAP M CARBON STEEL A-PRESS
Article number:
1555847
to see price and stock

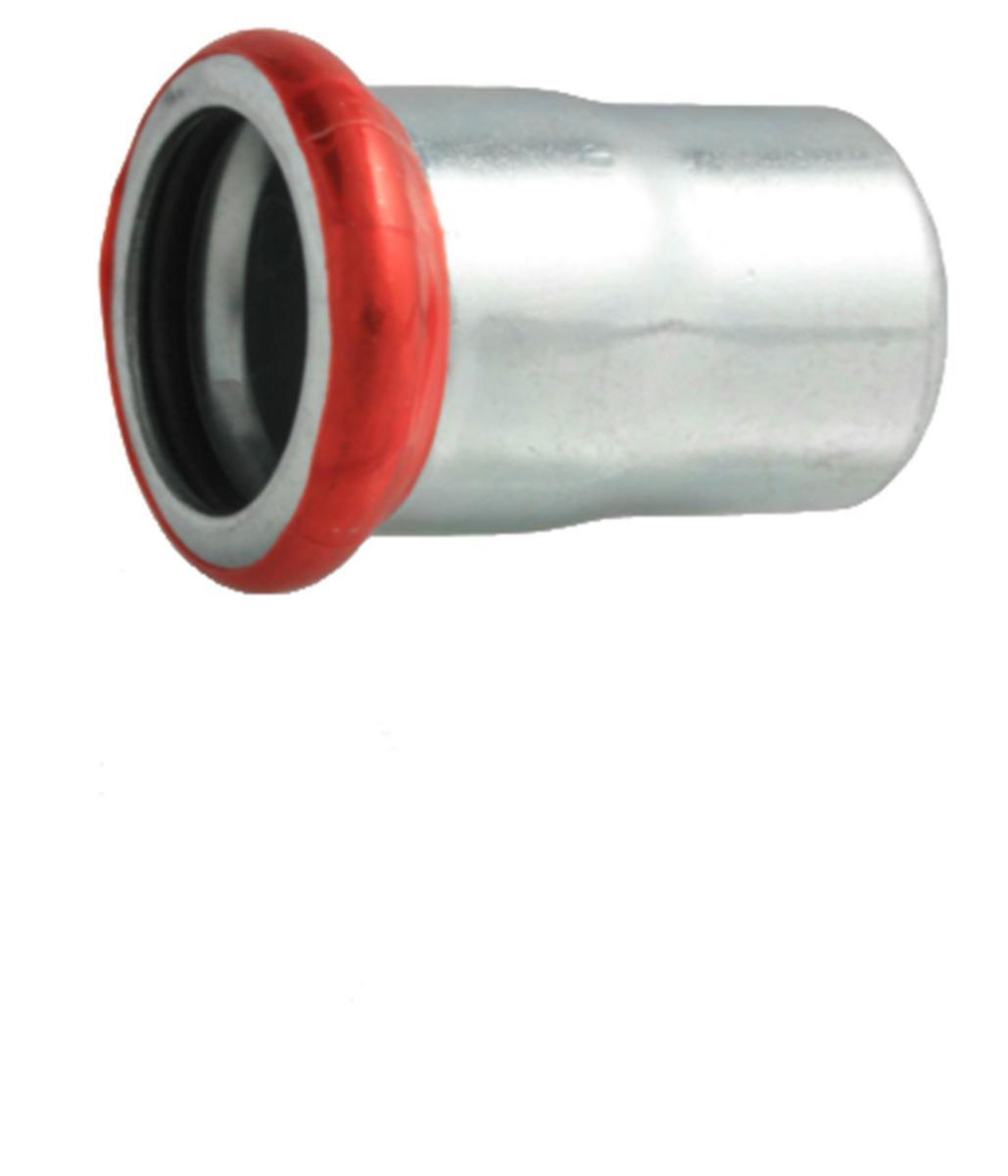

Cap in electrogalvanized steel, with leakage indicator (LBP) in unpressed condition, O-ring in EPDM not resistant to oils and mineral greases, pressed with M-jaws.
The press parts are intended for use with electrogalvanized steel pipes according to EN10305-3 (DIN2394).
The product has RISE type approval C900365, SINTEF 3738
The press parts are intended for use with electrogalvanized steel pipes according to EN10305-3 (DIN2394).
The product has RISE type approval C900365, SINTEF 3738
- Article number: 1555847
- Ean no: 7333123096470
- Replaces art.nbr: 1555446
- Material class PAI02B
Technical data
- Packagin Size: 1 ST/20 ST
- Outer pipe diameter connection 1: 12 mm
- Contour code: M
- Max. operating pressure at 20 °C: 16 bar
- Material connection 1: Steel
- Connection 1: Press sleeve
- Medium temperature (continuous): -20-85 °C
- Surface protection connection 1: Galvanic/electrolytic zinc plated
- GWP-tot (A1-A3): 0,2766 kgCO2e/ST
