Transition nipple smooth end/internal thread, electroplated, A-press, a-collection
12R15 ADAPTOR FEMALE THREAD PLAIN END M&V C. STEEL A-PRESS
Article number:
1555477
to see price and stock

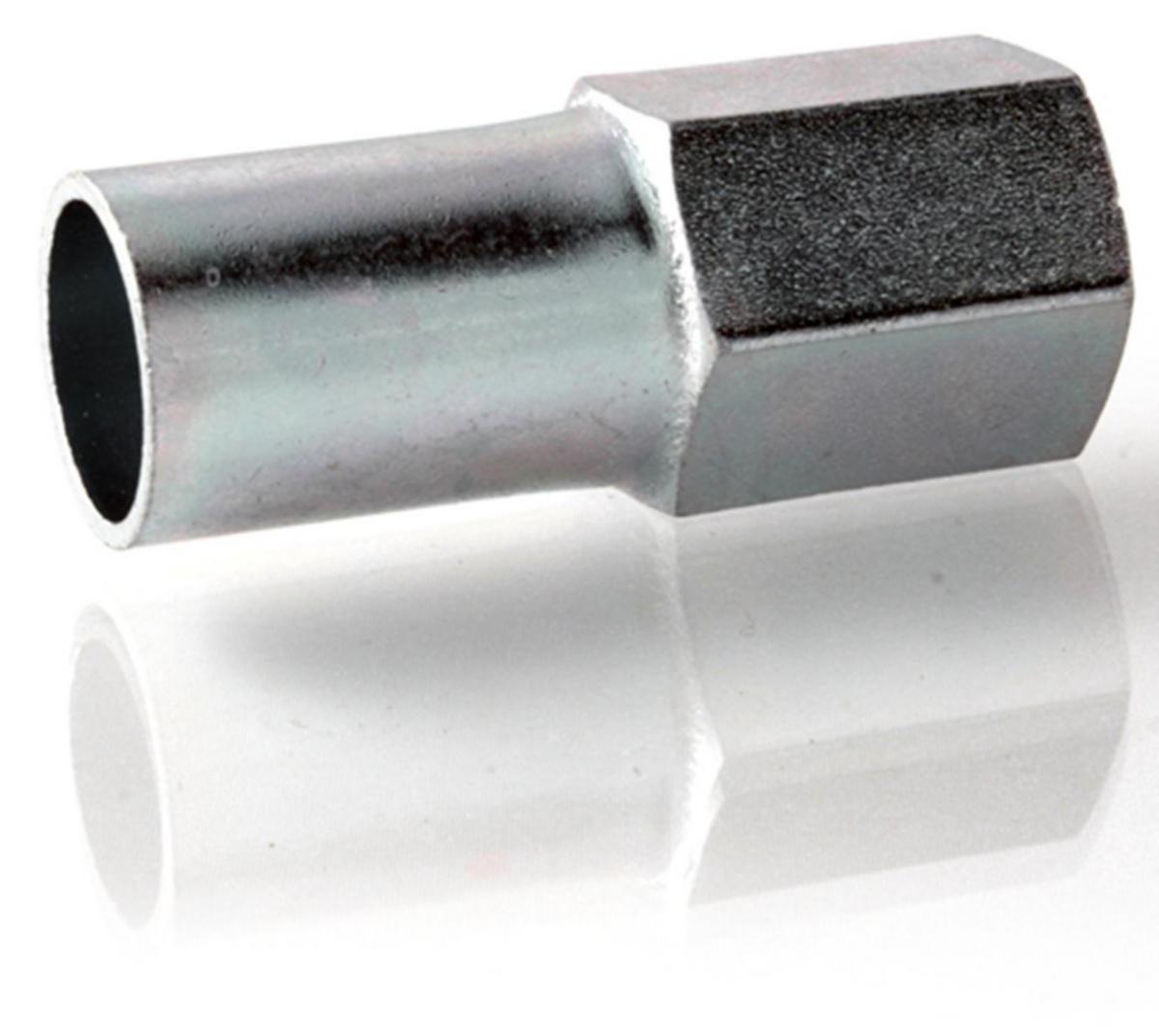

Transition nipple with female thread and plain end in electrogalvanized steel, with leakage indicator (LBP) in unpressed condition, O-ring in EPDM not resistant to oils and mineral greases, pressed with M-jaws.
The press parts are intended for use with electrogalvanized steel pipes according to EN10305-3 (DIN2394).
The product has RISE type approval C900365, SINTEF 3738
The press parts are intended for use with electrogalvanized steel pipes according to EN10305-3 (DIN2394).
The product has RISE type approval C900365, SINTEF 3738
- Article number: 1555477
- Ean no: 7333123097262
- Material class PAI02B
- This is an alternative to item 1551034
Technical data
- Packagin Size: 1 ST/20 ST
- Outer pipe diameter connection 1: 12 mm
- Connection 1: Slide end
- Connection 2: Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
- Nominal diameter connection 2: 1/2 inch (15)
- Material connection 1: Steel
- Material connection 2: Steel
- Max. operating pressure at 20 °C: 16 bar
- Surface protection connection 1: Galvanic/electrolytic zinc plated
- Surface protection connection 2: Galvanic/electrolytic zinc plated
- Medium temperature (continuous): -20-85 °C
- GWP-tot (A1-A3): 0,6085 kgCO2e/ST
