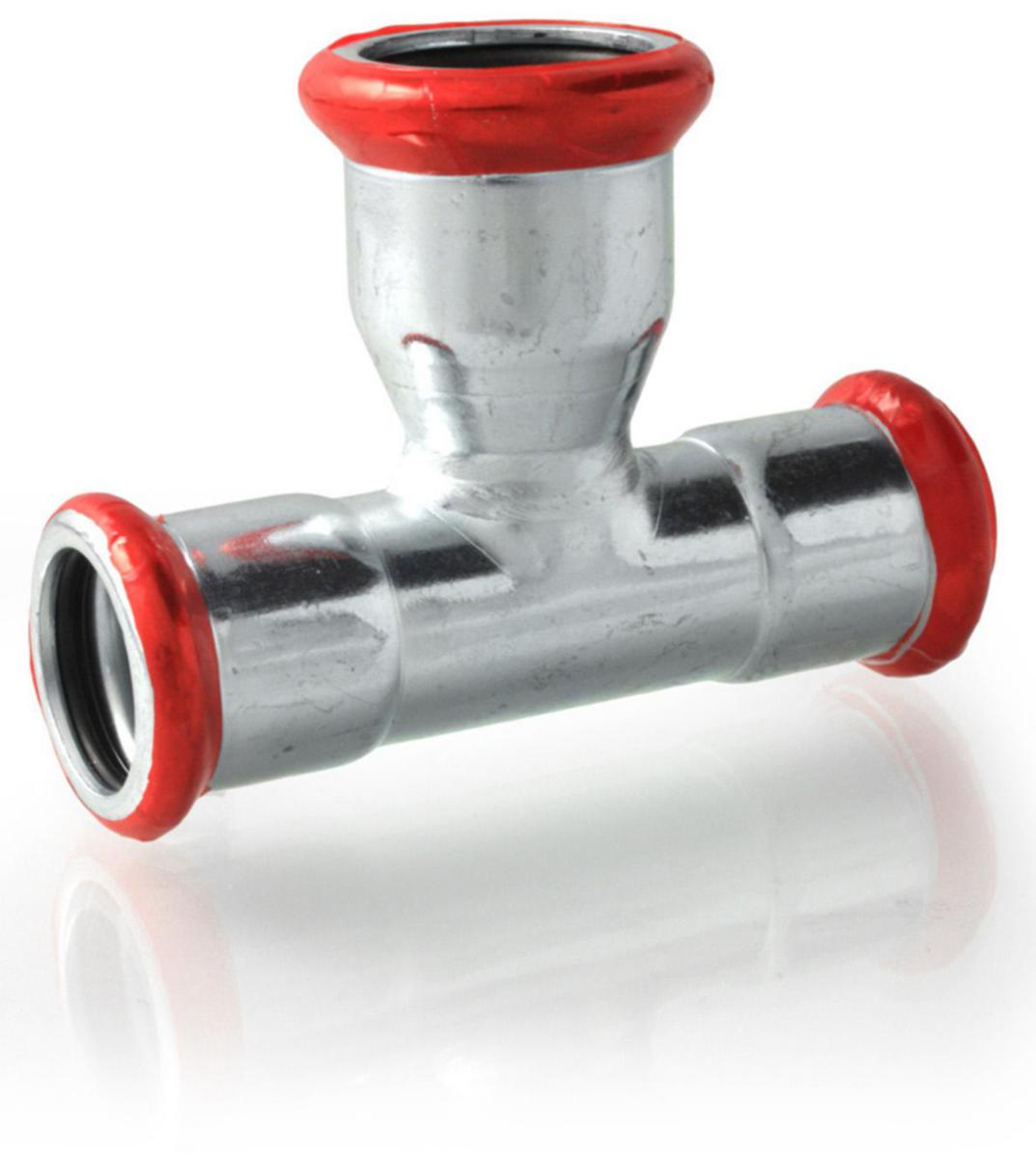

T-pipe type M with enlarged branch, galvanized, A-press, a-collection
12-15 TEE ENLARGED M CARBON STEEL A-PRESS
Article number:
1555412
to see price and stock
T-piece with enlarged branch in electrogalvanized steel, with leakage indicator (LBP) in unpressed condition, O-ring in EPDM not resistant to oils and mineral greases, pressed with M-jaws.
The press parts are intended for use with electrogalvanized steel pipes according to EN10305-3 (DIN2394).
The product has RISE type approval C900365, SINTEF 3738
The press parts are intended for use with electrogalvanized steel pipes according to EN10305-3 (DIN2394).
The product has RISE type approval C900365, SINTEF 3738
- Article number: 1555412
- Ean no: 7333123096425
- Material class PAI02B
Technical data
- Packagin Size: 1 ST/20 ST
- Outer pipe diameter connection 1: 12 mm
- Outer pipe diameter connection 2: 15 mm
- Outer pipe diameter connection 3: 12 mm
- Connection 1: Press sleeve
- Connection 2: Press sleeve
- Connection 3: Press sleeve
- Contour code connection 1: M
- Contour code connection 2: M
- Contour code connection 3: M
- Medium temperature (continuous): -20-85 °C
- Material connection 1: Steel
- Material connection 2: Steel
- Material connection 3: Steel
- Max. operating pressure at 20 °C: 16 bar
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- Surface protection connection 1: Galvanic/electrolytic zinc plated
- Surface protection connection 2: Galvanic/electrolytic zinc plated
- Surface protection connection 3: Galvanic/electrolytic zinc plated
