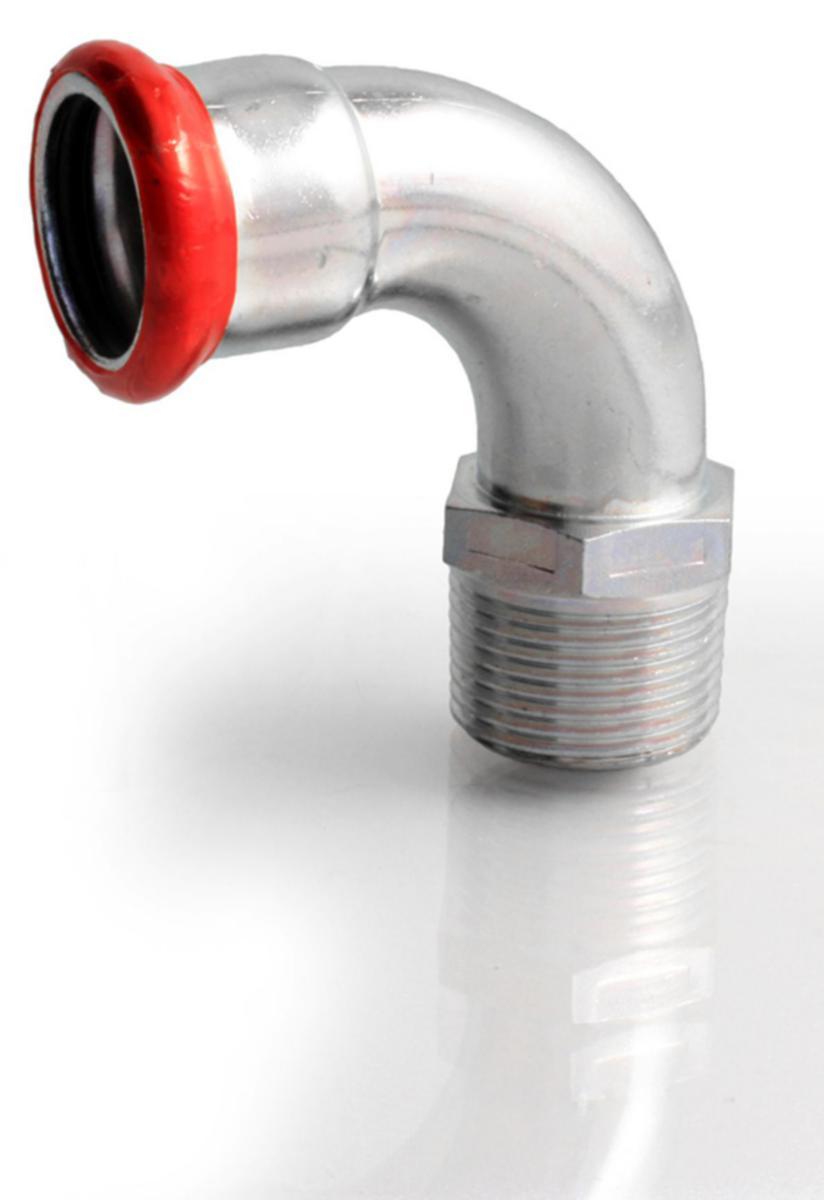

Bend 90° Type M with socket/external thread, electro-galvanized, a-collection
15R10 ELBOW 90° M CARBON STEEL A-PRESS-MALE THREAD
Article number:
1555360
to see price and stock
Bend 90° with 1 sleeve and male thread in electrogalvanized steel, with leakage indicator (LBP) in unpressed condition, O-ring in EPDM not resistant to oils and mineral greases, pressed with M-jaws.
The press parts are intended for use with electrogalvanized steel pipes according to EN10305-3 (DIN2394).
The product has RISE type approval C900365, SINTEF 3738
The press parts are intended for use with electrogalvanized steel pipes according to EN10305-3 (DIN2394).
The product has RISE type approval C900365, SINTEF 3738
- Article number: 1555360
- Ean no: 7333123097187
- Material class PAI02B
Technical data
- Packagin Size: 1 ST/20 ST
- Outer pipe diameter connection 1: 15 mm
- Connection 1: Press sleeve
- Connection 2: External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
- Nominal diameter connection 2: 3/8 inch (10)
- Surface protection connection 1: Galvanic/electrolytic zinc plated
- Surface protection connection 2: Galvanic/electrolytic zinc plated
- Bend radius: 90
