AhlsellProductsHeating and SanitationInstallation pipes and partsPress systemsPress systems zinc-platedA-press M-profile, zinc-plated
a-collection
Flange sleeves PN 6 type M, electro-galvanized, A-press, a-collection

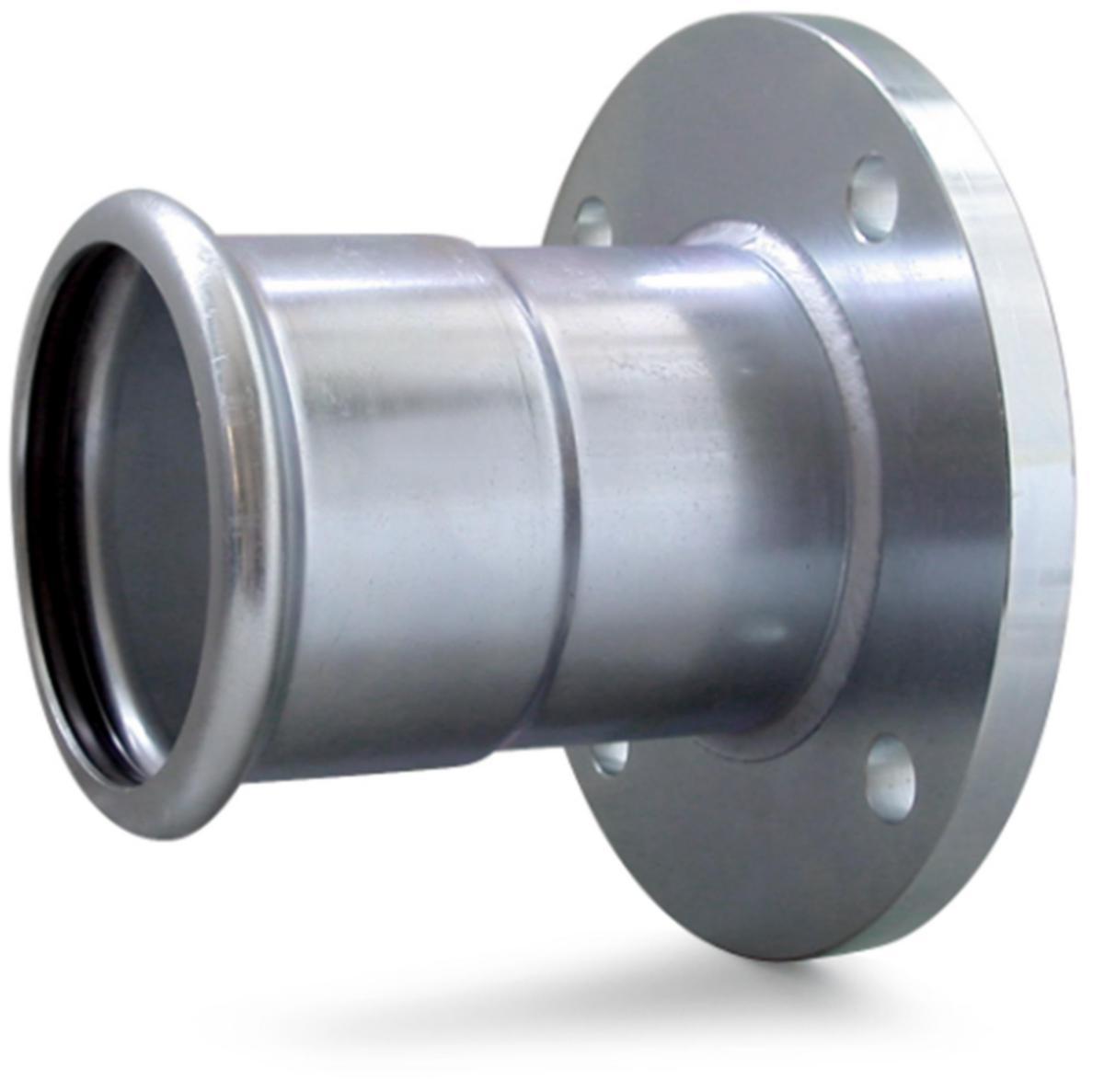

76.1 FLANGE-PRESSING SOCKET PN6 M CARBON STEEL A-PRESS
Article number:
1555250
to see price and stock
Flange transition PN6 with sleeve in electrogalvanized steel, with leakage indicator (LBP) in unpressed condition, O-ring in EPDM not resistant to oils and mineral greases, pressed with M-jaws.
The press parts are intended for use with electrogalvanized steel pipes according to EN10305-3 (DIN2394).
The product has RISE type approval C900365, SINTEF 3738
The press parts are intended for use with electrogalvanized steel pipes according to EN10305-3 (DIN2394).
The product has RISE type approval C900365, SINTEF 3738
- Article number: 1555250
- Ean no: 7333123096616
- Material class PAI03B
Technical data
- Outer pipe diameter connection 1: 76.1 mm
- Connection 1: Press sleeve
- Connection 2: Flange
- Nominal diameter connection 2: DN 65
- Material connection 1: Steel
- Material connection 2: Steel
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- Max. operating pressure at 20 °C: 16 bar
- Flange compression class: PN 6
- Surface protection connection 1: Galvanic/electrolytic zinc plated
- Surface protection connection 2: Galvanic/electrolytic zinc plated
- Medium temperature (continuous): -20-85 °C
- Contour code connection 1: M
