Union coupling with external thread stainless 316L/Brass A-press, a-collection
15-R15 UNION MALE THREAD M ST. 316L. A-PRESS
Article number:
1454778
to see price and stock

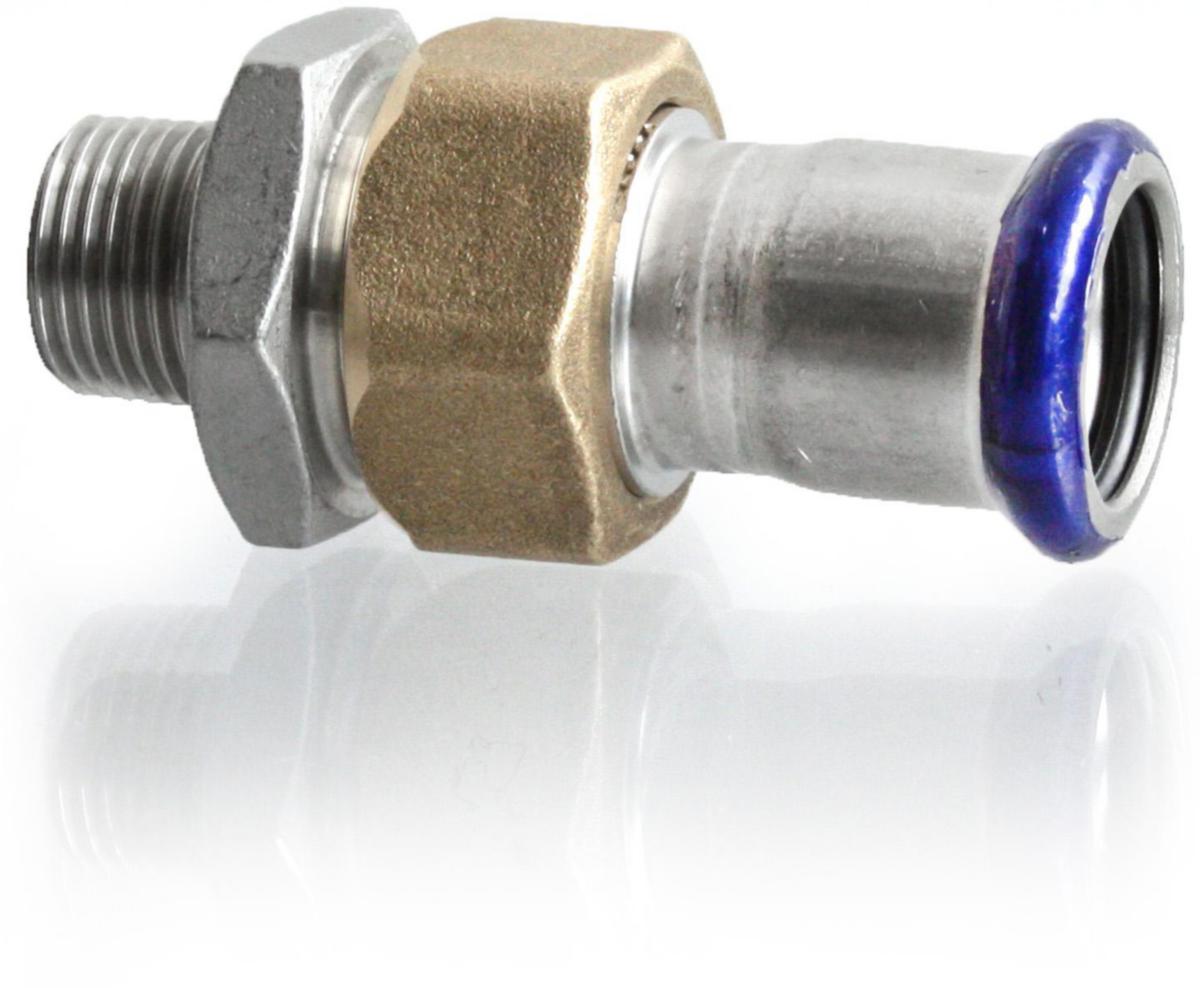

Union coupling in stainless steel 316L, with brass nut and male thread, with leakage indicator (LBP) in unpressed condition, O-ring in EPDM not resistant to oils and mineral greases, pressed with M-jaws.
The product has RISE type approval C900364, SINTEF 3737
The product has RISE type approval C900364, SINTEF 3737
- Article number: 1454778
- Ean no: 7333123098900
- Material class PAJ02B
Technical data
- Packagin Size: 1 ST/80 ST
- Outer pipe diameter connection 1: 15 mm
- Nominal diameter connection 2: 1/2 inch (15)
- Connection 1: Press sleeve
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Material connection 1: Stainless steel
- Material connection 2: Stainless steel
- Material quality connection 1: Stainless steel 316 L (1.4404)
- Material quality connection 2: Stainless steel 316 L (1.4404)
- Max. operating pressure at 20 °C: 16 bar
- Medium temperature (continuous): -20-85 °C
- Contour code connection 1: M
