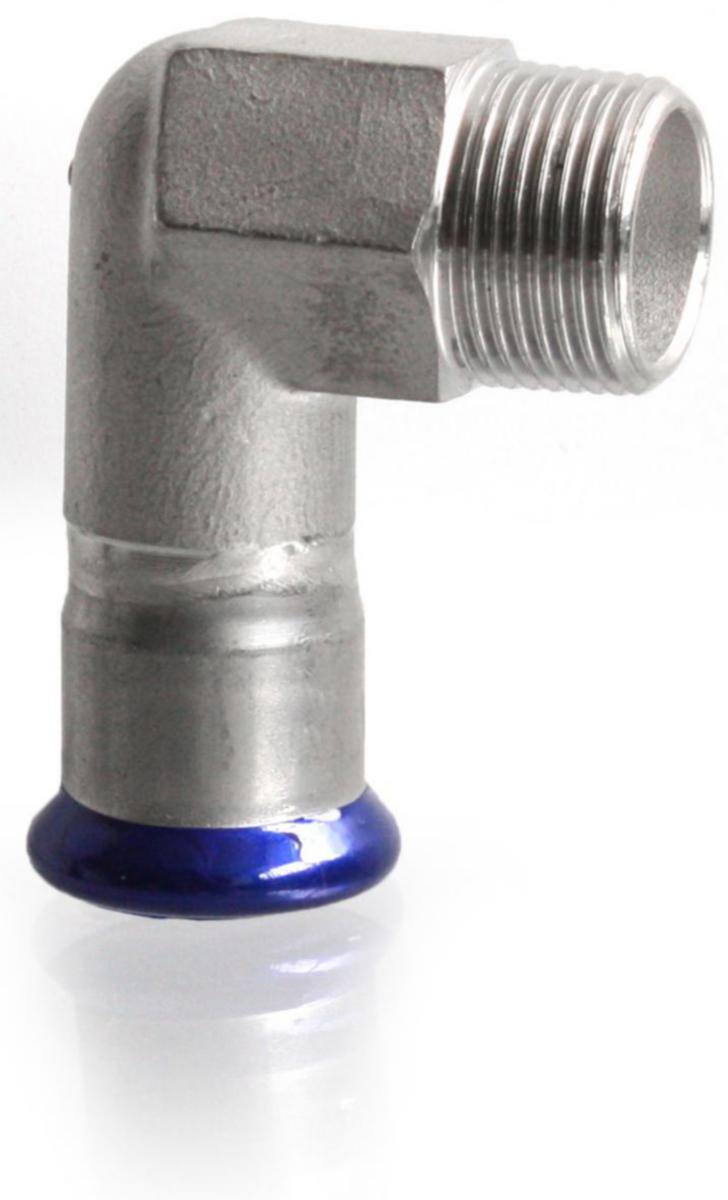

Angle 90° 1-muff external thread stainless steel 316L A-press, a-collection
15R15 ELBOW 90° M ST. 316L A-PRESS-MALE THREAD
Article number:
1454453
to see price and stock
Angle 90° with 1 sleeve and male thread, in stainless steel 316L, with leakage indicator (LBP) in unpressed condition, O-ring in EPDM not resistant to oils and mineral greases, pressed with M-jaws.
The product has RISE type approval C900364, SINTEF 3737
The product has RISE type approval C900364, SINTEF 3737
- Article number: 1454453
- Ean no: 7333123098221
- Material class PAJ02B
- This is an alternative to item 1450507
Technical data
- Packagin Size: 1 ST/100 ST
- Outer pipe diameter connection 1: 15 mm
- Nominal diameter connection 2: 1/2 inch (15)
- Connection 1: Press sleeve
- Connection 2: External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
- Bend angle: 90 °
- Material connection 1: Stainless steel
- Material connection 2: Stainless steel
- Material quality connection 1: Stainless steel 316 L (1.4404)
- Material quality connection 2: Stainless steel 316 L (1.4404)
- Max. operating pressure at 20 °C: 16 bar
- Medium temperature (continuous): -20-85 °C
- Contour code connection 1: M
