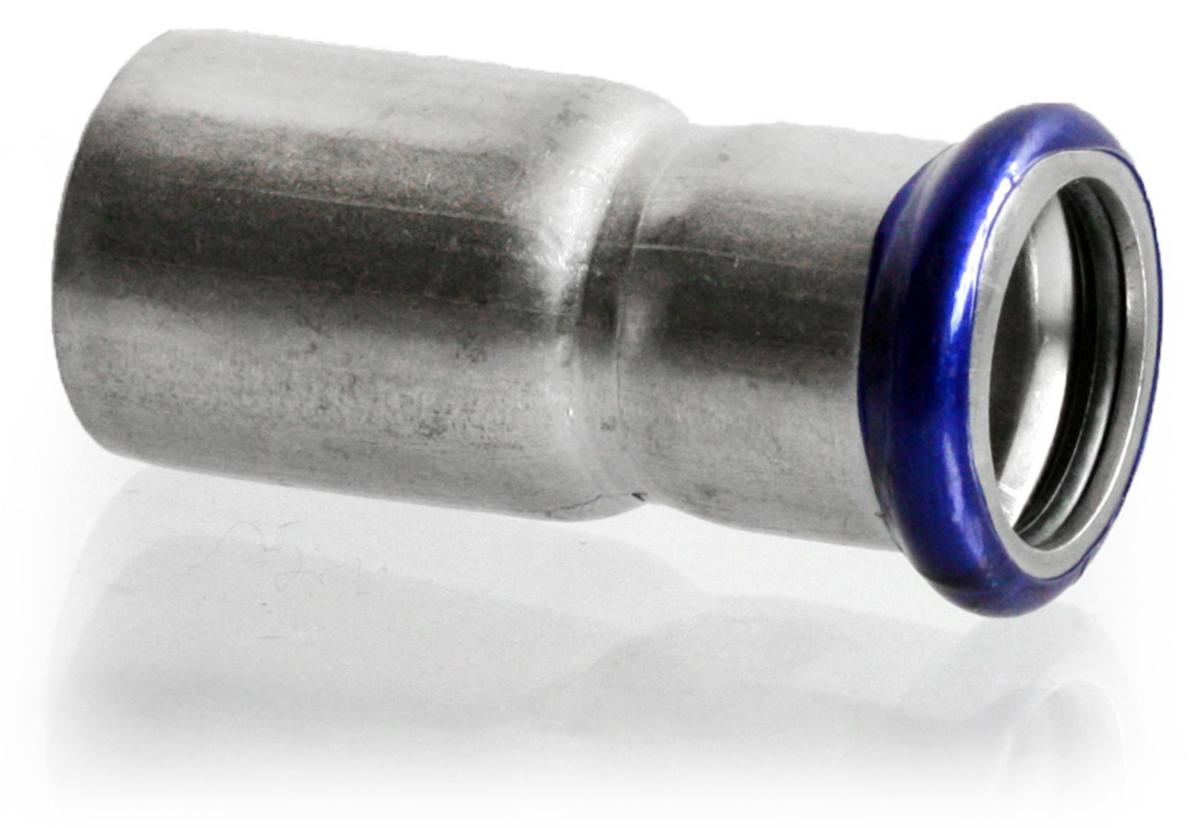

Reduction stainless 316L, A-press, a-collection
M54-M22 REDUCER WITH PLAIN END
Article number:
1442479
to see price and stock
Reducer with 1 sleeve in stainless steel 316L, with leakage indicator (LBP) in unpressed condition, O-ring in EPDM not resistant to oils and mineral greases, pressed with M-jaws.
The product has RISE type approval C900364, SINTEF 3737
The product has RISE type approval C900364, SINTEF 3737
- Article number: 1442479
- Ean no: 7333123068316
- Material class PAJ02B
Technical data
- Packagin Size: 1 ST/15 ST
- Outer pipe diameter connection 1: 54 mm
- Outer pipe diameter connection 2: 22 mm
- Connection 1: Slide end
- Connection 2: Press sleeve
- Material connection 1: Stainless steel
- Material connection 2: Stainless steel
- Material quality connection 1: Stainless steel 316 L (1.4404)
- Material quality connection 2: Stainless steel 316 L (1.4404)
- Max. operating pressure at 20 °C: 16 bar
- Medium temperature (continuous): -20-85 °C
- Contour code connection 2: M
- Eccentric: No
