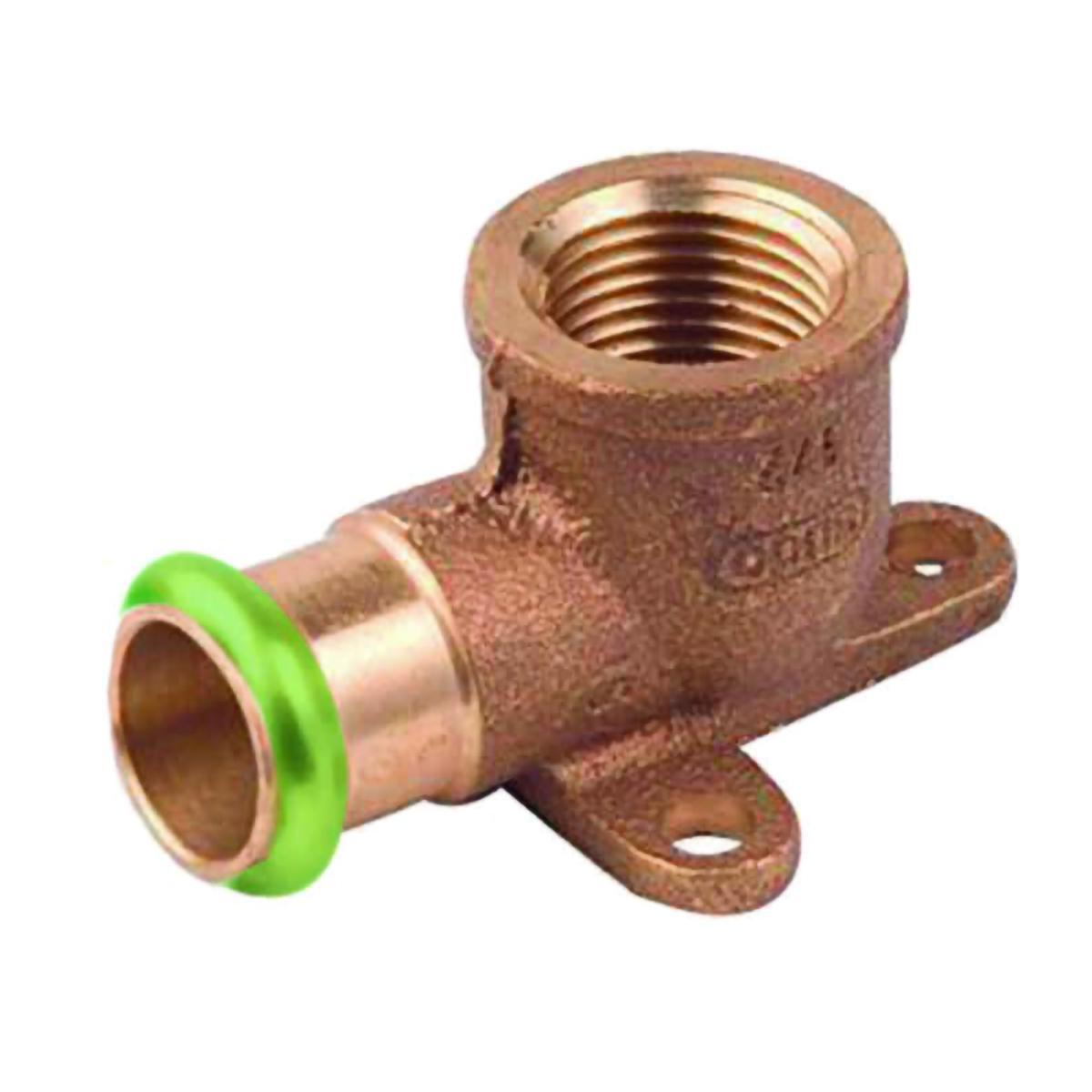

Valve bracket brass with internal thread A-press, copper, a-collection
15xR15 BACKPLATE ELBOW CU M A-PRESS-FEMALE THREAD
Article number:
1883834
to see price and stock
Valve bracket with 1 sleeve and female thread in lead free brass, with leak indicator (LBP) in unpressed condition, O-ring in EPDM not resistant to oils and mineral greases, pressed with M-jaws.
The press parts are intended for use with copper pipes according to EN1057.
The product has RISE type approval SC0642-15, STF EUFI290003572-TH2, SINTEF 3299
The press parts are intended for use with copper pipes according to EN1057.
The product has RISE type approval SC0642-15, STF EUFI290003572-TH2, SINTEF 3299
- Article number: 1883834
- Ean no: 7340080787341
- Material class PAH05B
Technical data
- Packagin Size: 1 ST/10 ST/40 ST/5120 ST
- Connection: Press sleeve
- Thread size tap connection: 1/2 inch
- Outer pipe diameter connection 1: 15 mm
- Outer pipe diameter connection 2: 15 mm
- Max. operating pressure at 20 °C: 16 bar
- Contour code: M
- Housing material: Brass
- Medium temperature (continuous): 0-75 °C
- Max. medium temperature (continuous): 110 °C
- REACH Date: 2025-06-27
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 0,4904 kgCO2e/ST
- REACH Information obligation: Yes
