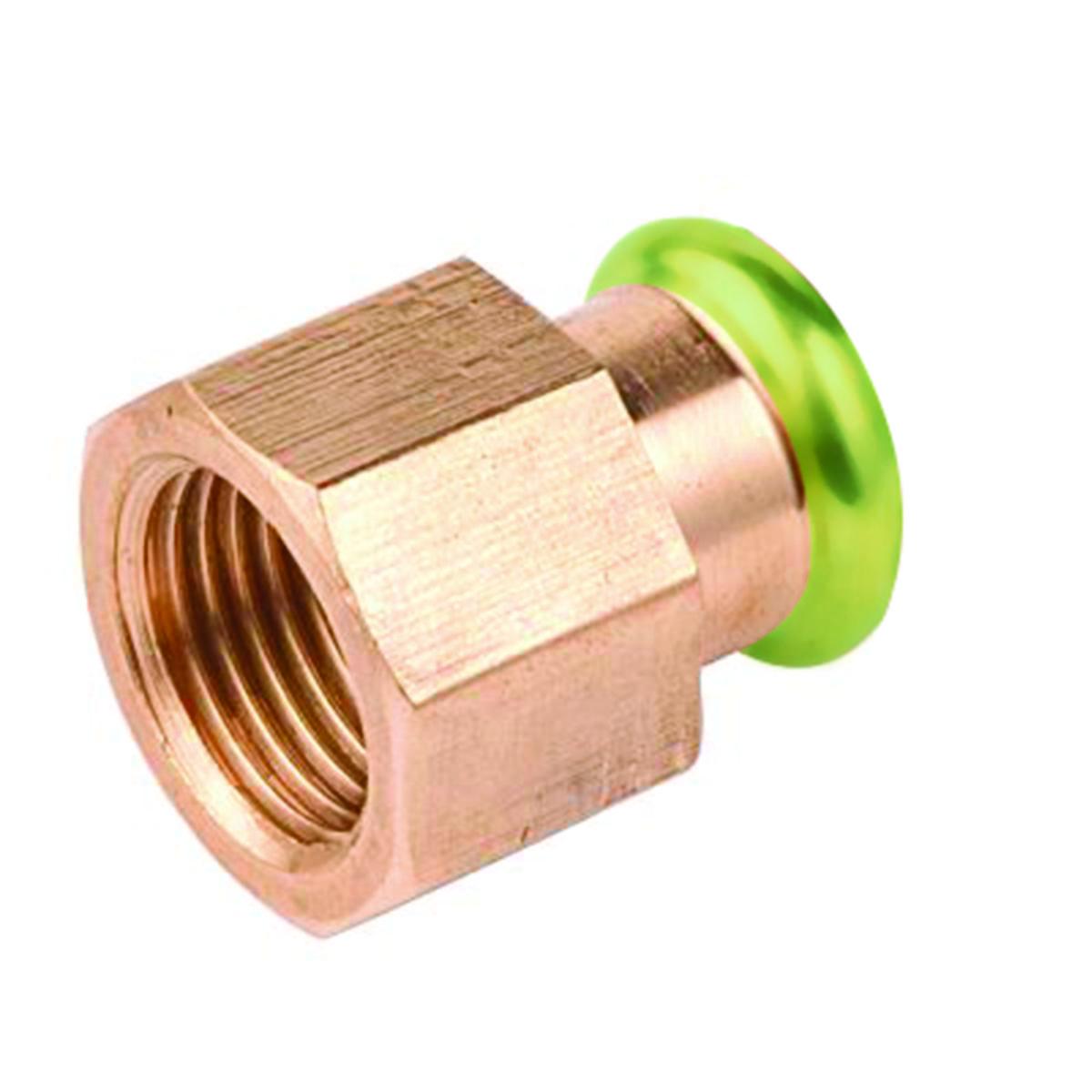

Transition sleeve brass with internal thread Type M Copper, a-collection
12xR10 ADAPTOR CU M A-PRESS-FEMALE THREAD
Article number:
1855020V
to see price and stock
Transition sleeve with female thread in lead free brass, with leak indicator (LBP) in unpressed condition, O-ring in EPDM not resistant to oils and mineral greases, pressed with M-jaws.
The press parts are intended for use with copper pipes according to EN1057.
The product has RISE type approval SC0642-15, STF EUFI290003572-TH2, SINTEF 3299
The press parts are intended for use with copper pipes according to EN1057.
The product has RISE type approval SC0642-15, STF EUFI290003572-TH2, SINTEF 3299
- Article number: 1855020V
- Ean no: 7340080787303
- Material class PAH05B
Technical data
- Packagin Size: 1 ST/10 ST/160 ST/20480 ST
- Outer pipe diameter connection 1: 12 mm
- Connection 1: Press sleeve
- Connection 2: Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
- Nominal diameter connection 2: 3/8 inch (10)
- Material connection 1: Brass
- Material connection 2: Brass
- Max. operating pressure at 20 °C: 16 bar
- Medium temperature (continuous): 0-100 °C
- Contour code connection 1: M
- REACH Date: 2025-06-27
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 0,1567 kgCO2e/ST
- REACH Information obligation: Yes
