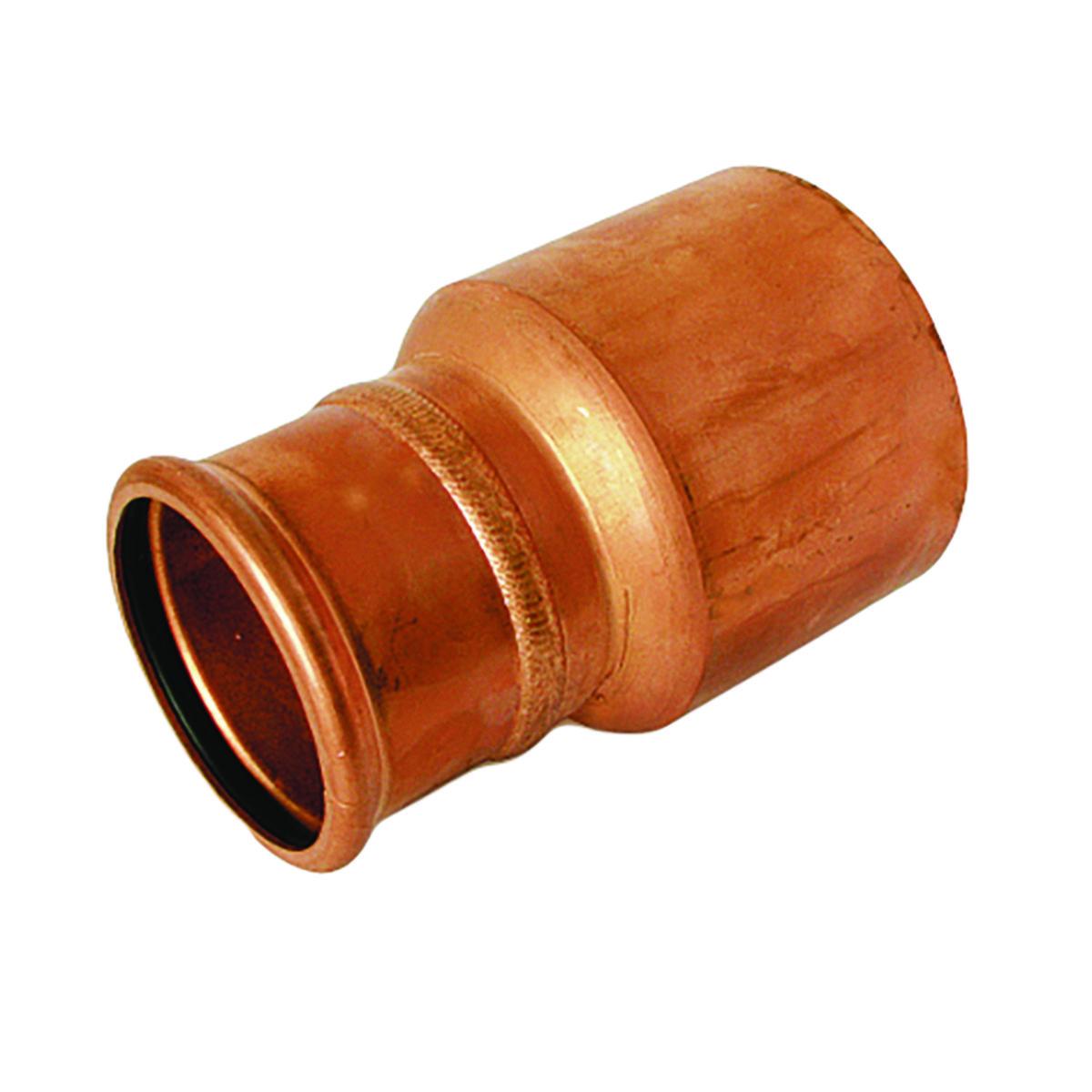

Reduction with 1 socket Type M copper, a-collection
88.9x54 RED. WITH PLAIN END CU M. A-PRESS
Article number:
1767993
to see price and stock
Reducer with 1 sleeve in copper alloy, with leak indicator (LBP) in unpressed condition, O-ring in EPDM not resistant to oils and mineral greases, pressed with M-jaws.
The press parts are intended for use with copper pipes according to EN1057.
The product has RISE type approval SC0642-15, STF EUFI290003572-TH1, SINTEF 3299
The press parts are intended for use with copper pipes according to EN1057.
The product has RISE type approval SC0642-15, STF EUFI290003572-TH1, SINTEF 3299
- Article number: 1767993
- Ean no: 7340080798101
- Material class PAH02B
- This is an alternative to item 1766516 1766516
Technical data
- Packagin Size: 1 ST/4 ST/512 ST
- Outer pipe diameter connection 1: 54 mm
- Outer pipe diameter connection 2: 88.9 mm
- Connection 1: Press sleeve
- Connection 2: Slide end
- Material connection 1: Copper
- Material connection 2: Copper
- Max. operating pressure at 20 °C: 16 bar
- Medium temperature (continuous): 0-110 °C
- Contour code connection 1: M
- Reducing: Yes
- GWP-tot (A1-A3): 3,0206 kgCO2e/ST
