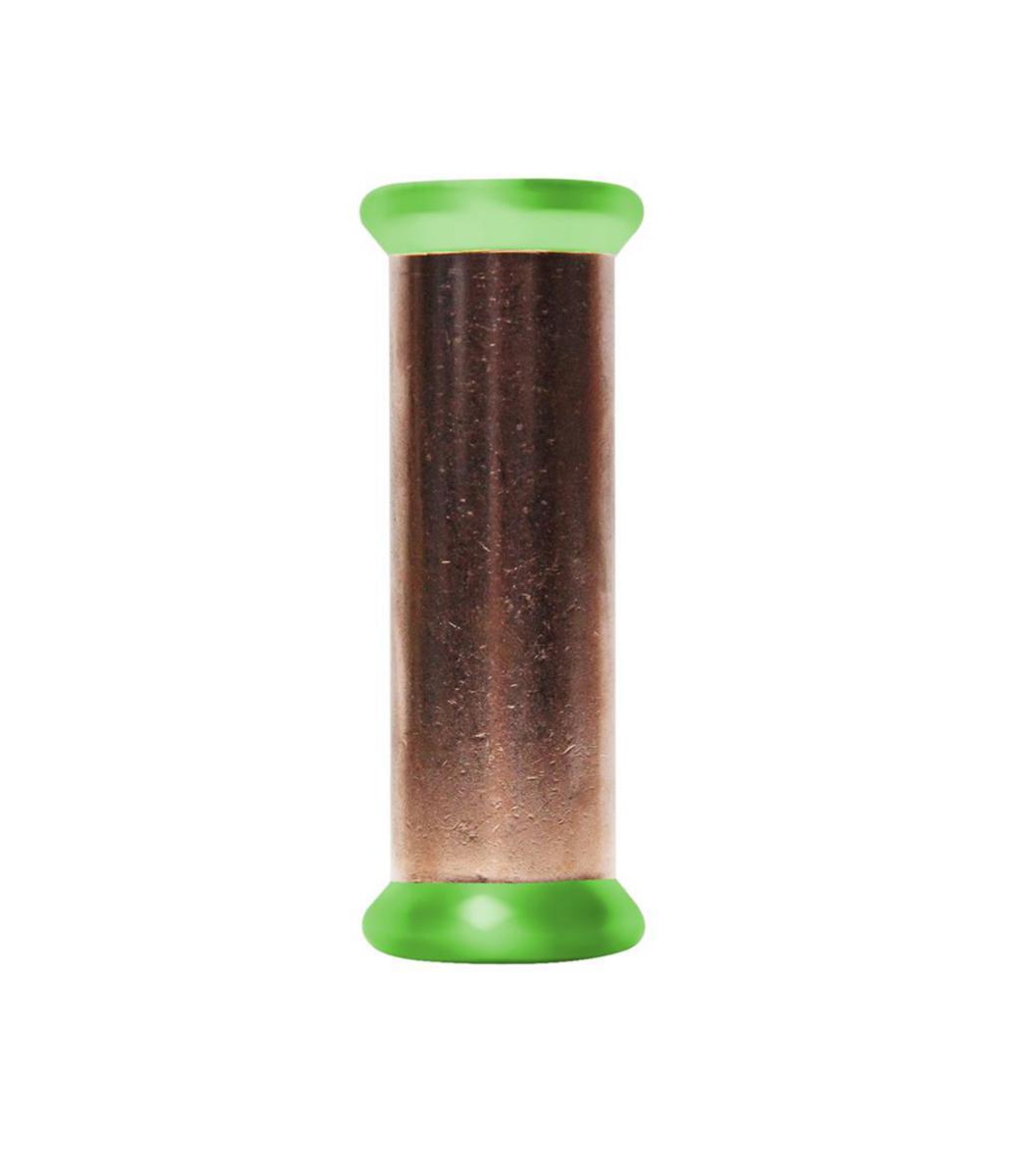

Push fitting A-press Type M copper, a-collection
18 SLIP COUPLING CU M A-PRESS
Article number: Suppl. article no:
1541502
111ENM18AL
to see price and stock
Sliding sleeve in copper alloy, with leak indicator (LBP) in unpressed condition, O-ring in EPDM not resistant to oils and mineral greases, pressed with M-jaws.
The press parts are intended for use with copper pipes according to EN1057.
The product has RISE type approval SC0642-15, STF EUFI290003572-TH1, SINTEF 3299
The press parts are intended for use with copper pipes according to EN1057.
The product has RISE type approval SC0642-15, STF EUFI290003572-TH1, SINTEF 3299
- Article number: 1541502
- Suppl. article no: 111ENM18AL
- Ean no: 7340080737445
- Material class PAH05B
- This is an alternative to item 1768110 1768110
Technical data
- Packagin Size: 1 ST/10 ST/80 ST/5120 ST
- Outer pipe diameter connection 1: 18 mm
- Outer pipe diameter connection 2: 18 mm
- Connection 1: Press sleeve
- Connection 2: Press sleeve
- Material connection 1: Copper
- Material connection 2: Copper
- Max. operating pressure at 20 °C: 16 bar
- Medium temperature (continuous): 0-100 °C
- Contour code connection 1: M
- Contour code connection 2: M
- GWP-tot (A1-A3): 0,3673 kgCO2e/ST
