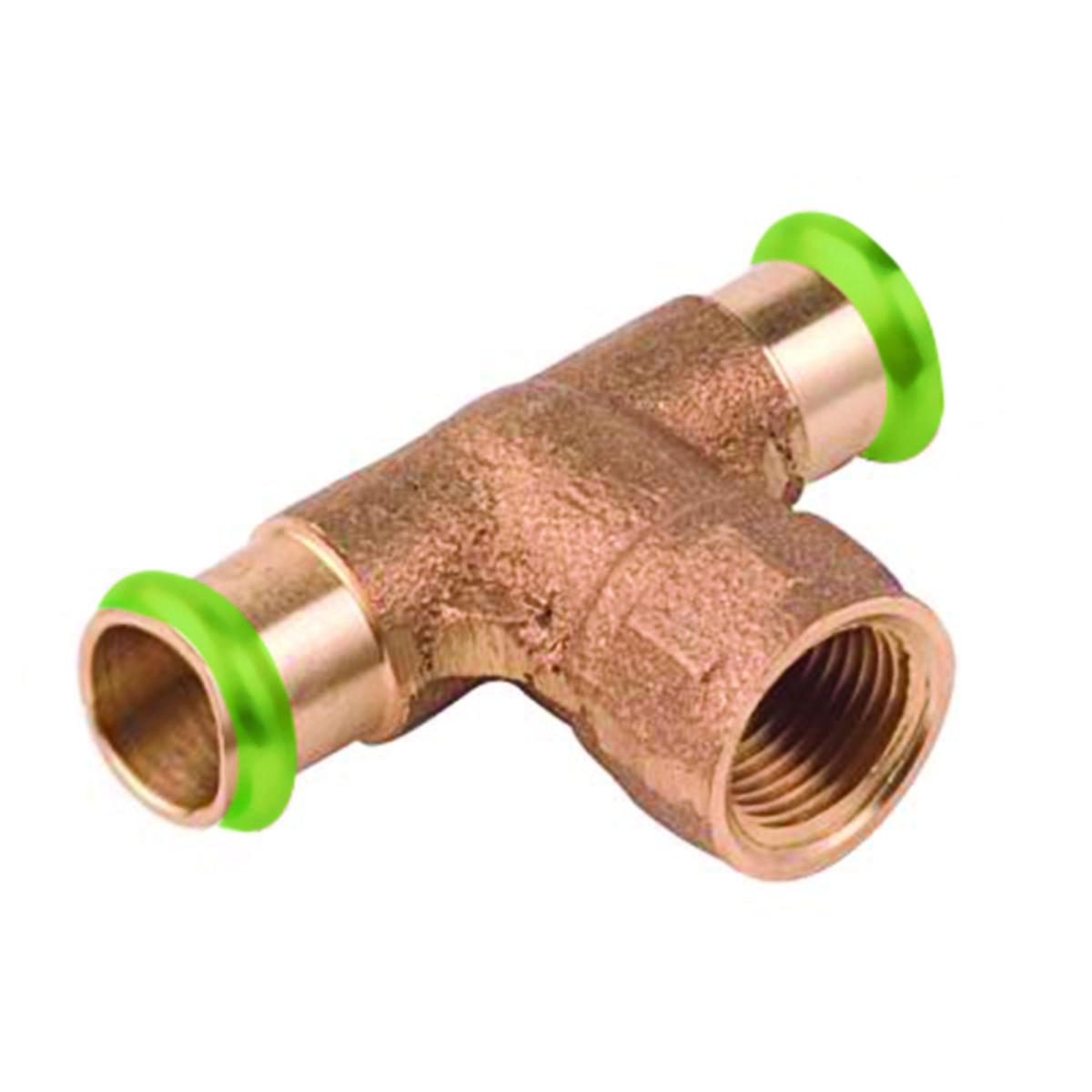

T-pipe brass with internal thread branch Type M copper, a-collection
15R15 TEE CU M A-PRESS-FEMALE THREAD
Article number:
1185429
to see price and stock
T-piece with female branch in copper alloy, with leak indicator (LBP) in unpressed condition, O-ring in EPDM not resistant to oils and mineral greases, pressed with M-jaws.
The press parts are intended for use with copper pipes according to EN1057.
The product has RISE type approval SC0642-15, STF EUFI290003572-TH1, SINTEF 3299
The press parts are intended for use with copper pipes according to EN1057.
The product has RISE type approval SC0642-15, STF EUFI290003572-TH1, SINTEF 3299
- Article number: 1185429
- Ean no: 7340080745891
- Material class PAH05B
Technical data
- Packagin Size: 1 ST/10 ST/120 ST/5760 ST
- Outer pipe diameter connection 1: 15 mm
- Outer pipe diameter connection 3: 15 mm
- Nominal diameter connection 2: 1/2 inch (15)
- Connection 1: Press sleeve
- Connection 2: Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
- Connection 3: Press sleeve
- Contour code connection 1: M
- Contour code connection 3: M
- Medium temperature (continuous): 100 °C
- Material connection 1: Brass
- Material connection 2: Brass
- Material connection 3: Brass
- Max. operating pressure at 20 °C: 16 bar
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- REACH Date: 2025-06-27
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 0,4449 kgCO2e/ST
- REACH Information obligation: Yes
