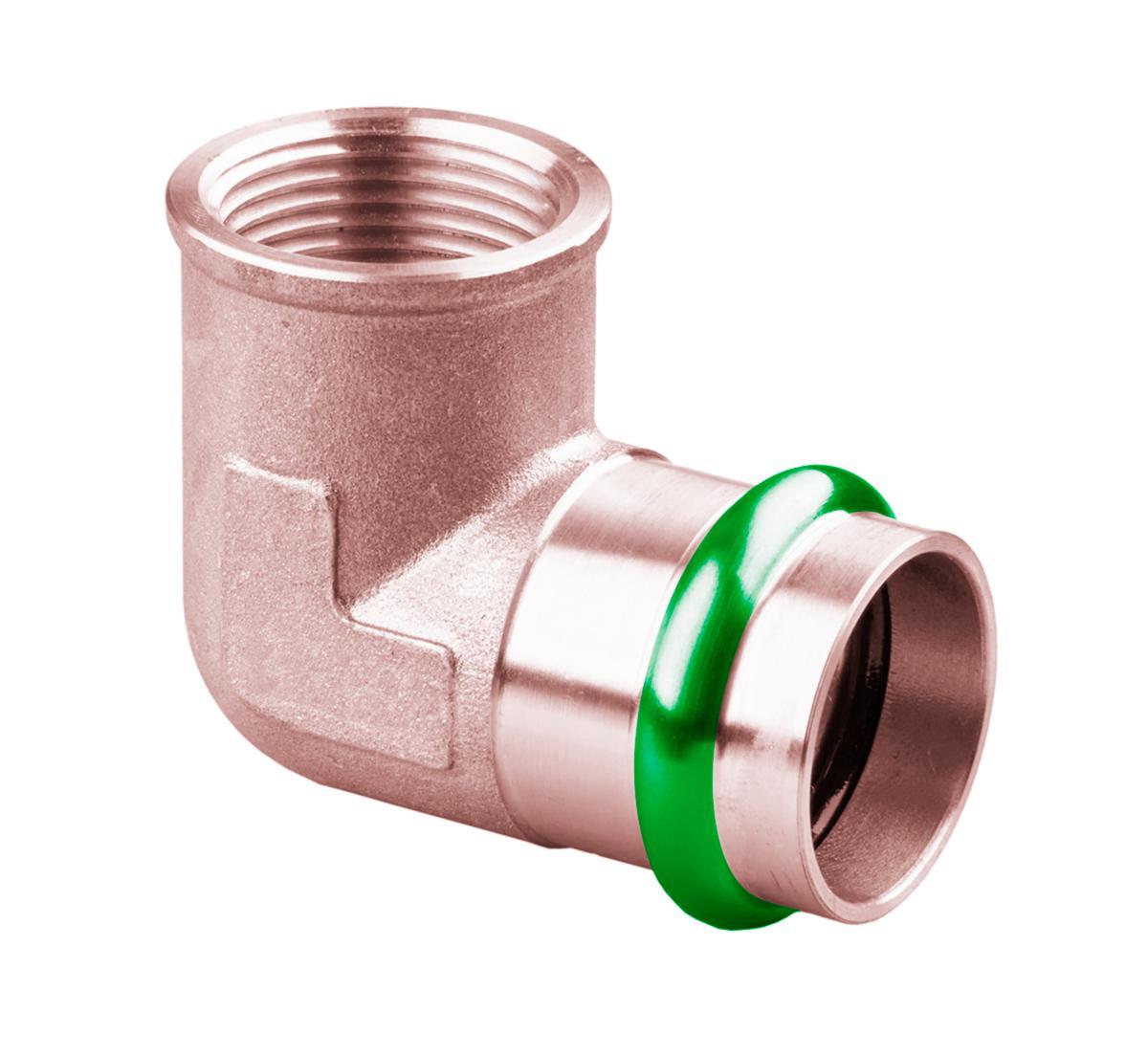

Bend 90° with 1 socket/external thread Type V, a-collection
15xR15 ELBOW 90° CU V A-PRESS-FEMALE THREAD
Article number:
1767661
to see price and stock
Bend 90° with one sleeve and female thread,in lead free brass, with leakage indicator (LBP) in unpressed condition, O-ring in EPDM not resistant to oils and mineral greases, pressed with V-jaws.
The press parts are intended for use with copper pipes according to EN1057.
The product has RISE type approval SC0142-18, STF EUFI290003572-TH2.
The press parts are intended for use with copper pipes according to EN1057.
The product has RISE type approval SC0142-18, STF EUFI290003572-TH2.
- Article number: 1767661
- Ean no: 7333123864734
- Material class PAH01B
Technical data
- Packagin Size: 1 ST/10 ST/60 ST/7680 ST
- Outer pipe diameter connection 1: 15 mm
- Outer pipe diameter connection 2: 15 mm
- Connection 1: Press sleeve
- Connection 2: Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
- Nominal diameter connection 2: 1/2 inch (15)
- Material connection 1: Brass
- Material connection 2: Brass
- Max. operating pressure at 20 °C: 16 bar
- Medium temperature (continuous): 0-110 °C
- Contour code connection 1: V
- Contour code connection 2: V
- Material quality connection 1: CuSn5Zn5Pb2
- Material quality connection 2: CuSn5Zn5Pb2
- Bend angle: 90 °
- REACH Date: 2025-06-27
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 0,2760 kgCO2e/ST
- REACH Information obligation: Yes
