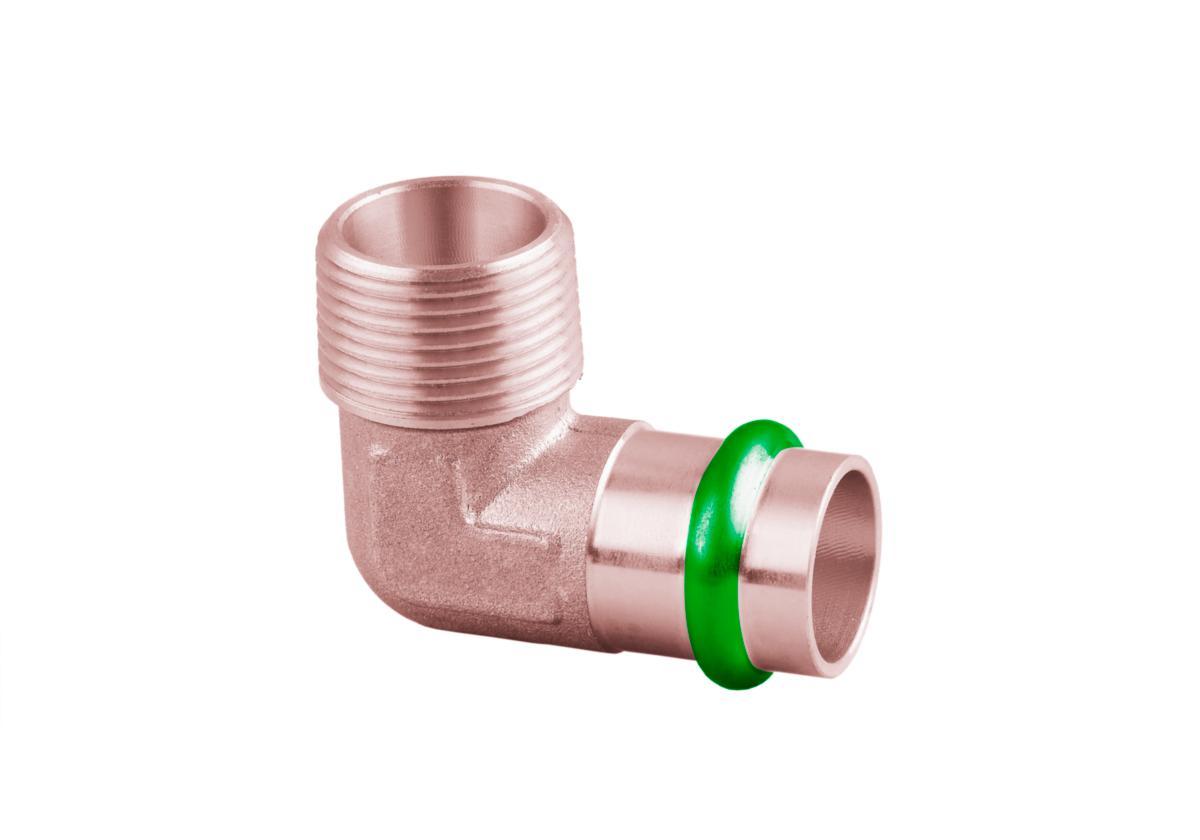

Bend 90° with external thread Type V, a-collection
28xR25 A-PRESS CU ELBOW 90° TYPE V MALE THREAD
Article number: Suppl. article no:
1189585
1189585
to see price and stock
Bend 90° with one sleeve and male thread in lead free brass, with leakage indicator (LBP) in unpressed condition, O-ring in EPDM not resistant to oils and mineral greases, pressed with V-jaws.
The press parts are intended for use with copper pipes according to EN1057.
The product has RISE type approval SC0142-18, STF EUFI290003572-TH2.
The press parts are intended for use with copper pipes according to EN1057.
The product has RISE type approval SC0142-18, STF EUFI290003572-TH2.
- Article number: 1189585
- Suppl. article no: 1189585
- Ean no: 7333123057754
- Material class PAH01B
Technical data
- Packagin Size: 1 ST/10 ST/50 ST/2400 ST
- Outer pipe diameter connection 1: 28 mm
- Connection 1: Press sleeve
- Connection 2: External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
- Nominal diameter connection 2: 1 inch (25)
- Material connection 1: Brass
- Material connection 2: Brass
- Max. operating pressure at 20 °C: 16 bar
- Medium temperature (continuous): 0-110 °C
- Contour code connection 1: V
- Material quality connection 1: CuSn5Zn5Pb2
- Material quality connection 2: CuSn5Zn5Pb2
- Bend angle: 90 °
- REACH contains candidate substances: Bly
- REACH Date: 2025-06-27
- REACH Information obligation: Yes
