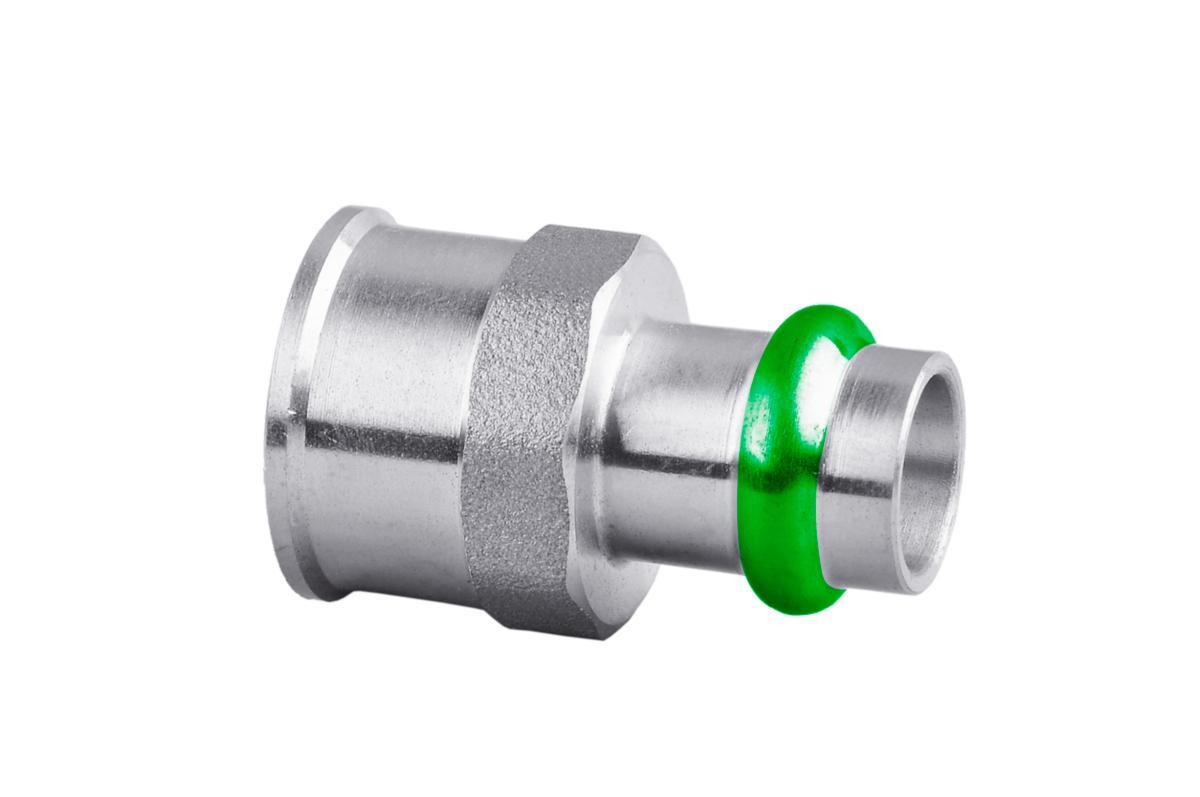

Transition sleeve with internal thread, chrome-plated type V, A-press, a-collection
15xR15 ADAPTOR CU V CHROME A-PRESS-FEMALE THREAD
Article number:
1767945
to see price and stock
Transition sleeve with female thread in chromed lead free brass, with leakage indicator (LBP) in unpressed condition, O-ring in EPDM not resistant to oils and mineral greases, pressed with V-jaws.
The press parts are intended for use with copper pipes according to EN1057.
The product has RISE type approval SC0142-18, STF EUFI290003572-TH2.
The press parts are intended for use with copper pipes according to EN1057.
The product has RISE type approval SC0142-18, STF EUFI290003572-TH2.
- Article number: 1767945
- Ean no: 7340080798767
- Material class PAH03B
Technical data
- Packagin Size: 1 ST/10 ST/300 ST/14400 ST
- Outer pipe diameter connection 1: 15 mm
- Connection 1: Press sleeve
- Connection 2: Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
- Nominal diameter connection 2: 1/2 inch (15)
- Material connection 1: Copper
- Material connection 2: Copper
- Max. operating pressure at 20 °C: 16 bar
- Medium temperature (continuous): 0-110 °C
- Contour code connection 1: V
- Contour code connection 2: V
- Shape: Straight
- Surface protection connection 1: Chromium-plated
- Surface protection connection 2: Chromium-plated
- REACH Date: 2025-06-27
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 0,1172 kgCO2e/ST
- REACH Information obligation: Yes
