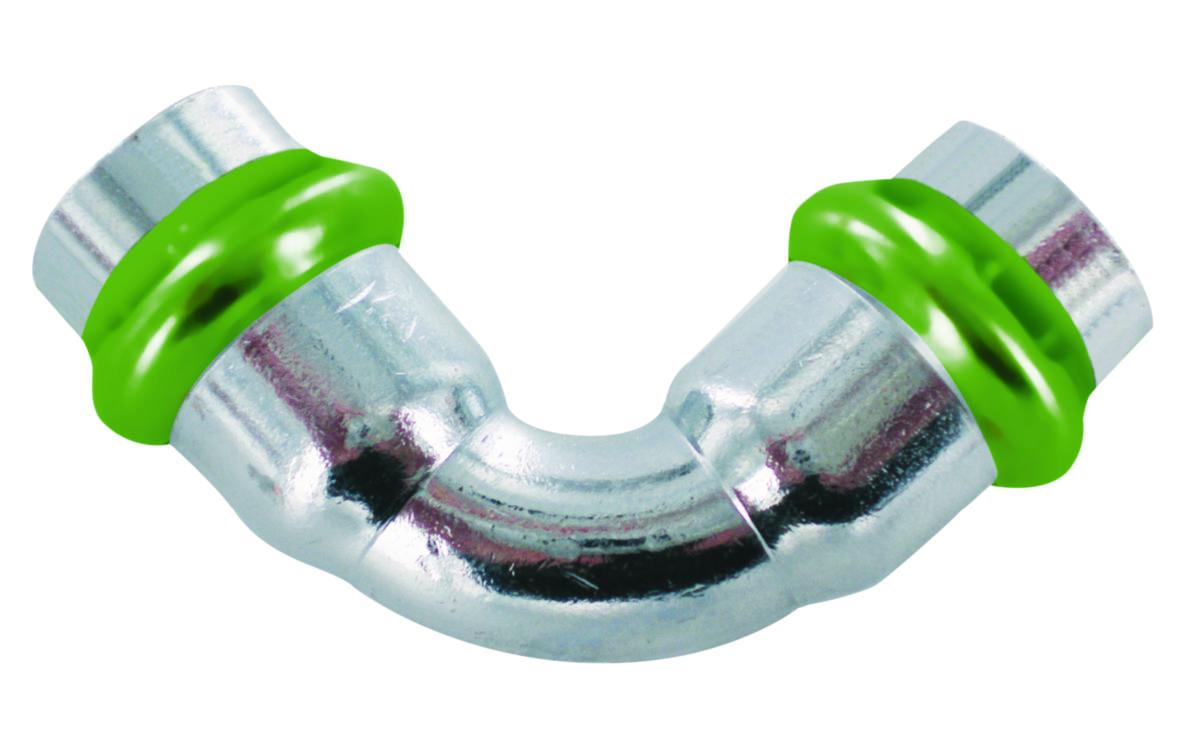

Bend 90° with 2 sockets A-press, chrome-plated, type V, a-collection
22 ELBOW 90GR CU V CHROME A-PRESS
Article number:
1189447
to see price and stock
Bend 90° with 2 sleeves in chromed copper alloy, with leakage indicator (LBP) in unpressed condition, O-ring in EPDM not resistant to oils and mineral greases, pressed with V-jaws.
The press parts are intended for use with copper pipes according to EN1057.
The product has RISE type approval SC0142-18, STF EUFI290003572-TH1.
The press parts are intended for use with copper pipes according to EN1057.
The product has RISE type approval SC0142-18, STF EUFI290003572-TH1.
- Article number: 1189447
- Ean no: 7340080798934
- Material class PAH03B
Technical data
- Packagin Size: 1 ST/10 ST/20 ST/2560 ST
- Outer pipe diameter connection 1: 22 mm
- Outer pipe diameter connection 2: 22 mm
- Connection 1: Press sleeve
- Connection 2: Press sleeve
- Material connection 1: Copper
- Material connection 2: Copper
- Max. operating pressure at 20 °C: 16 bar
- Medium temperature (continuous): -20-110 °C
- Contour code connection 1: V
- Contour code connection 2: V
- Bend angle: 90 °
- Surface protection connection 1: Chromium-plated
- Surface protection connection 2: Chromium-plated
