EZZE

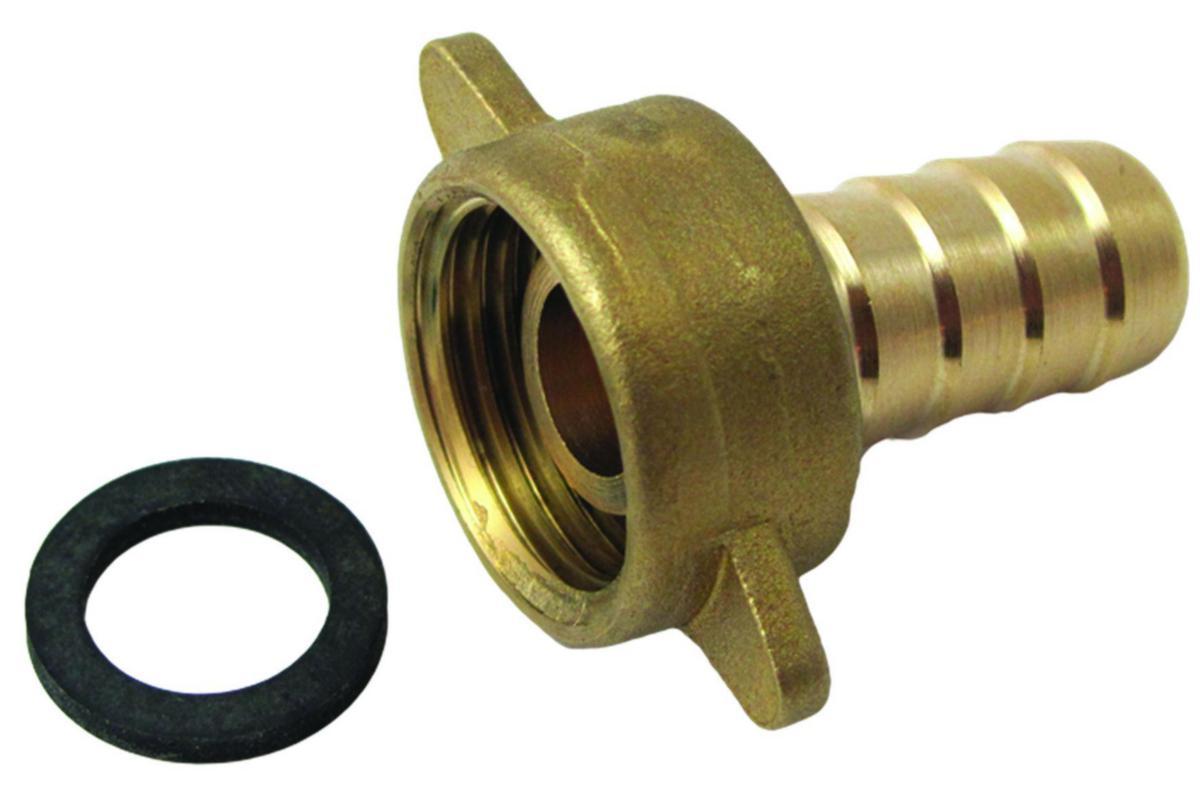

Hose coupling half internal thread
G20x1/2" HOSE NIPPLE FEMALE FOR HOSE 14MM ID. WING NUT
Article number:
2174621
to see price and stock
Internal thread
- Article number: 2174621
- Ean no: 7391653746210
- Material class PAE17A
Technical data
- Packagin Size: 1 ST/10 ST
- Connection 2: Union nut
- Nominal diameter connection 1: 3/4 inch (20)
- Nominal diameter connection 2: 1/2 inch (15)
- Outer pipe diameter connection 1: 26.4 mm
- Outer pipe diameter connection 2: 20.9 mm
- Bend angle: 0 °
- Shape: Straight
- Reducing: Yes
- Material connection 2: Brass
- Material connection 1: Brass
- Max. operating pressure at 20 °C: 16 bar
- Material quality connection 2: CuZn39Pb3 (CW614N)
- Material quality connection 1: CuZn39Pb3 (CW614N)
- With de-aerator: No
- With drain valve: No
- With buffer stud: No
- With sealing rings/gaskets: Yes
- Capped: No
- Model: 2-part
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Surface protection connection 1: Untreated
- Surface protection connection 2: Untreated
- System specific: No
- Wrench width union nut: 30 mm
- Length of connection 2: 14 mm
- Length of connection 1: 25.5 mm
- REACH Date: 2022-08-25
- REACH contains candidate substances: Bly
- Material: Brass
- REACH Information obligation: Yes
