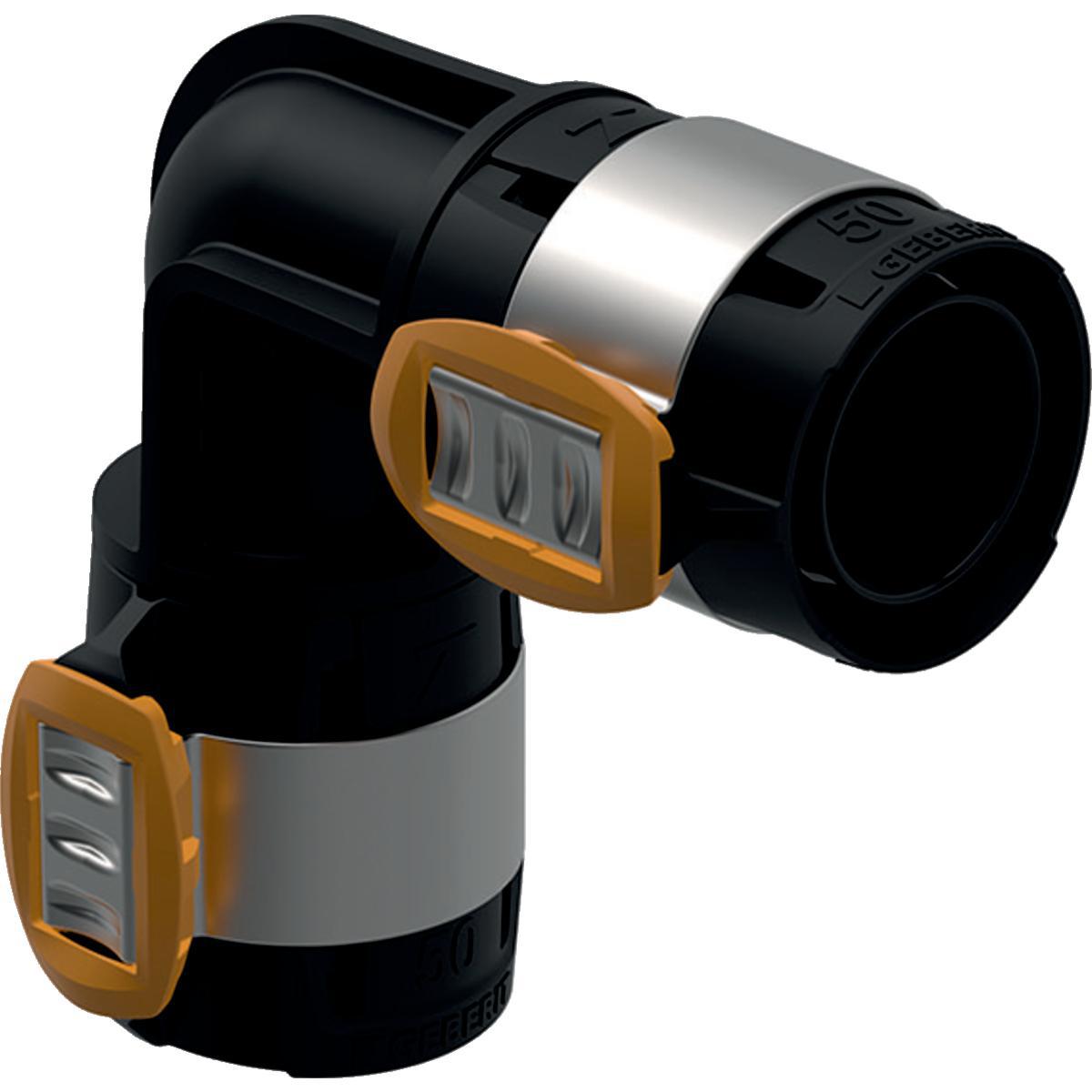

Bend 90° FlowFit, Geberit
FLOWFIT ELBOW 90° 63MM, PPSU GEBERIT
Article number: Suppl. article no:
2253711
620.076.00.1
to see price and stock
- Article number: 2253711
- Suppl. article no: 620.076.00.1
- Ean no: 4025416609377
- Material class PAQ170
- This is an alternative to item 1875036
Technical data
- Packagin Size: 1 PCS/10 PCS
- Outer pipe diameter connection 1: 63 mm
- Nominal diameter connection 2: DN 50
- Outer pipe diameter connection 2: 63 mm
- Nominal diameter connection 1: DN 50
- Bend angle: 90 °
- Material connection 2: Polyphenylsulfone (PPSU)
- Material connection 1: Polyphenylsulfone (PPSU)
- Connection 1: Press sleeve
- Connection 2: Press sleeve
- Shape: Bend
- Reducing: No
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- Material quality connection 2: Other
- Material quality connection 1: Other
- With de-aerator: No
- With drain valve: No
- With sealing rings/gaskets: Yes
- Capped: Yes
- System specific: Yes
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Surface protection connection 1: Untreated
- Surface protection connection 2: Untreated
- Wall thickness, connection 1: 2.5 mm
- Working length connection 2: 61 mm
- Working length connection 1: 61 mm
- Wall thickness, connection 2: 2.5 mm
- Length of connection 2: 125 mm
- Length of connection 1: 125 mm
- High tensile strength: Yes
- Main colour fitting: Black
- Contour code connection 1: Other
- Contour code connection 2: Other
- With connection indicator: No
- With thermal insulation: No
- REACH Date: 2021-10-02
- GWP-tot (A1-A3): 5,02 kgCO2e/ST
- REACH Information obligation: No
