LK
Coupling set E2, LK

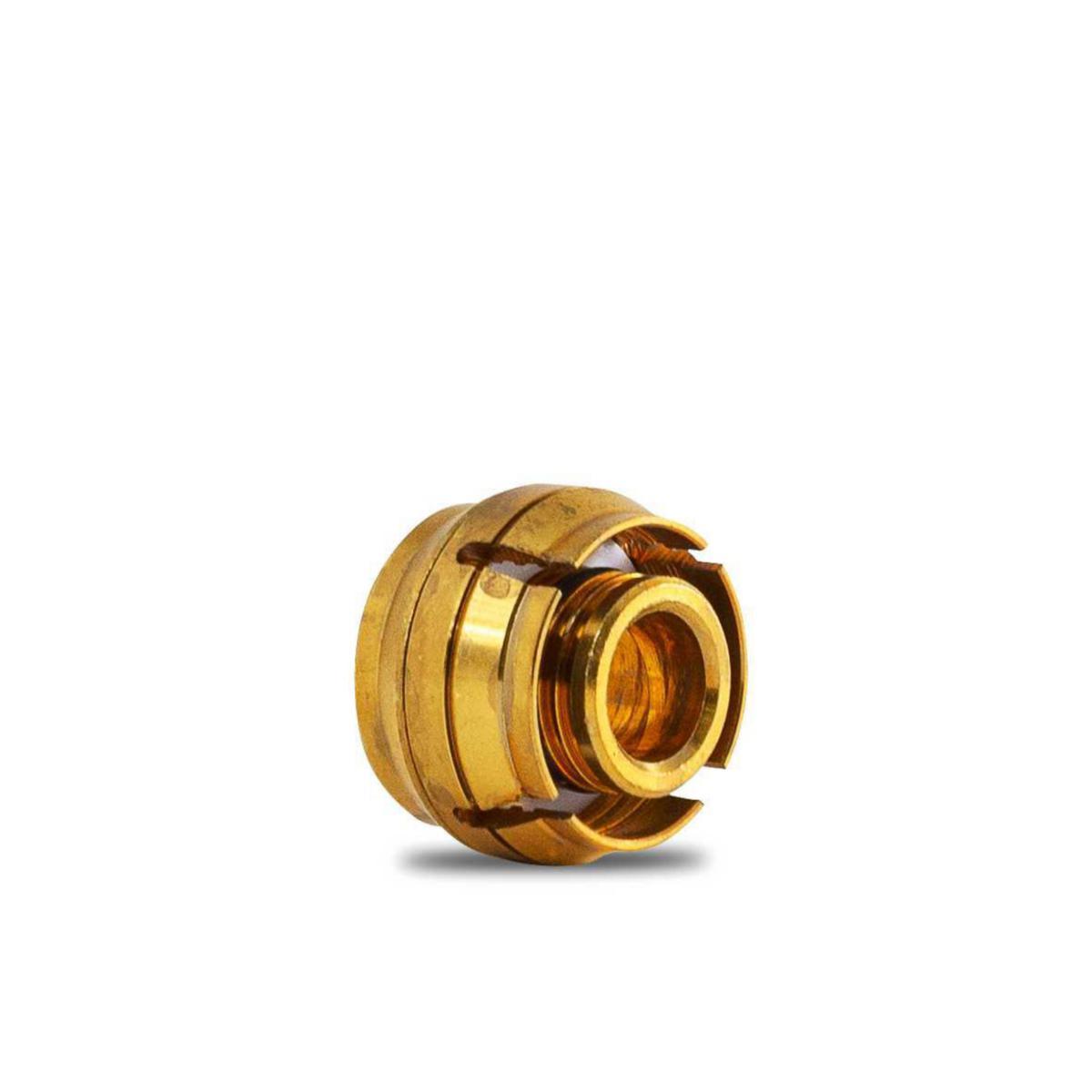

PI TUBE ADAPTER AX20 E2
Article number: Suppl. article no:
4814456
4814456
to see price and stock
For connecting LK PAL and PE-X Universal pipes to Conex coupling or equivalent. Used together with the existing coupling's nut in size 22, 28 or 35. Clamping ring and support sleeve integrated as a unit for easy and smooth installation.
- Article number: 4814456
- Suppl. article no: 4814456
- Ean no: 7331590067351
- Replaces art.nbr: 4814397
- Material class PAM120
Technical data
- Packagin Size: 1 PCS/10 PCS/300 PCS
- Outer pipe diameter: 20 mm
- Suitable for wall thickness: 2.5 mm
- Suitable for aluminium tube: No
- Suitable for plastic multi-layer pipes: Yes
- Suitable for copper tube: No
- Suitable for plastic tube: Yes
- Suitable for stainless steel tube: No
- Suitable for steel tube: No
- Material compression ring: Brass
- Material gasket: Rubber
- Material quality: Dezincification resistant brass (DZR)
- With gasket: Yes
- With thrust bushing: Yes
- System specific: Yes
- Type approval according to BBR/EKS: Yes
- REACH Date: 2026-01-21
- REACH Information obligation: No
