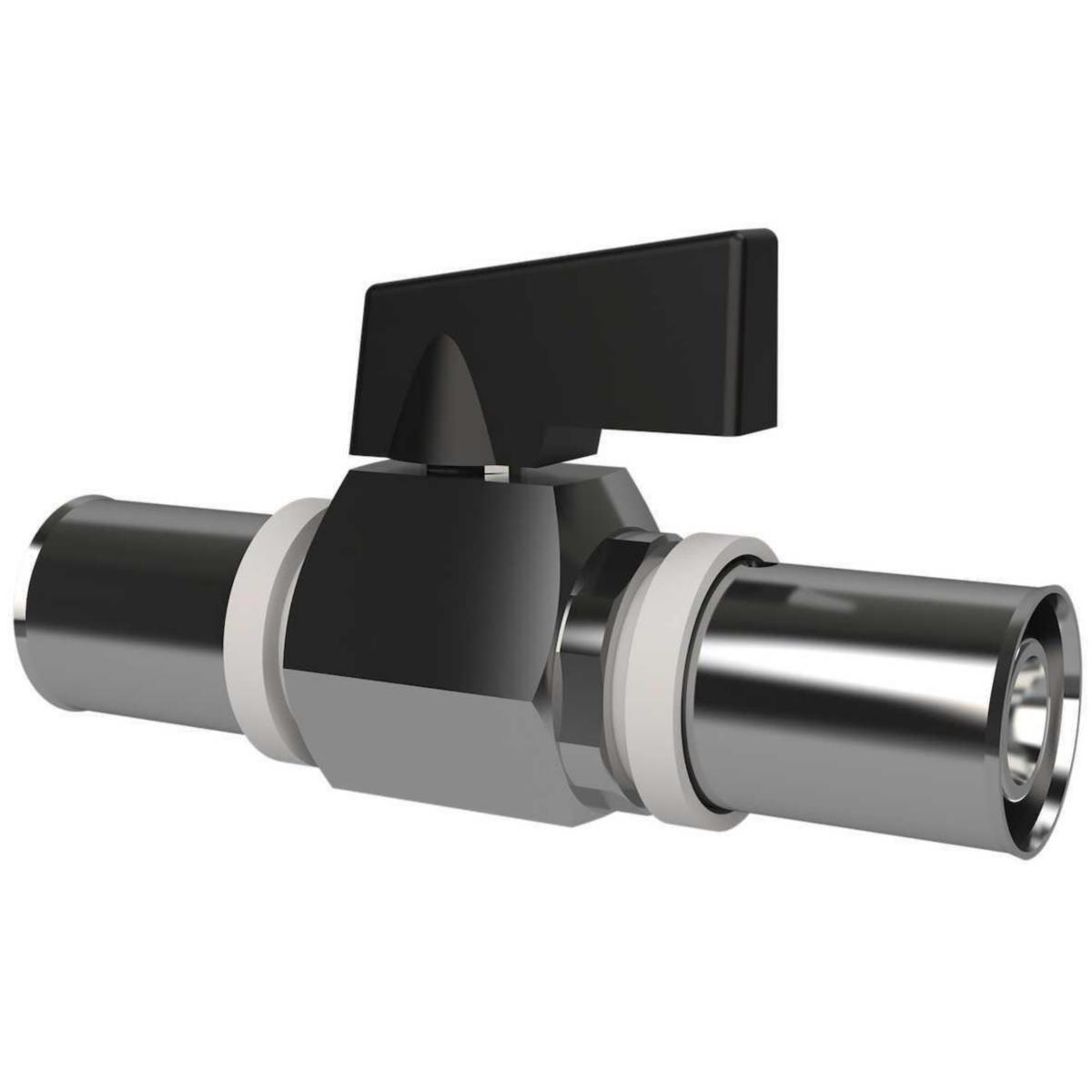

Ball Valve R25, Accessory for Heating Circuit Distributor, LK
PRESSPEX BALL VALVE AX16 LK
Article number: Suppl. article no:
4810015
4810015
to see price and stock
Press coupling for joining LK PAL and LK PE-X Universal pipe.
- Article number: 4810015
- Suppl. article no: 4810015
- Ean no: 7331590054207
- Material class PAM12B
Technical data
- Packagin Size: 1 ST/112 ST
- Outer pipe diameter connection 1: 16 mm
- Outer pipe diameter connection 2: 16 mm
- Nominal diameter connection 1: Other
- Nominal diameter connection 2: Other
- Article compression class: PN 10
- Connection 1: Press sleeve
- Connection 2: Press sleeve
- Housing material: Brass
- Medium temperature (continuous): 0-70 °C
- Surface protection housing: Nickel-plated
- Fire-safe: No
- FM quality mark: No
- Grease-free: No
- Full bore: Yes
- Housing construction: 1-part
- LPCB quality mark: No
- Material ball: Brass
- Material ball seal: Polytetrafluoroethylene (PTFE)
- Material primary spindle seal: Ethylene-propylene diene monomer rubber (EPDM)
- Material secondary spindle seal: NBR (nitrile rubber)
- Material quality: Dezincification resistant brass (DZR)
- Max. pressure difference at 20 °C: 10 bar
- With coupling connection 1: Yes
- With coupling connection 2: Yes
- Medically clean: No
- Model: Straight
- Material spindle: Brass
- Sealing: Ethylene-propylene diene monomer rubber (EPDM)
- UL quality mark: No
- ULC quality mark: No
- KIWA certified: Yes
- Operation: Turn button
- VdS quality mark: No
- With drain valve: No
- With drain possibility (connection): No
- With non-return valve: No
- With filter: No
- With thermometer: No
- Contour code connection 1: TH
- REACH Date: 2025-06-25
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 0,4526 kgCO2e/ST
- REACH Information obligation: Yes
