LK

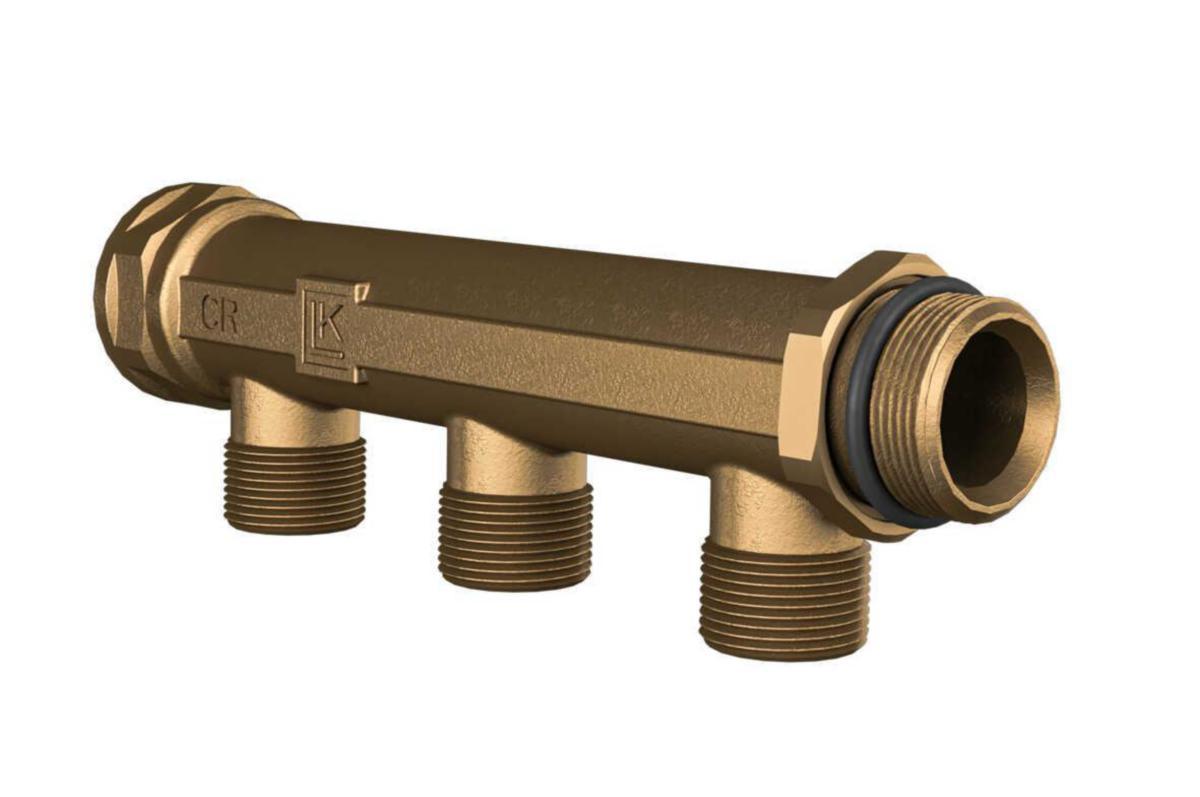

Distributor UNI E2, LK
MANIFOLD UNI 3 E2 LK SYSTEMS
Article number: Suppl. article no:
1882774
1882774
to see price and stock
Surface-mounted manifold for heating and tap water systems. Mounted on the wall or ceiling in LK Manifold Console or in LK Manifold Cabinet UNI. Made of dezincification-resistant lead-free brass.
Manifold UNI 1-G15, 2-G15, 3-G15, 4-G15 and 5-G15 have connection G20 (internal and external thread EuroCone) for the supply line and connection G15 c/c 50 mm external gg Conex/EuroCone on the branch.
All types have an O-ring seal on the external G20 side for the supply line, which facilitates the assembly of 2 manifolds without additional sealing.
Pipes X16, A16, X20 and A20 can be connected to the branch with LK PressPex Press connection coupling.
Manifold UNI 1-G15, 2-G15, 3-G15, 4-G15 and 5-G15 have connection G20 (internal and external thread EuroCone) for the supply line and connection G15 c/c 50 mm external gg Conex/EuroCone on the branch.
All types have an O-ring seal on the external G20 side for the supply line, which facilitates the assembly of 2 manifolds without additional sealing.
Pipes X16, A16, X20 and A20 can be connected to the branch with LK PressPex Press connection coupling.
- Article number: 1882774
- Suppl. article no: 1882774
- Ean no: 7331590066910
- Replaces art.nbr: 1882378
- Material class PAM120
Technical data
- Packagin Size: 1 PCS/10 PCS
- Nominal diameter connection 1: 3/4 inch (20)
- Nominal diameter connection 2: 3/4 inch (20)
- Nominal diameter branches: 1/2 inch (15)
- Number of branches: 3
- Number of branching directions: 1
- Distance between offset: 50 mm
- Length distributor: 160 mm
- Material: Brass
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Deviant distance between branches: No
- Connection branches: External thread cylindrical BSPP-G (ISO 228-1)
- Material quality: Dezincification resistant brass (DZR)
- Article compression class: PN 10
- Mounting method: Surface mounting
- Suitable for cooling water: Yes
- Suitable for tap water: Yes
- Suitable for central heating water: Yes
- Shape: Throughflow with straight branches
- Venturi nozzle: None
- Suitable for glycol: Yes
- Suitable for compressed air: Yes
- With de-aeration: No
- With shut-off valve: No
- With legs: No
- With insulation: No
- With mounting material: No
- With wall-mounting bracket: No
- Model: Single
- System specific: No
- Surface protection: Untreated
- KOMO certified: No
- Max. medium temperature (continuous): 70 °C
- With adjustable floor legs: No
- With fill- and drain valve: No
- Suitable for gas: No
- With backflow safeguard: No
- REACH Date: 2025-04-07
- REACH Information obligation: No
