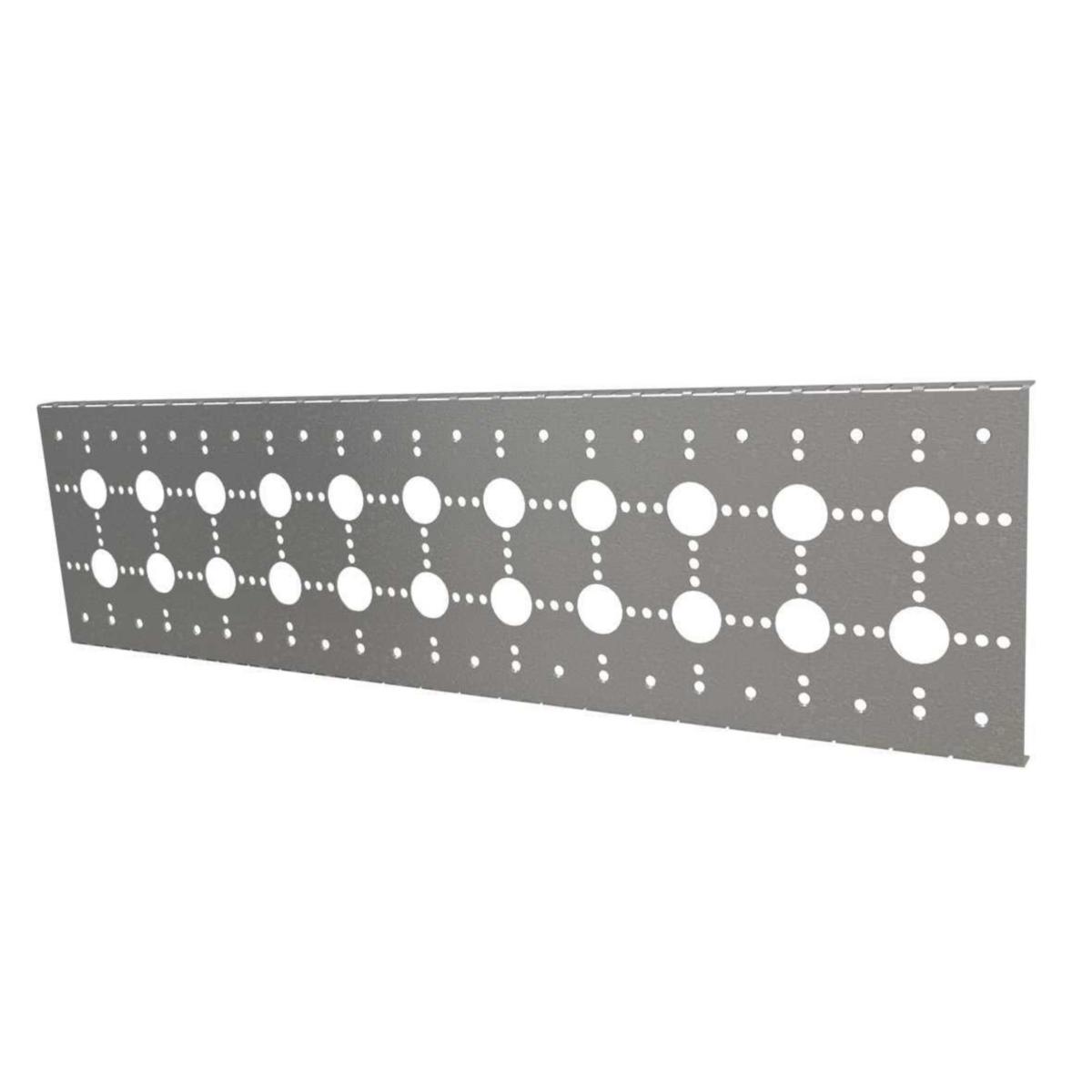

Wall rail ST 60, LK

For LK Wall bracket support Grip. The wall rail is available in two versions with single hollow row c/c 60 mm alternatively double hollow row with c/c 60 mm in both directions. The wall rail has a reinforcement angle at the top and bottom which makes the wall rail very stable. The reinforcement angle can be cut and bent up at the rule. On the reinforcement angle, you can mount LK Drain clamp wall rail ST RSK 188 26 94 to fix a 50mm drain pipe, e.g. under a wash basin. The wall rail has countersunk holes for attachment to wooden and metal rails, which means that the installation will be low LK recommends plaster screws for wooden studs (e.g. Dahl art.nr. 902005, Ahlsell art.nr.: 1531629) and lightweight construction screws for metal studs (e.g. Dahl art.nr.: 430352, Ahlsell art.nr.: 472735).Made of 1.25 mm surface-treated steel plate.
ATTENTION! The wall rail must be supplemented with shorting or Våtrumsvägg 2012 (Säker Vatten wall).
