LK
Sliding sleeve PAL-PEX PressPex Eco, LK

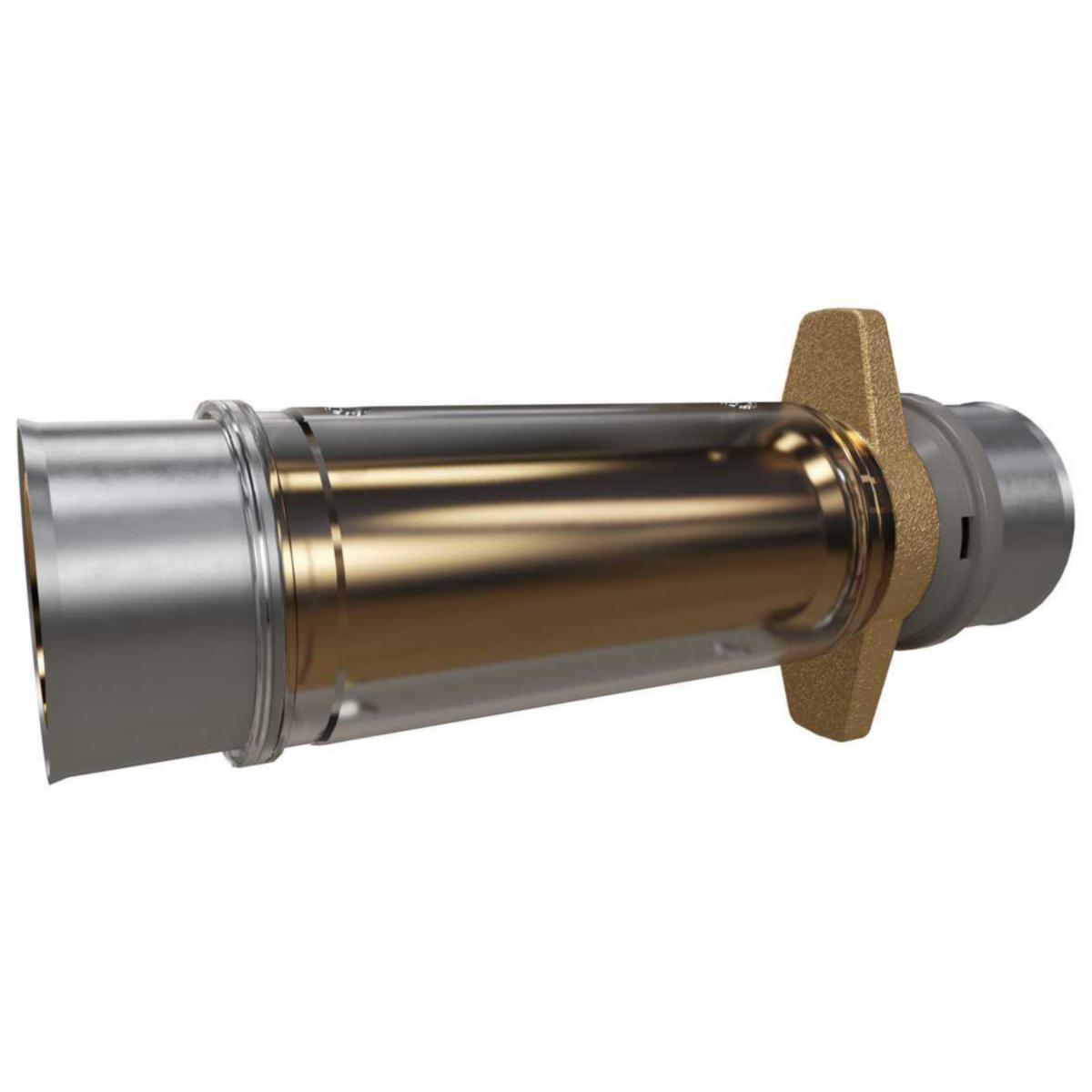

LK PressPex Repair Coupler AX2
Article number: Suppl. article no:
1882669
1882669
to see price and stock
- Article number: 1882669
- Suppl. article no: 1882669
- Ean no: 7331590059844
- Material class PAM12B
Technical data
- Packagin Size: 1 PCS/3 PCS/24 PCS
- Outer pipe diameter connection 1: 20 mm
- Outer pipe diameter connection 2: 20 mm
- Connection 1: Slide sleeve
- Connection 2: Press sleeve
- Material quality connection 1: CuZn38As (CW511L)
- Material quality connection 2: CuZn38As (CW511L)
- Shape: Straight
- Medium temperature (continuous): 0-70 °C
- Contour code connection 1: TH
- Contour code connection 2: TH
- Gastec QA mark: No
- Max. operating pressure at 20 °C: 10 bar
- Reducing: No
- Length: 162 mm
- Surface protection connection 1: Untreated
- Surface protection connection 2: Untreated
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Model: 1-part
- FM quality mark: No
- LPCB quality mark: No
- Material connection 1: Brass
- Material connection 2: Brass
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- With de-aerator: No
- With drain valve: No
- Capped: No
- With sealing rings/gaskets: No
- With buffer stud: Yes
- System specific: Yes
- UL quality mark: No
- ULC quality mark: No
- Main colour fitting: Brass
- Wall thickness connecting pipe, connection 1: 2.5 mm
- Wall thickness connecting pipe, connection 2: 2.5 mm
- Eccentric: No
- REACH Date: 2025-06-25
- GWP-tot (A1-A3): 0,5235 kgCO2e/ST
- REACH Information obligation: No
