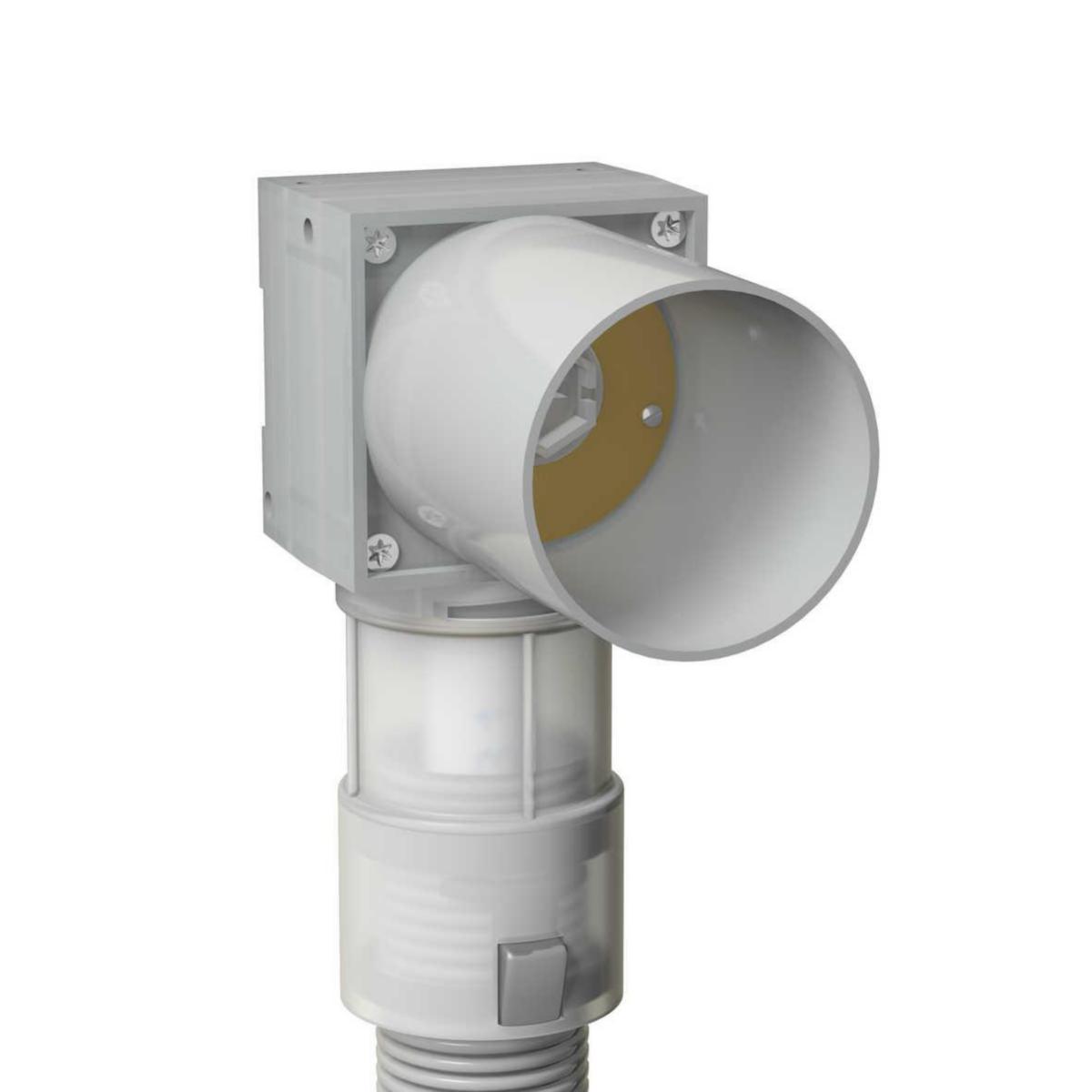

Wall box UNI Push AX V3, LK
LK Wallbox UNI Push AX20 V3
Article number: Suppl. article no:
1882658
1882658
to see price and stock
For pipe outlet from wall with at least 45 mm space in wall. The box has been reinforced and updated to be better mounted on shortening backwards and on the side.
The neck of the wall box has a diameter of 53 mm. Screws for mounting the product are included.
The minimum c / c distance between pipe outlets is 80 mm.
Use LK Connections RSK 188 18 45, 188 18 47, 188 18 48, 188 18 49, 188 18 50, 188 18 51, 188 18 52, 188 18 53, 188 18 54 or 188 18 55 for connection to mixers and taps.
Approved with LK PE-X Universal pipe according to NT VVS 129.
Note that connection with LK PAL Universal Pipe does not meet the requirements in NT VVS 129 on inspection and replaceability. For more information, see the installation instructions.
Coupling with pre-assembled support sleeve for LK PE-X and PAL Universal pipes.
The neck of the wall box has a diameter of 53 mm. Screws for mounting the product are included.
The minimum c / c distance between pipe outlets is 80 mm.
Use LK Connections RSK 188 18 45, 188 18 47, 188 18 48, 188 18 49, 188 18 50, 188 18 51, 188 18 52, 188 18 53, 188 18 54 or 188 18 55 for connection to mixers and taps.
Approved with LK PE-X Universal pipe according to NT VVS 129.
Note that connection with LK PAL Universal Pipe does not meet the requirements in NT VVS 129 on inspection and replaceability. For more information, see the installation instructions.
Coupling with pre-assembled support sleeve for LK PE-X and PAL Universal pipes.
- Article number: 1882658
- Suppl. article no: 1882658
- Ean no: 7331590058618
- Material class PAM120
Technical data
- Packagin Size: 1 ST/50 ST/750 ST
- Outer pipe diameter connection 1: 20 mm
- Nominal diameter connection 2: 1/2 inch (15)
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Model: Single
- Housing material: Polypropylene (PP)
- Outer diameter mantle pipe: 34 mm
- Connection 1: Insert (push-fitting)
- Suitable for concrete installation: No
- Suitable for stud wall: Yes
- With coupling: Yes
- With mounting plate: No
- System specific: Yes
- Material quality coupling: Dezincification resistant brass (DZR)
- REACH contains candidate substances: Bly
- REACH Date: 2023-02-15
- REACH Information obligation: Yes
